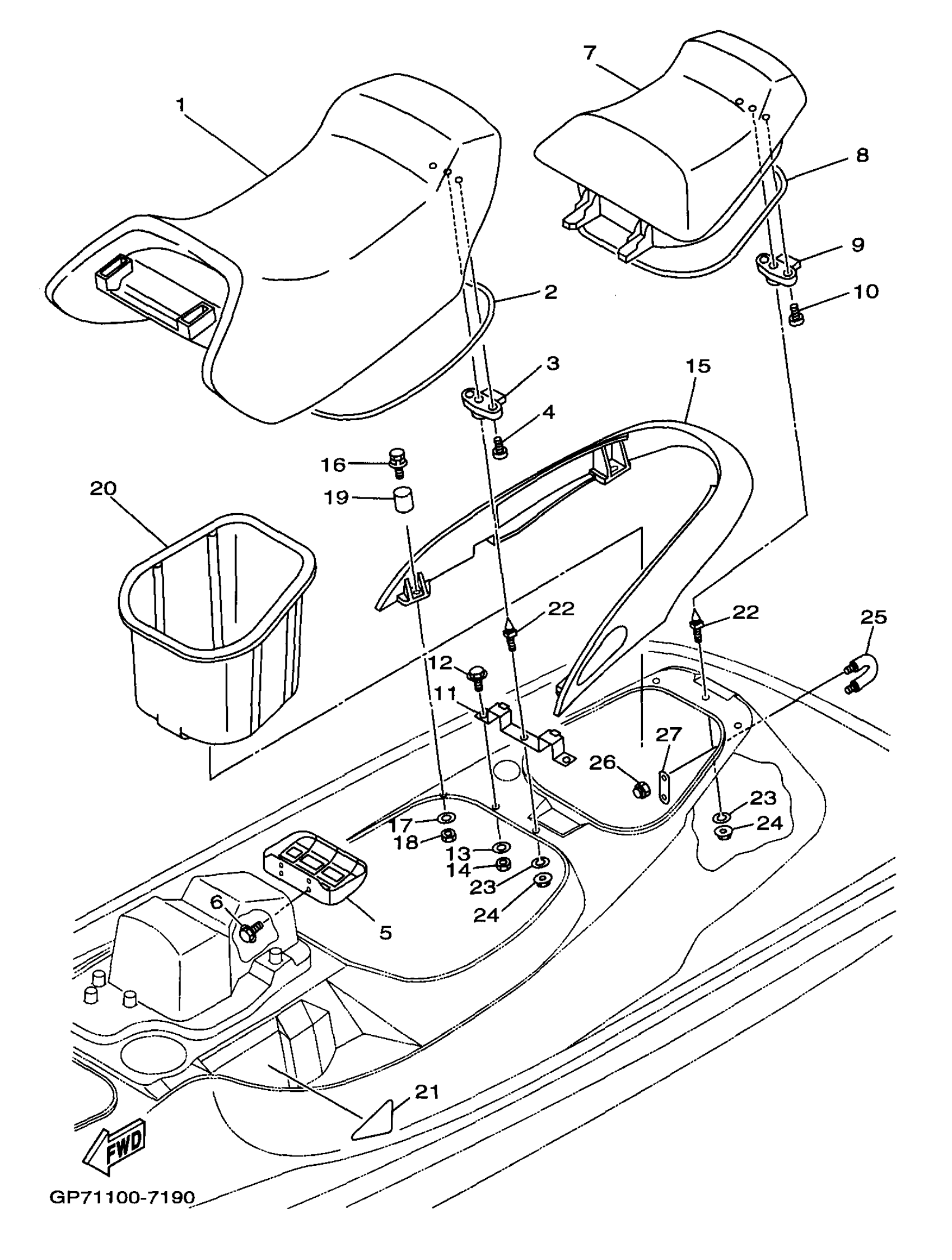

Yamaha GP760V (WAVE RUNNER GP760) 65V 1997 SEAT UNDER LOCKER Diagram

#

Description
Price

1

SINGLE SEAT ASSY (YELLOW)

GP7-U3710-01-00

Unavailable

2

. PACKING

GP7-U2664-00-00

Unavailable

3

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

4

BOLT, WITH WASHER

90119-06808-00

$2.16

5

STAY, SEAT 1

GP7-U378C-00-00

Unavailable

6

BOLT, WITH WASHER

90119-08800-00

$4.09

7

SEAT ASSY 2 (YELLOW)

GP7-U3760-01-00

Unavailable

8

. PACKING 3

GP7-U266B-00-00

Unavailable

9

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STAY, SEAT 2

GP7-6378D-00-00

Unavailable

12

BOLT

97080-10025-00

Unavailable

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

14

NUT, NYLON (FN8)

95720-10300-00

$3.64

15

GRIP, HAND

GP7-6271B-00-00

$203.02

16

BOLT, WITH WASHER(GA7)

90119-08932-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

$2.36

18

. NUT, SELF-LOCKING

95720-08300-00

$3.33

19

COLLAR

90387-08924-00

Unavailable

20

UNDER LOCK ASSY

GP7-U474A-00-00

Unavailable

21

PAD, HATCH 2

GP7-U517N-01-00

Unavailable

22

PIN

GH1-U3774-00-00

$19.38

23

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

24

NUT, NYLON (FN8)

95720-10300-00

$3.64

25

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

26

. NUT, SELF-LOCKING

95720-08300-00

$3.33

27

PLATE A

GP7-U4953-10-00

$3.52
