1997 Yamaha Wave Runner GP760 (GP760V) JET Unit 2 Diagram

← All diagrams

Find the part on the JET Unit 2 diagram for your 1997 Yamaha Wave Runner GP760 (GP760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

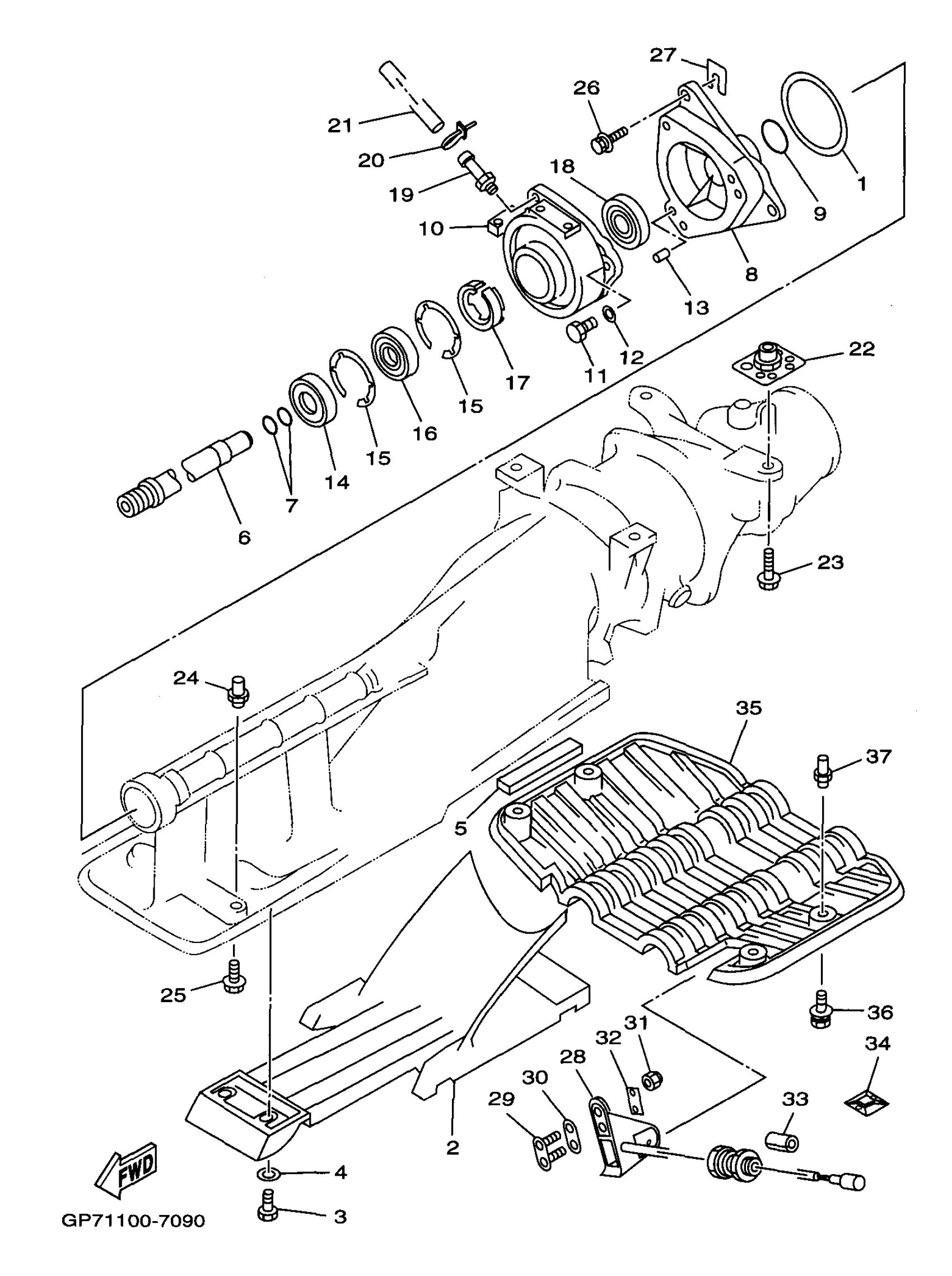

1997 Yamaha Wave Runner GP760 (GP760V) JET Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL

6K8-45127-00-00

1

$15.49

In stock

2

SCREEN, INTAKE

63N-51333-02-94

1
Out of stock

3

BOLT (FJ0)

97080-06018-00

—
Out of stock

4

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

5

. FELT, PACKING

63N-51368-00-00

1
Out of stock

6

SHAFT, COUPLER

65V-51323-00-00

1
Out of stock

7

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

8

HOUSING, BEARING

62G-45331-01-94

1
Out of stock

9

O-RING

93210-35M72-00

1

$11.57

In stock

10

HOUSING, BEARING

61X-G5332-00-00

1

$134.54

In stock

11

BOLT (62G)

97095-08025-00

1

$6.57

In stock

12

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

13

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

14

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

15

CIRCLIP

93430-47M04-00

1

$5.53

In stock

16

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

17

SPACER

63M-51348-00-00

1
Out of stock

18

OIL SEAL

93101-24001-00

—

$31.99

In stock

19

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

HOSE (L445)

90445-09M21-00

—

$22.46

In stock

22

NUT

90179-10925-00

1

$5.08

In stock

23

BOLT, WITH WASHER

90119-109U8-00

1
Out of stock

24

NUT(FJ0)

90179-06947-00

—

$3.98

In stock

25

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

26

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

27

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

27

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

28

SPEED SENSOR

GP7-U8K31-02-00

1
Out of stock

29

BRACKET, SPEED SENSOR

GP7-U8K33-00-00

1
Out of stock

30

PACKING

GP7-U8K34-00-00

1
Out of stock

31

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

32

PLATE, SPEED SENSOR

GP7-U8K35-00-00

1
Out of stock

33

PACKING, HOSE 2

GJ1-U7578-12-00

—

$1.31

In stock

34

BASE, CLAMP

90600-900U6-00

1
Out of stock

35

PLATE 2

GP7-U273B-00-00

1
Out of stock

36

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

37

NUT

90179-08815-00

1
Out of stock
