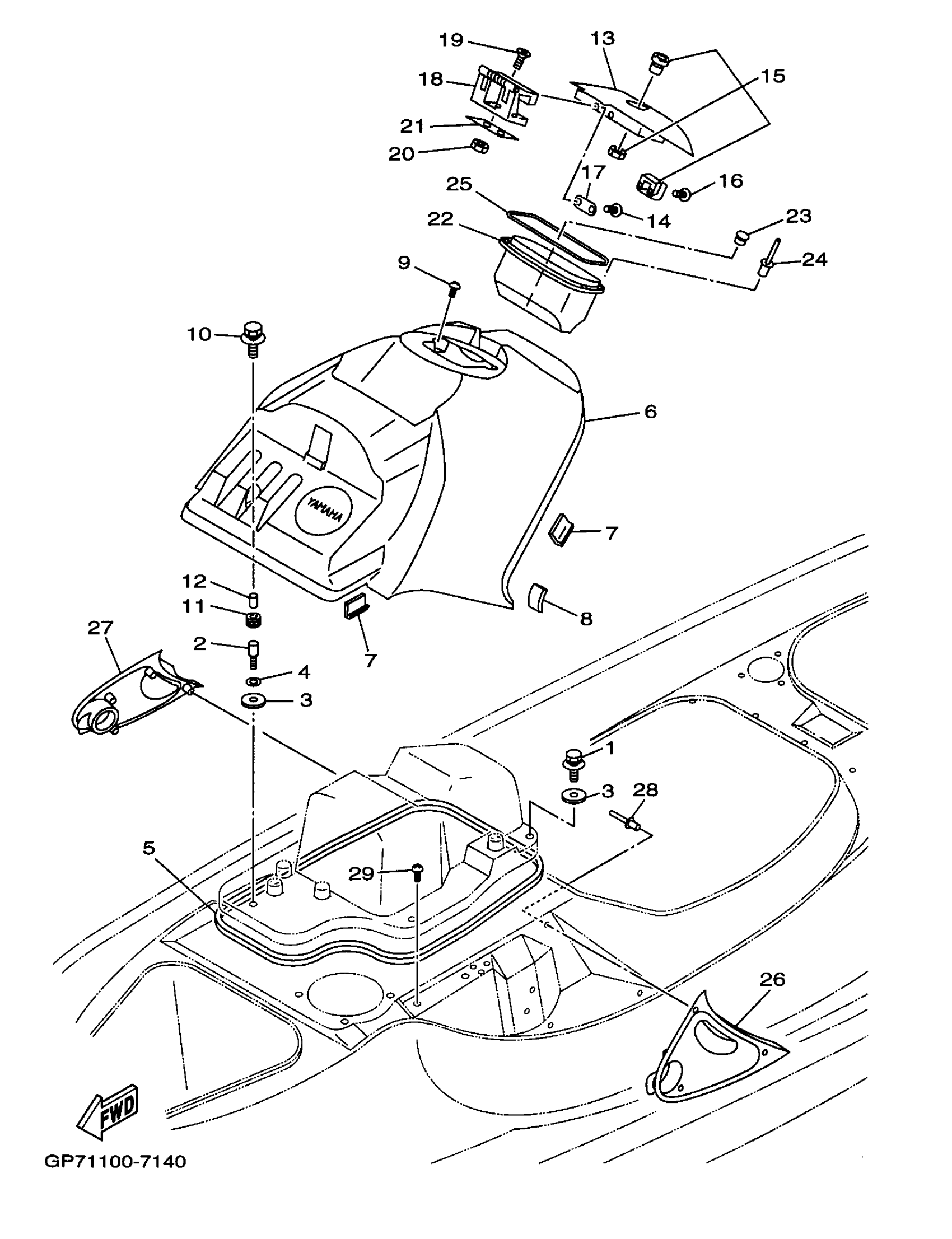

Yamaha GP760V (WAVE RUNNER GP760) 65V 1997 ENGINE HATCH 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08907-00

$5.45

2

BOLT

90109-08913-00

Unavailable

3

WASHER, PLATE

90201-099U1-00

$2.16

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

5

PACKING 7

GP7-U266F-00-00

Unavailable

6

COVER, ENG.HATCH(YELLOW)

GP7-U516N-09-P0

Unavailable

7

TRIM,HATCH 2

GP7-U5116-10-00

Unavailable

8

PAD, HATCH 1

GP7-U517M-01-00

Unavailable

9

SCREW

90149-05984-00

$2.73

10

BOLT,WITH WASHER

90119-06940-00

Unavailable

11

GROMMET

90480-13907-00

Unavailable

12

COLLAR

90387-06920-00

Unavailable

13

LID HATCH (YELLOW)

GP7-U517H-09-P0

Unavailable

14

SCREW, PAN HEAD

98580-05020-00

$1.43

15

LOCK ASSY

GP7-6287A-00-00

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

17

PLATE, HOOD

GP7-U5148-00-00

Unavailable

18

HINGE, HATCH

GP7-6517G-01-00

$39.38

19

SCREW, FLAT HEAD

98780-05020-00

$2.27

20

NUT, FLANGE

95720-05300-00

$1.28

21

PLATE, HATCH 2

GP7-U517S-00-00

Unavailable

22

BOX GLOVE

GP7-U516P-00-00

Unavailable

23

. PLUG

90605-502U2-00

$2.42

24

RIVET, BLIND

90267-489UK-00

Unavailable

25

PACKING CASE

GP7-U519D-02-00

Unavailable

26

COVER, SIDE 1

GP7-U377B-00-00

Unavailable

27

COVER, SIDE 2

GP7-U377C-00-00

Unavailable

28

RIVET, BLIND

90267-489UE-00

Unavailable

29

PLUG

90338-09828-00

Unavailable
