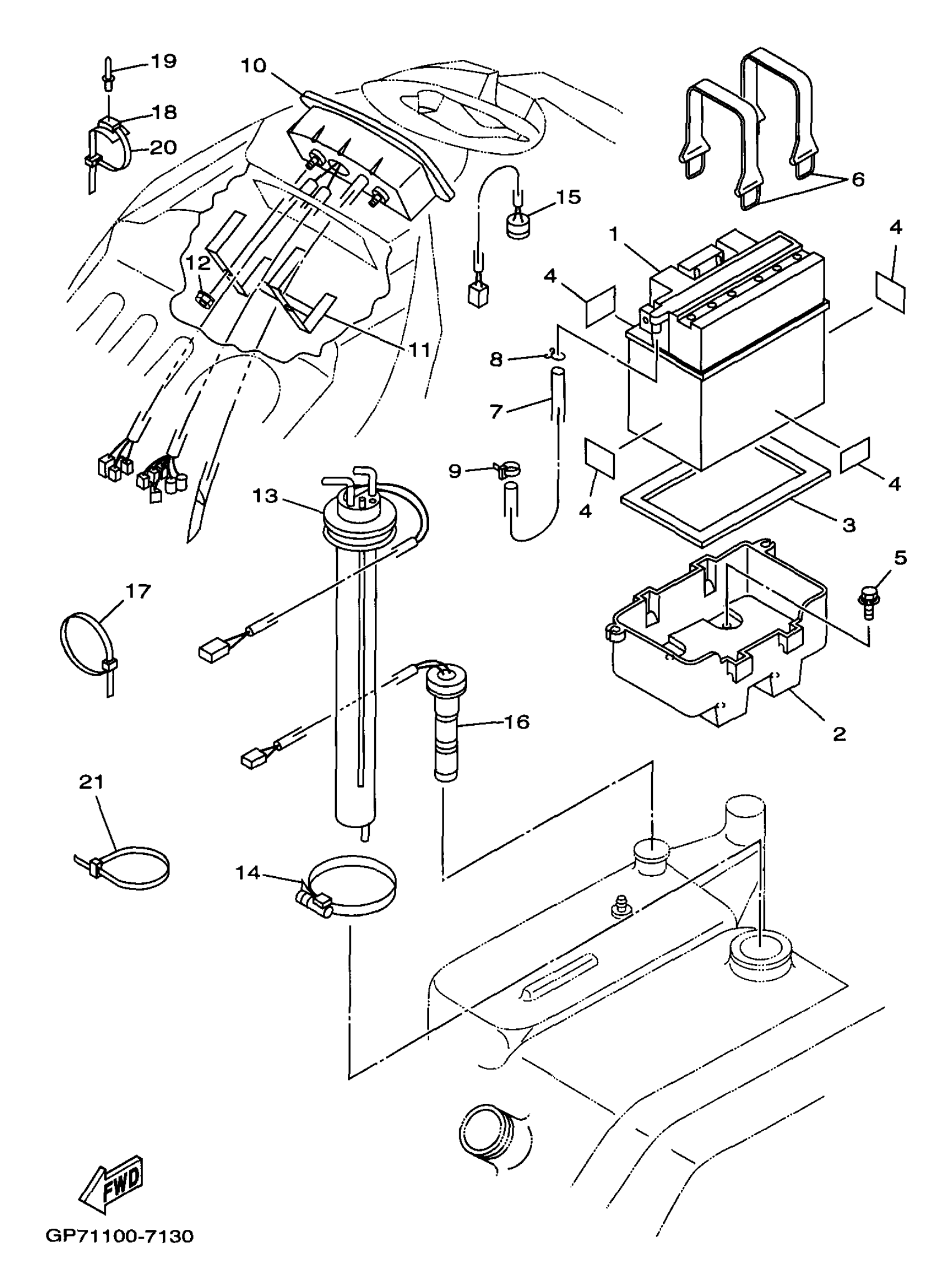

Yamaha GP760V (WAVE RUNNER GP760) 65V 1997 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY

EU0-82110-08-00

Unavailable

2

CASE, BATTERY

GP7-U8211-00-00

Unavailable

3

PAD, BATTERY

F1S-U8221-00-00

$2.75

4

PAD, BATTERY

EU0-U8221-31-00

$1.65

5

BOLT WITH WASHER (EW2)

90119-06920-00

$4.55

6

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

7

HOSE AIR VENT

GP7-U785J-00-00

Unavailable

8

CLIP

90467-089U1-00

$1.44

9

CLAMP

90465-10098-00

$1.68

10

METER ASSY (MPH)

GP7-6820A-06-00

Unavailable

11

BRACKET, METER

GP7-68238-10-00

Unavailable

12

NUT, FLANGE

95720-05300-00

$1.28

13

SENDER, FUEL

F0V-U824B-04-00

$584.60

14

BAND, HOSE 62

90601-162U5-00

$6.17

15

BUZZER

GP7-U8341-00-00

Unavailable

16

SENDER, OIL

F0D-U824C-21-00

Unavailable

17

CLAMP(JN6)

90464-40825-00

Unavailable

18

CLAMP COMP (EU0)

90600-91736-00

Unavailable

19

RIVET, BLIND

90267-48802-00

$1.98

20

BAND (EU0)

90601-20009-00

$6.36

21

BAND

90601-200U1-00

$2.77
