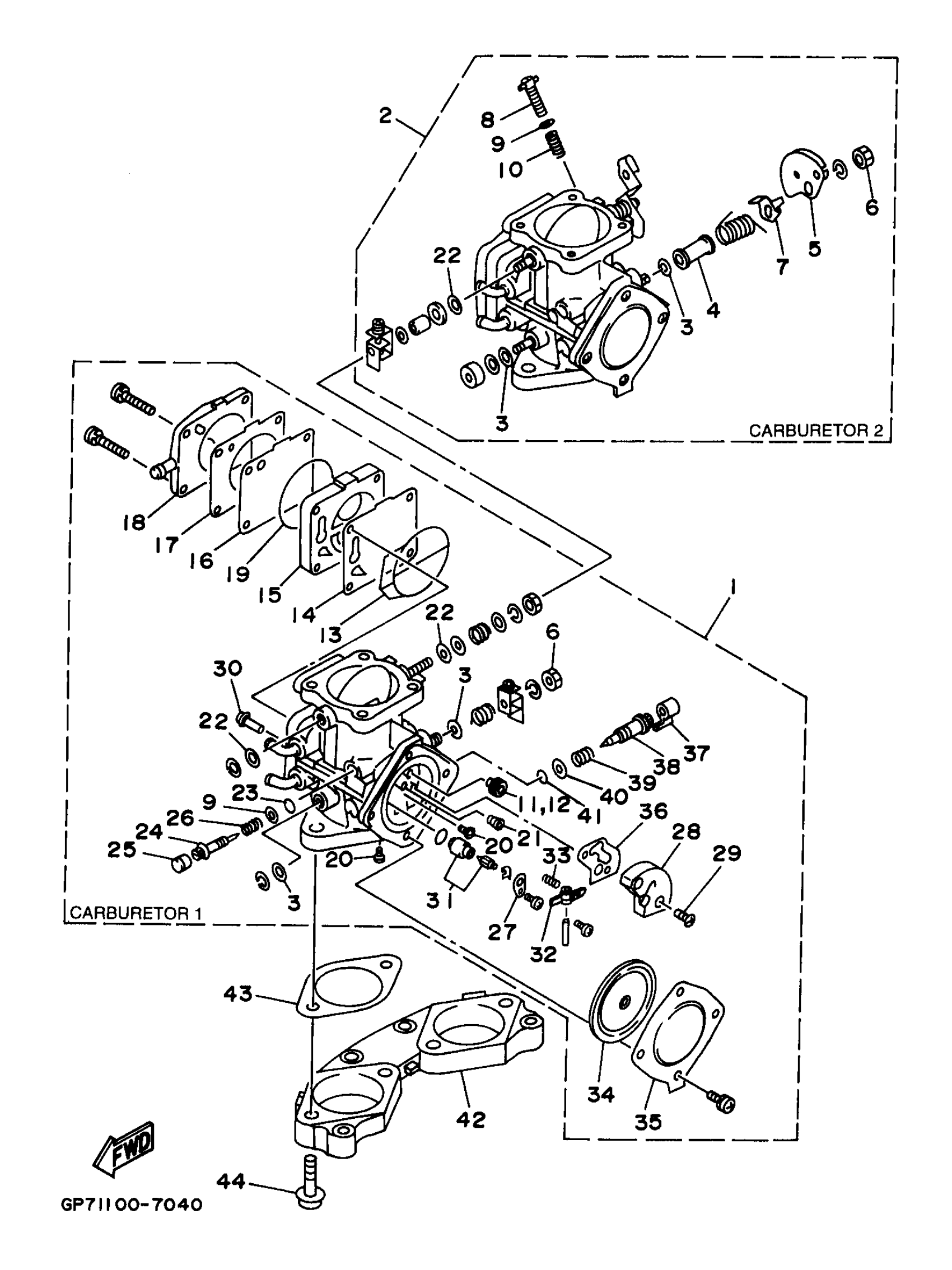

1997 Yamaha Wave Runner GP760 (GP760V) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1997 Yamaha Wave Runner GP760 (GP760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Runner GP760 (GP760V) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

65V-14301-03-00

1
Out of stock

2

CARBURETOR ASSY 2

65V-14302-03-00

1
Out of stock

3

. WASHER

6R7-14596-01-00

1
Out of stock

4

. COLLAR

6K8-14534-10-00

1
Out of stock

5

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

1
Out of stock

6

. NUT

95380-08700-00

1
Out of stock

7

. BRACKET, THROTTLE 1

6K8-14926-10-00

1
Out of stock

8

SCREW,ADJUST

6M6-14521-01-00

1
Out of stock

9

WASHER,NEEDLE

812-14235-00-00

1
Out of stock

10

. SPRING, THROTTLE STOP

47X-14133-00-00

1
Out of stock

11

JET, MAIN (#130)

3G2-14231-26-A0

1
Out of stock

12

JET,MAIN #132.5

3G2-1423A-77-00

1
Out of stock

13

. O-RING

6K8-14564-00-00

1
Out of stock

14

. DIAPHRAGM

6K8-24411-20-00

1
Out of stock

15

BODY 2

6M6-24413-02-00

1
Out of stock

16

. VALVE, CHECK

6K8-24421-10-00

1
Out of stock

17

. GASKET, FUEL PUMP 1

6K8-24431-20-00

1
Out of stock

18

. COVER

6K8-24452-10-00

1
Out of stock

19

. O-RING

6K8-14563-00-00

1
Out of stock

20

. SCREW

6K8-14521-10-00

1
Out of stock

21

JET, MAIN (#115)

830-14231-23-00

—
Out of stock

22

. WASHER

6K8-14597-11-00

1
Out of stock

23

. O-RING

6K8-14562-00-00

1
Out of stock

24

. PLATE, NEEDLE FITTING

6K8-14946-10-00

1
Out of stock

25

. CAP, CARBURETOR

6K8-14471-10-00

1
Out of stock

26

SPRING, THROTTLE VALVE

68V-14331-00-00

1
Out of stock

27

. PLATE

6K8-14527-11-00

1
Out of stock

28

. BODY 1

6R7-24412-01-00

1
Out of stock

29

SCREW, STOP

6K8-14523-12-00

1
Out of stock

30

. STRAINER

6R7-14569-00-00

1
Out of stock

31

NEEDLE

61X-14916-16-00

1
Out of stock

32

. ARM, FLOAT

6K8-14547-01-00

1
Out of stock

33

. SPRING

6R7-14253-00-00

1
Out of stock

34

. DIAPHRAGM, PUMP

6R7-14541-00-00

1
Out of stock

35

. BODY, PUMP 1

6R7-14542-00-00

1
Out of stock

36

. GASKET

6K8-14536-11-00

1
Out of stock

37

. CAP, CARBURETOR

6K8-14481-10-00

1
Out of stock

38

. SCREW, PILOT

6M6-14923-10-00

1
Out of stock

39

. SPRING

6K8-14589-00-00

1
Out of stock

40

WASHER, NEEDLE

822-14235-00-00

—
Out of stock

41

O-RING

583-14561-00-00

—
Out of stock

42

PLATE

64X-14243-00-00

1
Out of stock

43

GASKET

64X-14398-00-00

1
Out of stock

44

BOLT, HOLDING

64X-14162-00-00

1
Out of stock
