1973 Yamaha GP643B Track-Suspension Wheel Diagram

← All diagrams

Find the part on the Track-Suspension Wheel diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

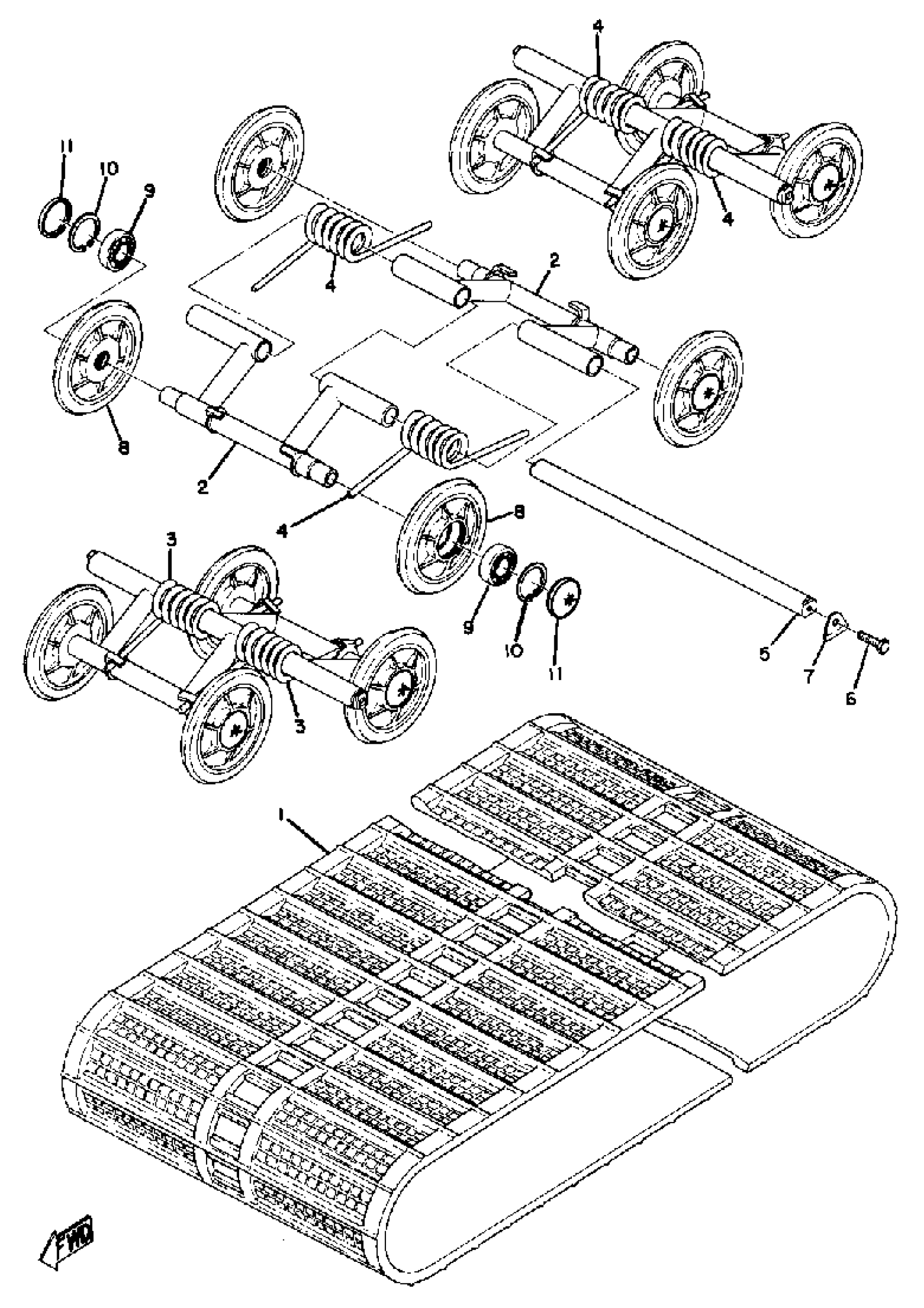

1973 Yamaha GP643B Track-Suspension Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASSEMBLY (847-47110-00)

863-47110-00-00

1
Out of stock

2

ARM, PIVOT 1 (807-47331-00)

807-47331-01-00

1
Out of stock

3

SPRING, TORSION (847-47335-00)

90508-70097-00

1
Out of stock

4

SPRING, TORSION (834-47335-00)

90508-70098-00

1
Out of stock

5

SHAFT, PIVOT

807-47337-00-00

1
Out of stock

6

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

7

WASHER, LOCK

(806-47347-00-00)

1
Out of stock

8

SUSPENSION WHEEL COMP

885-47320-01-00

1

$67.65

In stock

9

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

10

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

11

CAP, WHEEL

818-47317-01-00

1
Out of stock
