1973 Yamaha GP643B Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

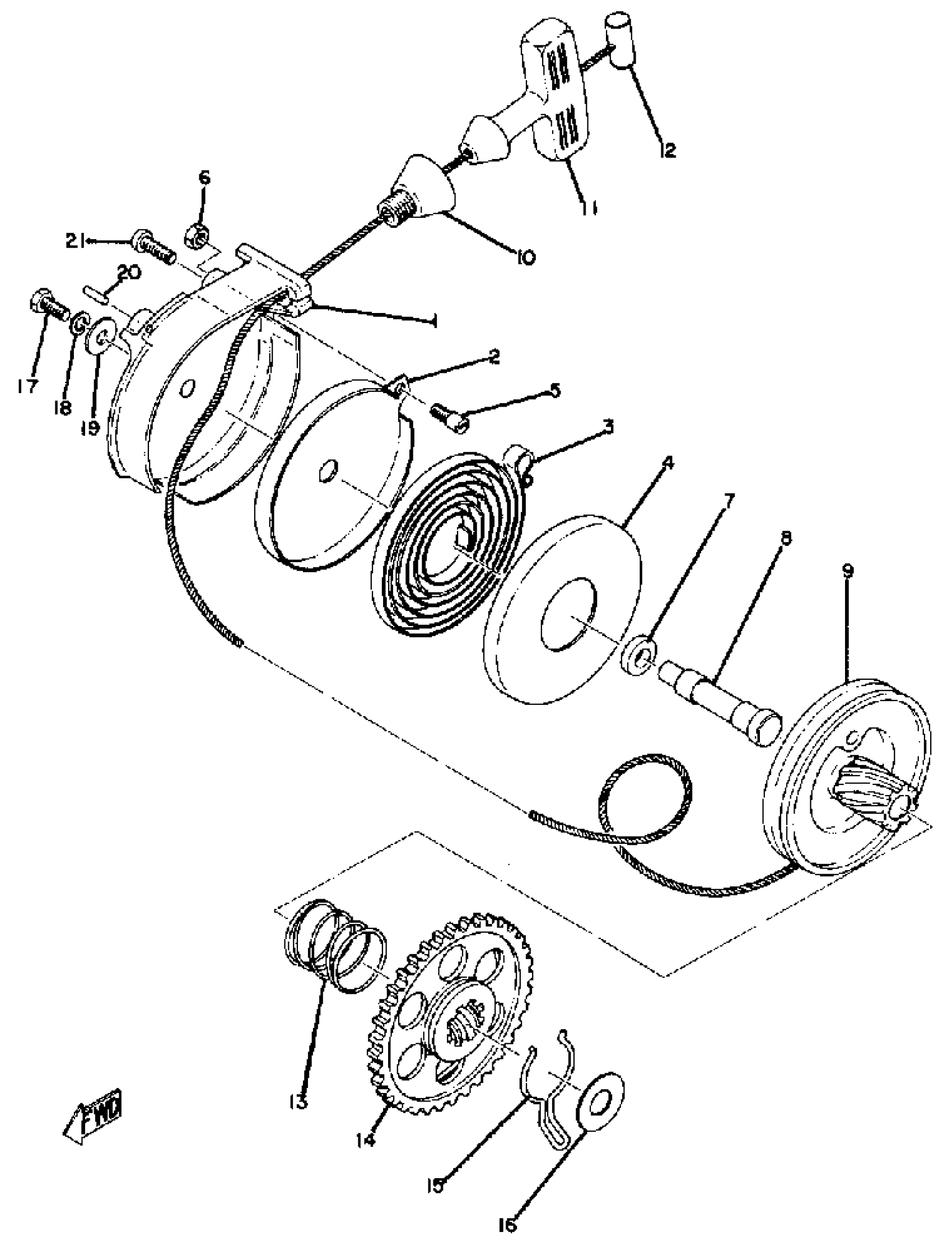

1973 Yamaha GP643B Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSEMBLY

(847-15710-00-00)

1
Out of stock

1

CASE, STARTER

(847-15711-00-00)

1
Out of stock

2

CASE, SPRING R

(834-15769-00-00)

1
Out of stock

3

SPRING, SPIRAL

(90510-08003-00)

1
Out of stock

4

CASE, SPRING L

(834-15766-00-00)

1
Out of stock

5

. PIN, SPEC''L SHAPE (834-15727-00)

90249-06043-00

1
Out of stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

. WASHER, PLATE (847-15719-00)

90201-10134-00

1
Out of stock

8

SHAFT, STARTER

(847-15717-00-00)

1
Out of stock

9

STR HANDLE CMPLT

(847-15750-00-00)

1
Out of stock

10

GUIDE, ROPE

(834-15758-00-00)

1
Out of stock

11

HANDLE, STARTER

(847-15755-00-00)

1
Out of stock

12

CONNECTOR 1

(834-15756-00-00)

1
Out of stock

13

. SPRING, COMPRESSION (847-15734-00)

90501-16108-00

1
Out of stock

14

GEAR, STARTER

(847-15786-00-00)

1
Out of stock

15

. CLIP (847-15799-00)

90468-35040-00

1
Out of stock

16

. WASHER, PLATE (847-15739-00)

90201-14224-00

1
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

20

PIN,DOWEL (137)

93604-14012-00

—

$1.88

In stock

21

SCREW, PAN

98517-06020-00

—
Out of stock
