1973 Yamaha GP643B Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1973 Yamaha GP643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

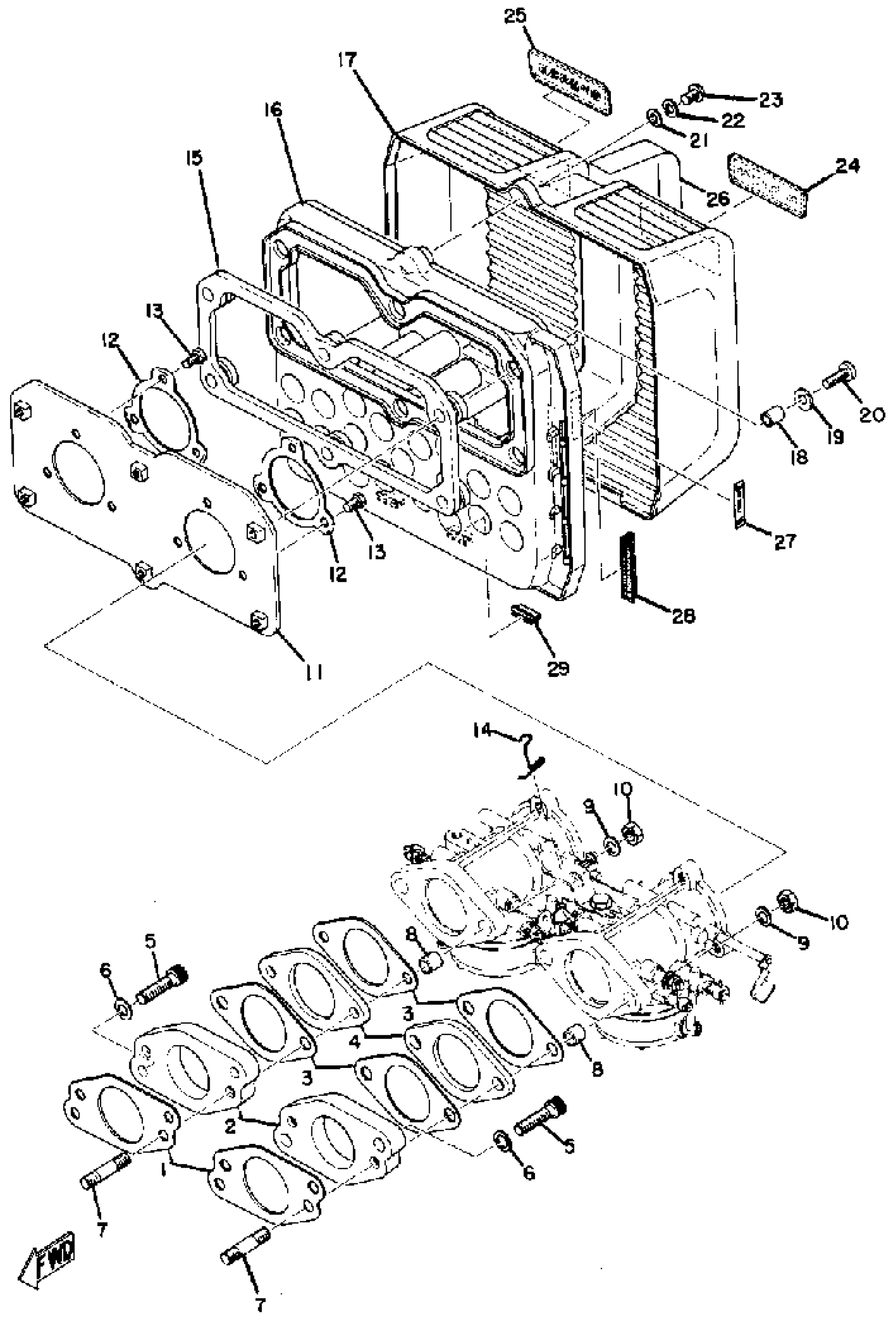

1973 Yamaha GP643B Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

835-13556-00-00

1
Out of stock

2

JOINT, CARBURETOR

(835-13565-00-00)

1
Out of stock

3

GASKET, MANIFOLD

812-13556-09-00

1
Out of stock

4

JOINT, CARBURETOR

(835-13585-00-00)

1
Out of stock

5

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

BOLT, STUD

(90116-08045-00)

1
Out of stock

8

SPACER

(810-13576-00-00)

1
Out of stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

PLATE

(847-14477-00-00)

1
Out of stock

12

WASHER, SPEC''L SHAP (847-14475-00)

90209-45075-00

1
Out of stock

13

BOLT (661)

97013-06012-00

1

$4.71

In stock

14

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

15

DAMPER

(844-14492-00-00)

1
Out of stock

16

SILENCER, INTAKE 1

(844-14431-00-00)

1
Out of stock

17

SILENCER, INTAKE 2

(844-14441-00-00)

1
Out of stock

18

COLLAR (J10)

90387-06026-00

—

$6.91

In stock

19

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

20

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

21

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

SCREW, BINDING

98907-06010-00

—

$1.49

In stock

24

EMBLEM 1

(844-77351-00-00)

1
Out of stock

25

EMBLEM 1

(847-77451-00-00)

1
Out of stock

26

EMBLEM 9

(844-77359-00-00)

1
Out of stock

27

INDICATOR, CHOKE

(847-77455-00-00)

1
Out of stock

28

DAMPER 1

(844-14425-00-00)

1
Out of stock

29

DAMPER 2

(844-14426-00-00)

1
Out of stock
