1972 Yamaha GP643 Engine Bracket Diagram

← All diagrams

Find the part on the Engine Bracket diagram for your 1972 Yamaha GP643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

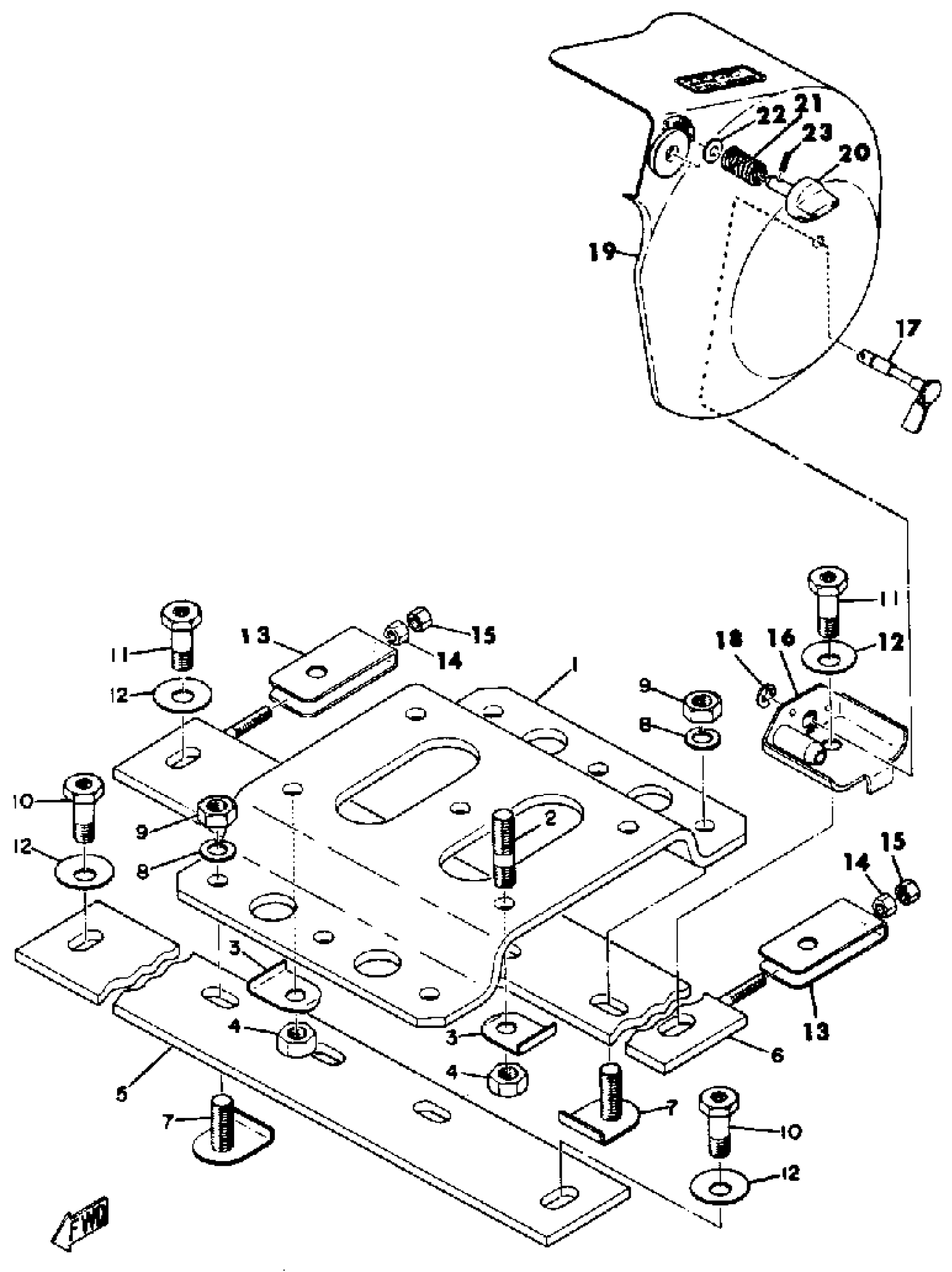

1972 Yamaha GP643 Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

(834-21411-00-00)

1
Out of stock

2

BOLT, STUD

(90116-10084-00)

1
Out of stock

3

WASHER, LOCK

(90215-10076-00)

1
Out of stock

4

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

5

BRACKET, ENGINE 2

(835-21419-00-00)

1
Out of stock

6

BRACKET, ENGINE 3

(835-21429-00-00)

1
Out of stock

7

BOLT, ENG MNTNG 4

(834-21484-00-00)

1
Out of stock

8

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

9

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

10

BOLT, DOME HEAD

(90106-10015-00)

1
Out of stock

11

BOLT

(90101-10057-00)

1
Out of stock

12

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

13

PLATE, ENGINE ADJUSTING

(834-21475-00-00)

1
Out of stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

BRACKET 1

(829-77315-00-00)

1
Out of stock

17

ARM, FITTING

(829-77314-00-00)

1
Out of stock

18

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

19

GUARD, DRIVE

(829-77311-00-00)

1
Out of stock

20

KNOB

(829-77324-00-00)

1
Out of stock

21

SPRING 1

806-77325-00-00

1
Out of stock

22

WASHER, PLATE

90201-08104-00

1
Out of stock

23

PIN SPRING(664)

91690-40018-00

1

$3.23

In stock
