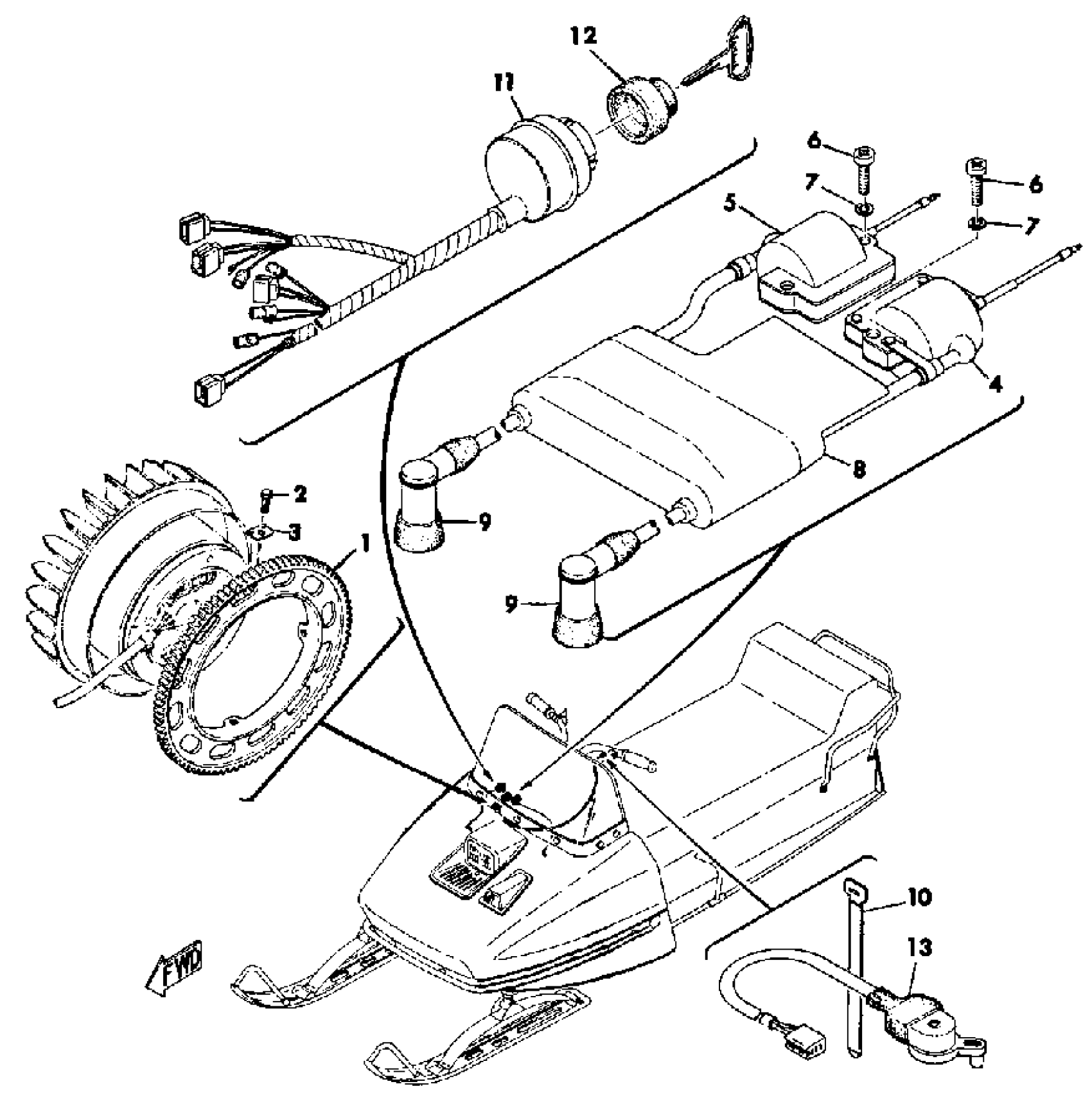

Find the part on the Electrical diagram for your 1972 Yamaha GP643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP643 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, RING

(834-81891-00-00)

1
Out of stock

2

BOLT, DOME HEAD

(90106-08004-00)

1
Out of stock

3

WASHER, LOCK

(90215-08071-00)

1
Out of stock

4

IGNITION COIL ASSEMBLY

(810-82310-40-00)

1
Out of stock

5

IGNITION COIL ASSEMBLY

(834-82320-40-00)

1
Out of stock

6

SCREW, PAN

98517-06020-00

1
Out of stock

7

WASHER, SPRING

92907-06100-00

1
Out of stock

8

COVER, IGNITN COIL

(810-82314-00-00)

1
Out of stock

9

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

10

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

11

MAIN SWITCH ASSEMBLY

(821-82508-20-00)

1
Out of stock

12

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

13

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock
