1977 Yamaha GP440A Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1977 Yamaha GP440A, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

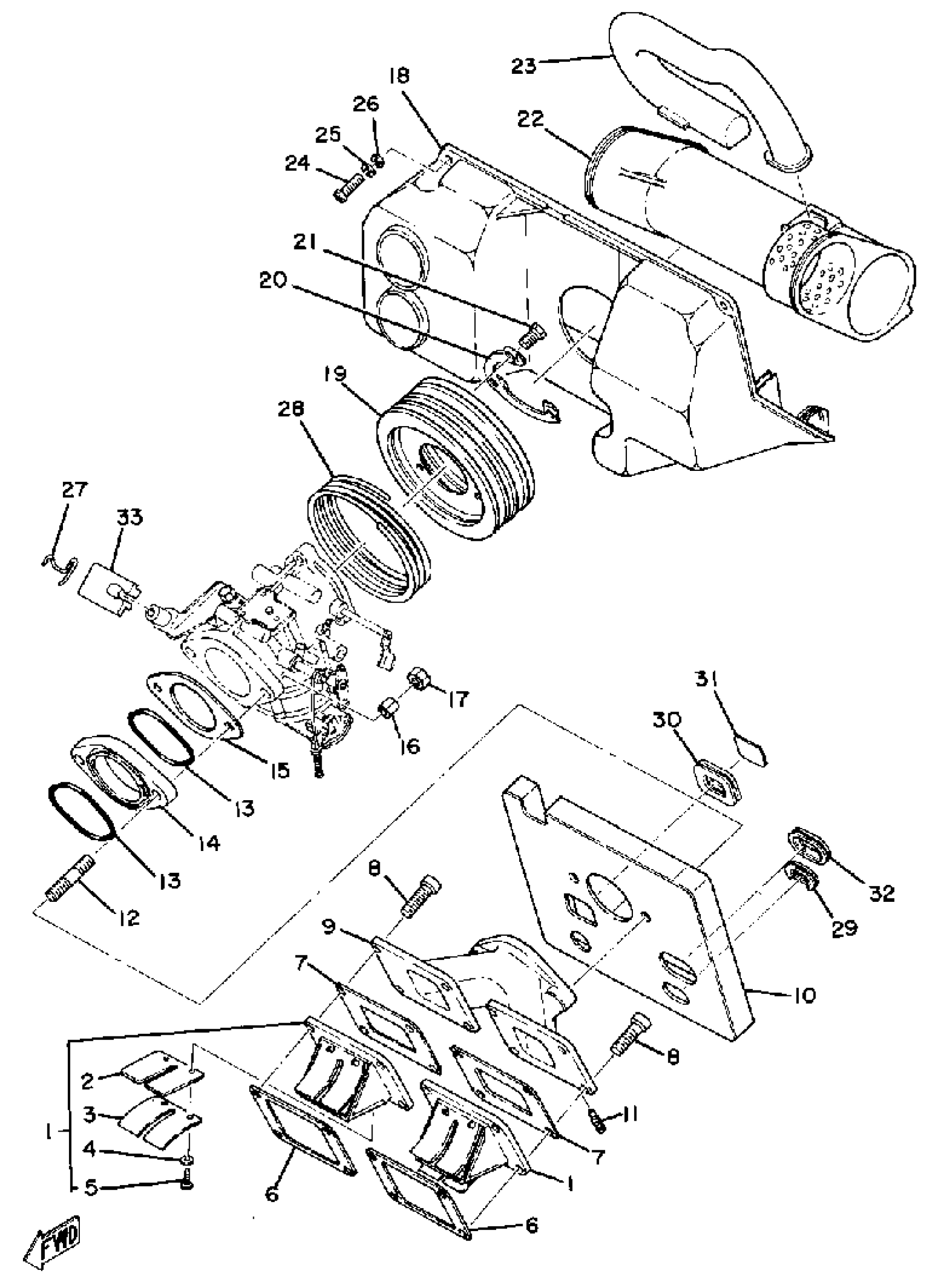

1977 Yamaha GP440A Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

10V-13610-01-00

1

$137.01

In stock

1

GASKET

810-13566-09-00

1
Out of stock

2

REED VALVE 1

10V-13613-01-00

1

$25.35

In stock

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

4

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

5

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

6

GASKET, VALVE SEAT

3TT-13621-00-00

1

$17.31

In stock

7

GASKET

866-13563-09-00

1
Out of stock

8

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

9

NO LONGER AVAILABLE

885-13565-00-00

1
Out of stock

10

GASKET

8E4-13567-00-00

1
Out of stock

11

NOZZLE

824-13552-00-00

1
Out of stock

12

BOLT, STUD

(90116-08051-00)

1
Out of stock

13

O-RING

93210-53291-00

1
Out of stock

14

JOINT, CARBURETOR

8A0-13565-00-00

1
Out of stock

16

SPACER

(810-13576-00-00)

1
Out of stock

17

. NUT

95380-08700-00

1

$3.07

In stock

18

SILENCER, INTAKE 1

(8A1-14431-00-00)

1
Out of stock

19

PLATE

(8A1-14477-00-00)

1
Out of stock

20

WASHER

865-14475-01-00

1
Out of stock

21

BOLT (661)

97013-06012-00

—

$4.71

In stock

22

PIPE

(8E4-14419-00-00)

1
Out of stock

23

PIPE

8E4-14465-00-00

1
Out of stock

24

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

25

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

26

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

27

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

28

SPRING, COMPRESSION

(90501-30363-00)

1
Out of stock

29

GROMMET

(90480-01210-00)

1
Out of stock

30

GROMMET

(8E4-14435-00-00)

1
Out of stock

31

PLATE

(8E4-14477-00-00)

1
Out of stock

32

GROMMET

(8E4-14445-00-00)

1
Out of stock

33

SEAL

(8E4-14452-00-00)

1
Out of stock
