1976 Yamaha GP440 Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1976 Yamaha GP440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

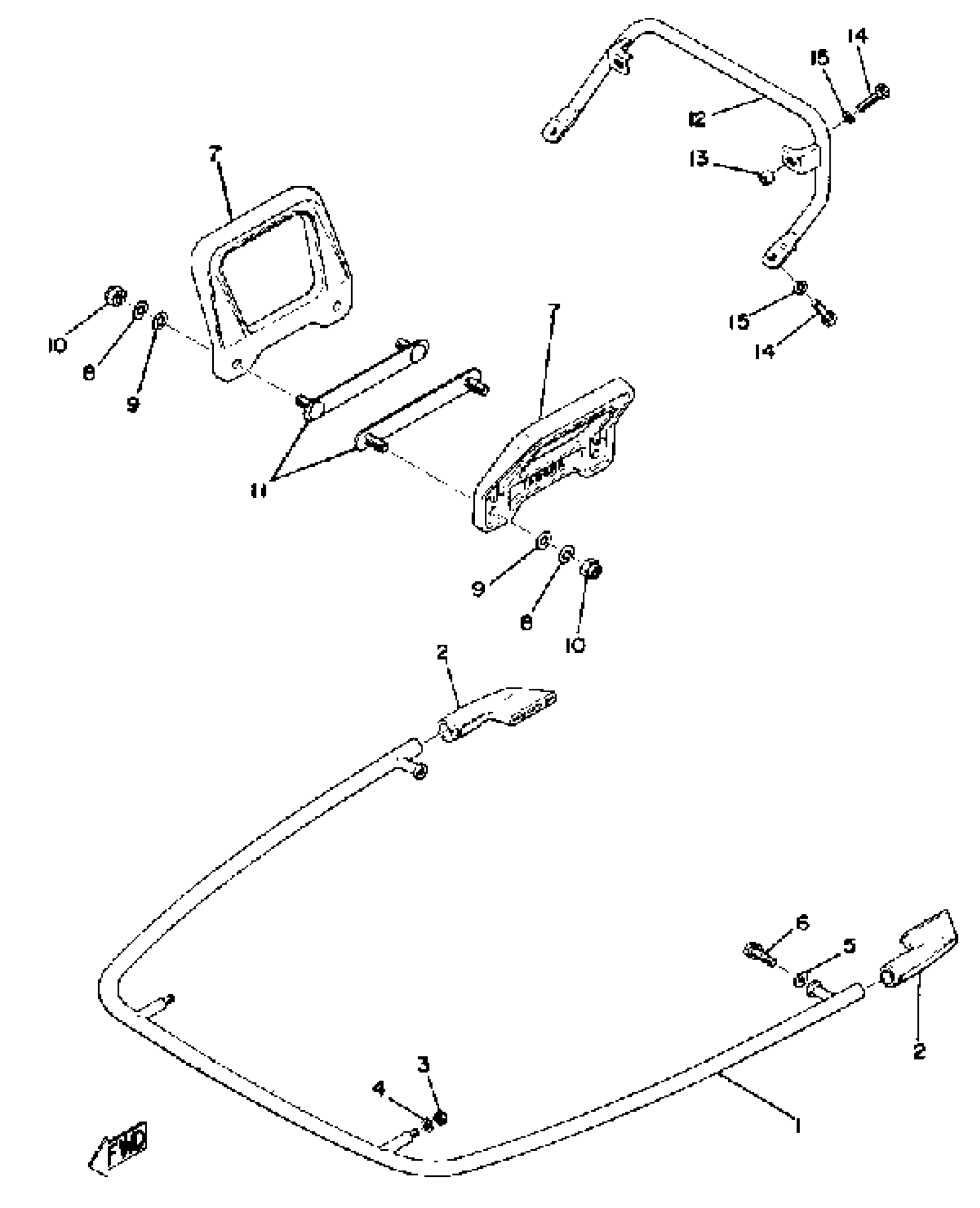

1976 Yamaha GP440 Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

841-77510-00-00

1
Out of stock

2

END, BUMPER

838-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLATE

(90201-08456-00)

1
Out of stock

6

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

7

GRIP, ASSIST

FJ0-63771-30-00

1

$102.49

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

10

NUT, CROWN

95303-08800-00

1

$7.52

In stock

11

BRKT, ASSIST GRIP

898-77576-00-00

1
Out of stock

12

BUMPER, REAR 1

(8A1-77541-00-00)

1
Out of stock

13

COLLAR

90387-06106-00

1

$5.43

In stock

14

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
