1972 Yamaha GP433SS Seat Diagram

← All diagrams

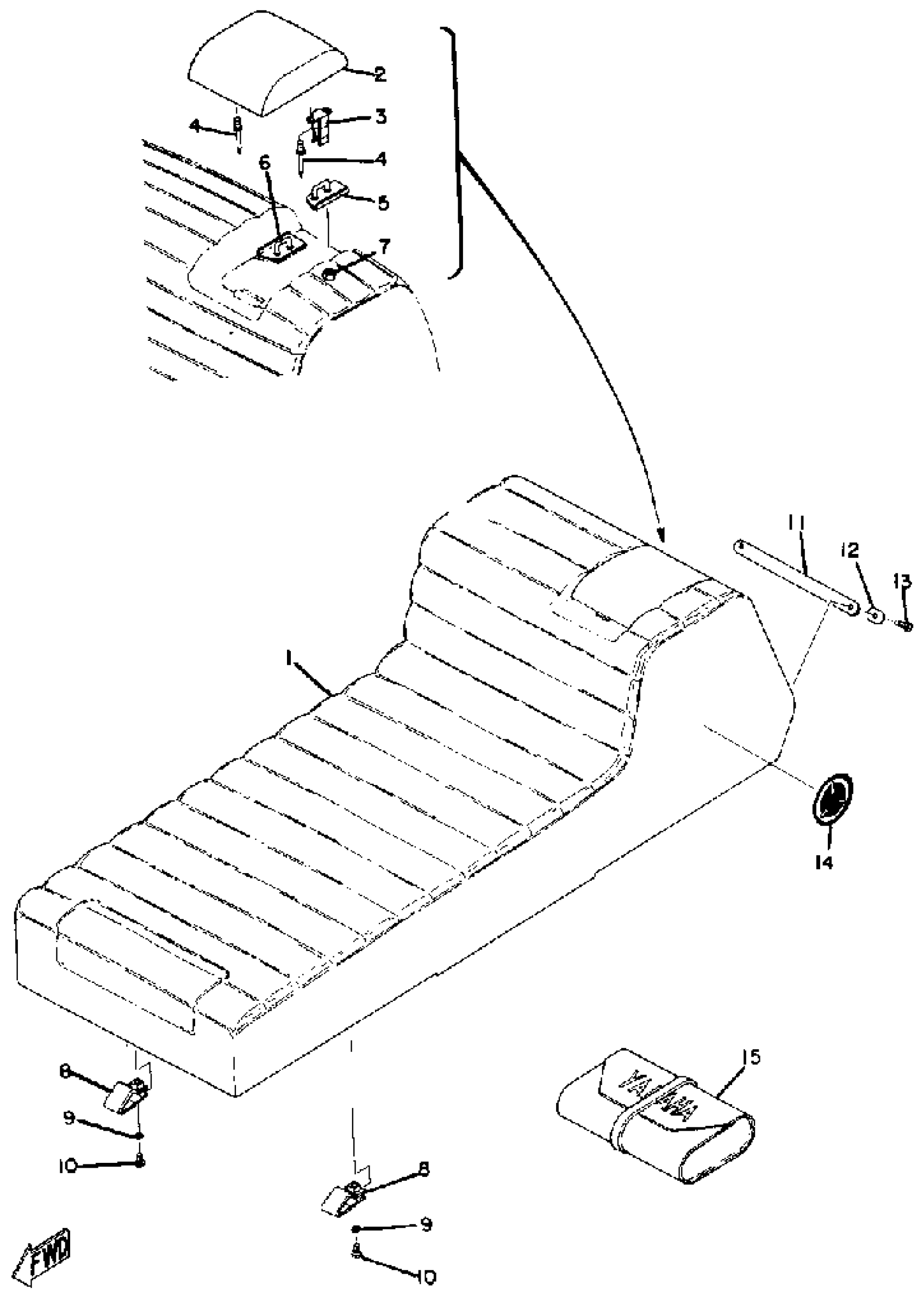

Find the part on the Seat diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP433SS Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASS''Y

821-24730-00-00

1
Out of stock

1

. COVER, DOUBLE SEAT

821-24731-00-00

1
Out of stock

2

LID, DOUBLE SEAT

821-24765-00-00

1
Out of stock

3

. SPRING

821-24794-00-00

1
Out of stock

4

. RIVET (821-24789-00)

90267-32016-00

1
Out of stock

5

. PIN, LEFT

821-24793-00-00

1
Out of stock

6

. PIN, RIGHT

821-24784-00-00

1
Out of stock

7

NUT(650)

95380-06700-00

1

$6.17

In stock

8

PLATE, SEAT FITTING

809-24744-00-00

1
Out of stock

9

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SPECIAL

813-24746-00-00

1
Out of stock

12

WASHER, LOCK (813-24736-00)

90215-07064-00

1
Out of stock

13

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

14

EMBLEM 2

821-77352-00-00

1
Out of stock

15

TOOL ASS''Y

821-28100-10-00

1
Out of stock
