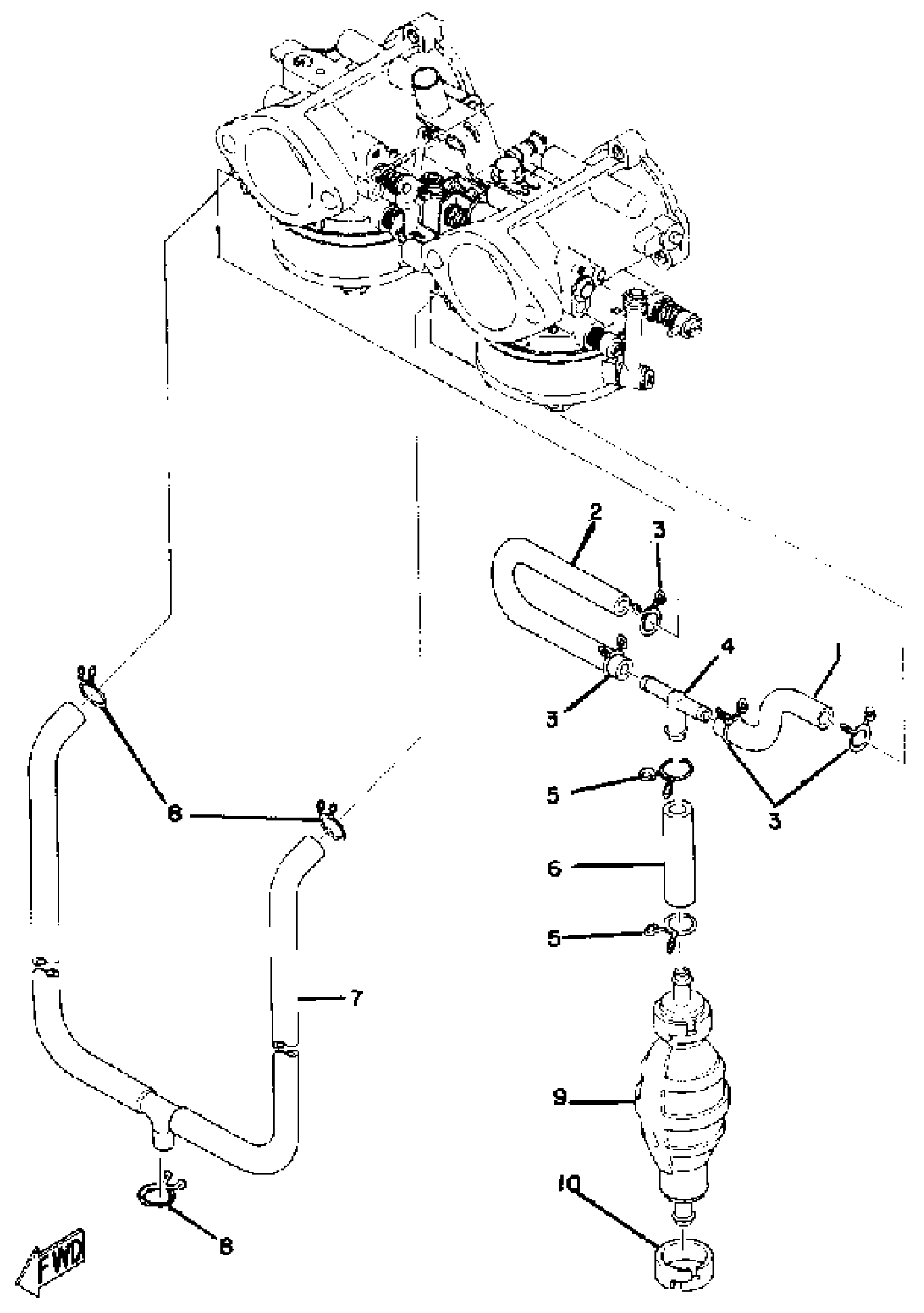

Find the part on the Piping diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP433SS Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 3 (5-86)

813-24313-00-00

1
Out of stock

2

PIPE 7

807-24317-00-00

1
Out of stock

3

CLIP (8L2)

90467-08017-00

1

$7.51

In stock

4

JOINT, PIPE (1)

807-24376-00-00

1

$4.68

In stock

5

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

6

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

7

PIPE 5

828-24315-00-00

1
Out of stock

8

CLIP

90467-090A2-00

1

$2.51

In stock

9

PRIMER PUMP ASSEMBLY

810-24360-00-00

1
Out of stock

10

BAND, FUEL PIPE 3

601-24353-00-00

1
Out of stock
