1972 Yamaha GP433SS Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1972 Yamaha GP433SS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

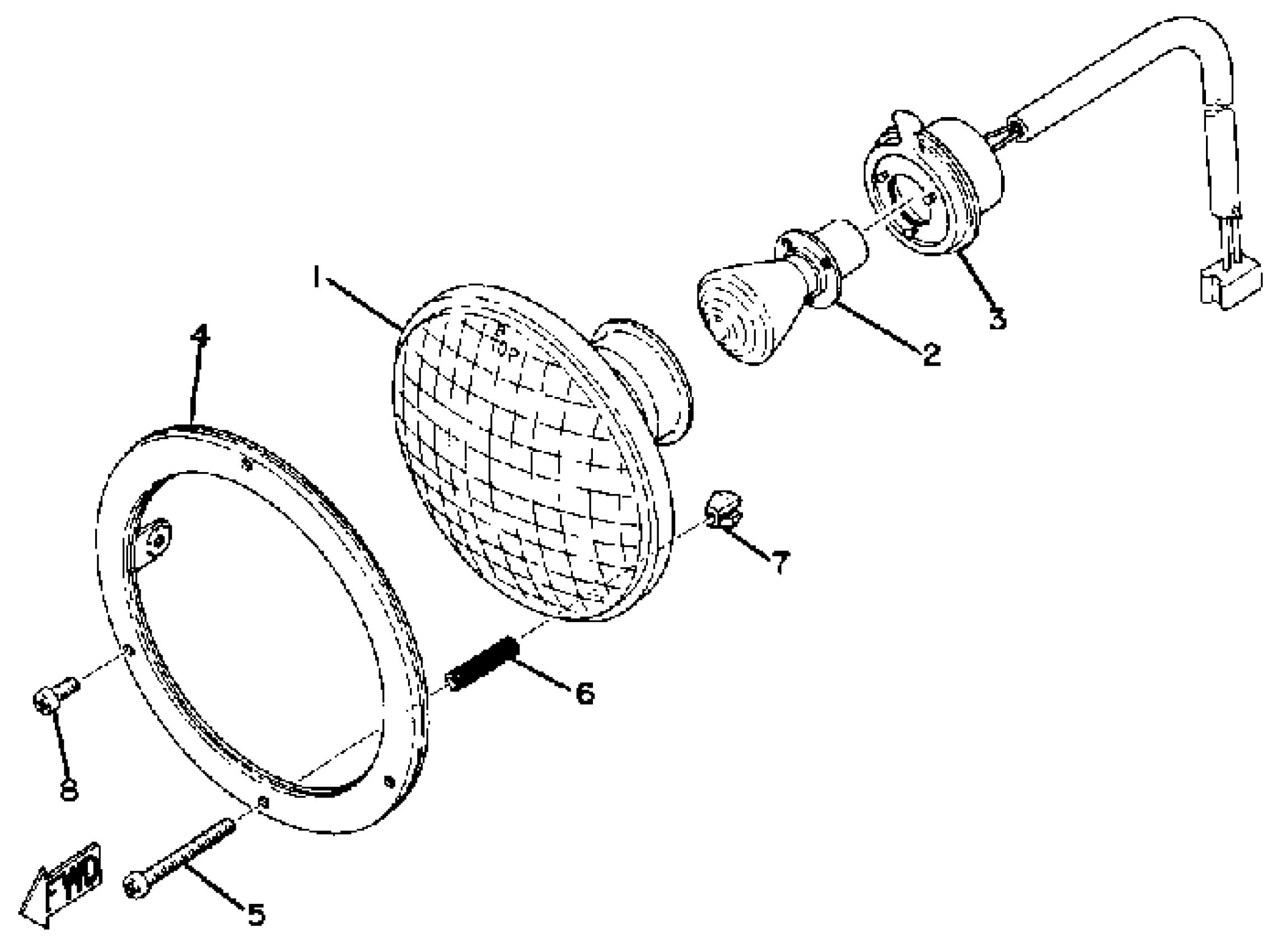

1972 Yamaha GP433SS Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. LENS ASSEMBLY

817-84320-00-00

1
Out of stock

1

HEADLIGHT UNIT ASSEMBLY

821-84310-00-00

1
Out of stock

2

. BULB, HL12V35/35W

183-84314-60-00

1
Out of stock

3

. SOCKET

821-84312-00-00

1
Out of stock

4

. RIM, HEAD LAMP

817-84315-00-00

1
Out of stock

5

. SCREW, RIM ADJUSTING

817-84331-00-00

1
Out of stock

6

. SPRING, ADJUST SCREW

817-84332-00-00

1
Out of stock

7

. NUT, ADJUSTING

817-84334-00-00

1
Out of stock

8

SCREW, PAN HEAD

98517-04020-00

1

$6.18

In stock
