1974 Yamaha GP433F Pump Drive - Gear Diagram

← All diagrams

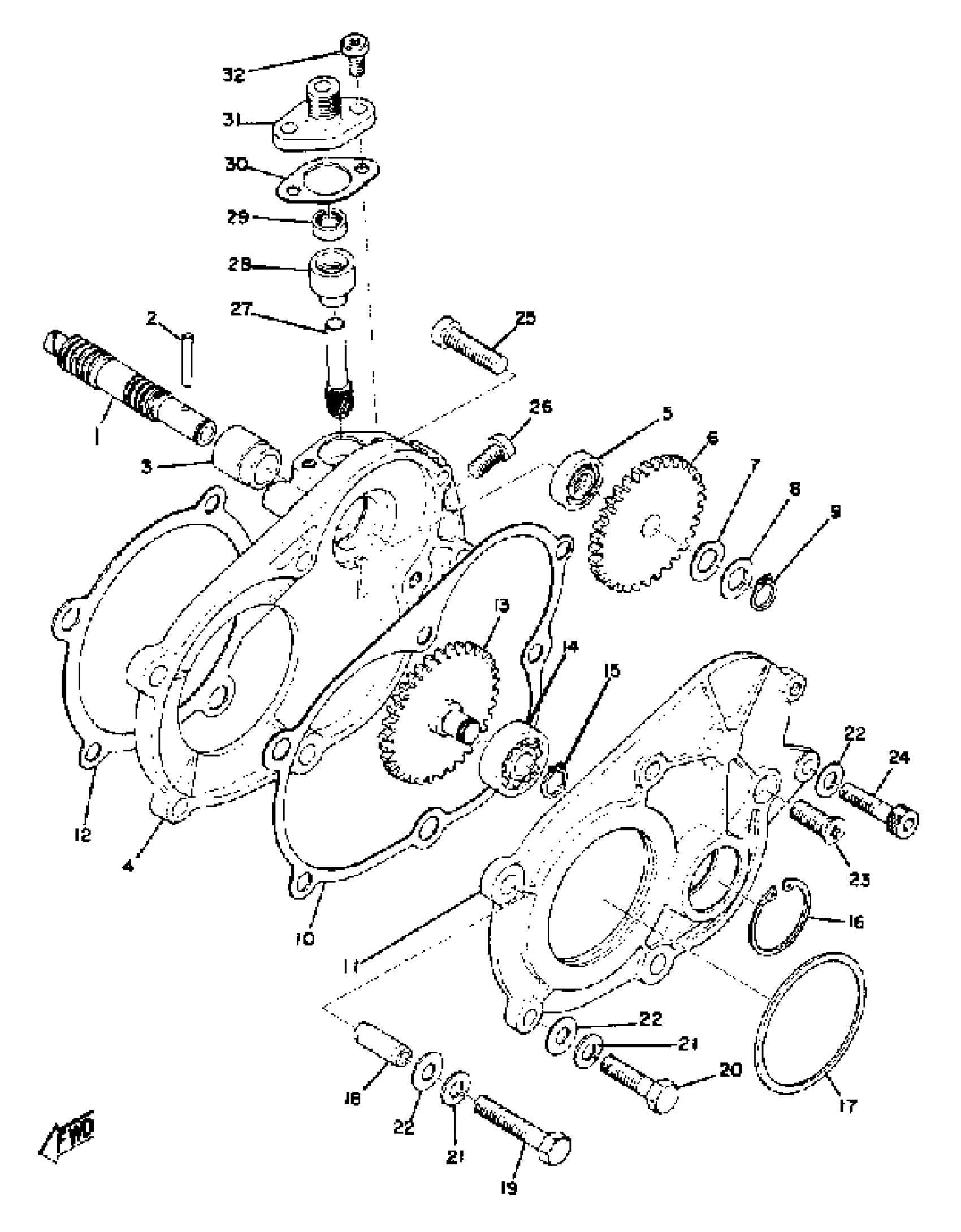

Find the part on the Pump Drive - Gear diagram for your 1974 Yamaha GP433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP433F Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

866-13175-00-00

—

$28.00

In stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(8E3-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

GASKET 2

859-15466-09-00

1
Out of stock

11

COVER, OIL PUMP R

838-15426-00-00

1
Out of stock

12

GSKT,O PMPCVR

838-15456-09-00

1
Out of stock

13

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

14

—

$29.35

In stock

15

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

16

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

17

SEAL, GREASE

(838-13119-00-00)

1
Out of stock

18

PIN, DOWEL

91810-18022-00

1
Out of stock

19

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

SCREW, FLAT

98707-06014-00

—
Out of stock

24

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

25

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

26

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

27

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

28

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

29

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock

30

GASKET

821-17818-02-00

—

$5.66

In stock

31

CAP, HOUSING

821-17819-00-00

1
Out of stock

32

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock
