1974 Yamaha GP433F Frame Diagram

← All diagrams

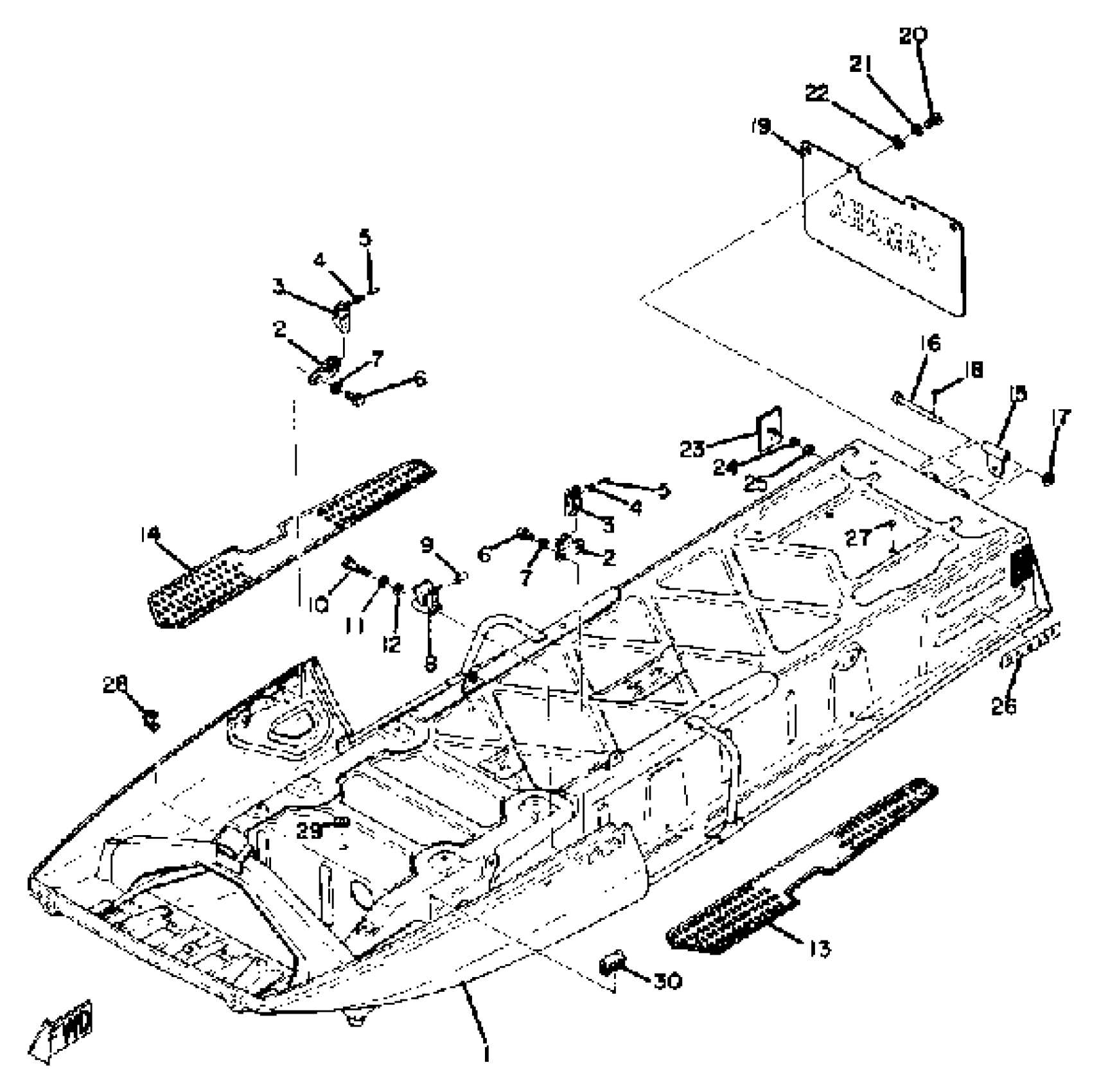

Find the part on the Frame diagram for your 1974 Yamaha GP433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP433F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(865-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

UNAVAILABLE IN PRICE BOOK (214-24727-00)

90249-04058-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

CLAMP

90464-09006-00

1
Out of stock

9

STOPPER

821-77188-01-00

1
Out of stock

10

BOLT, HEXAGON

97017-06045-00

1
Out of stock

11

WASHER, SPRING

92907-06100-00

1
Out of stock

12

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

13

COVER, FOOTREST

878-27413-00-00

1
Out of stock

14

COVER, FOOTREST

878-27423-00-00

1
Out of stock

15

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

16

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

PIN, COTTER

91490-25020-00

—

$2.94

In stock

19

FLAP

865-77595-00-00

1
Out of stock

20

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE (J10)

90201-06697-00

—

$6.17

In stock

23

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

NUT U (861)

90185-06040-00

—

$5.72

In stock

26

EMBLEM 4

(866-77354-00-00)

1
Out of stock

27

COVER, NUT

(867-21969-00-00)

1
Out of stock

28

BAND

(841-82591-00-00)

1
Out of stock

29

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

30

STRIP, WEATHER 1

(839-77161-00-00)

1
Out of stock
