1973 Yamaha GP433B Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1973 Yamaha GP433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

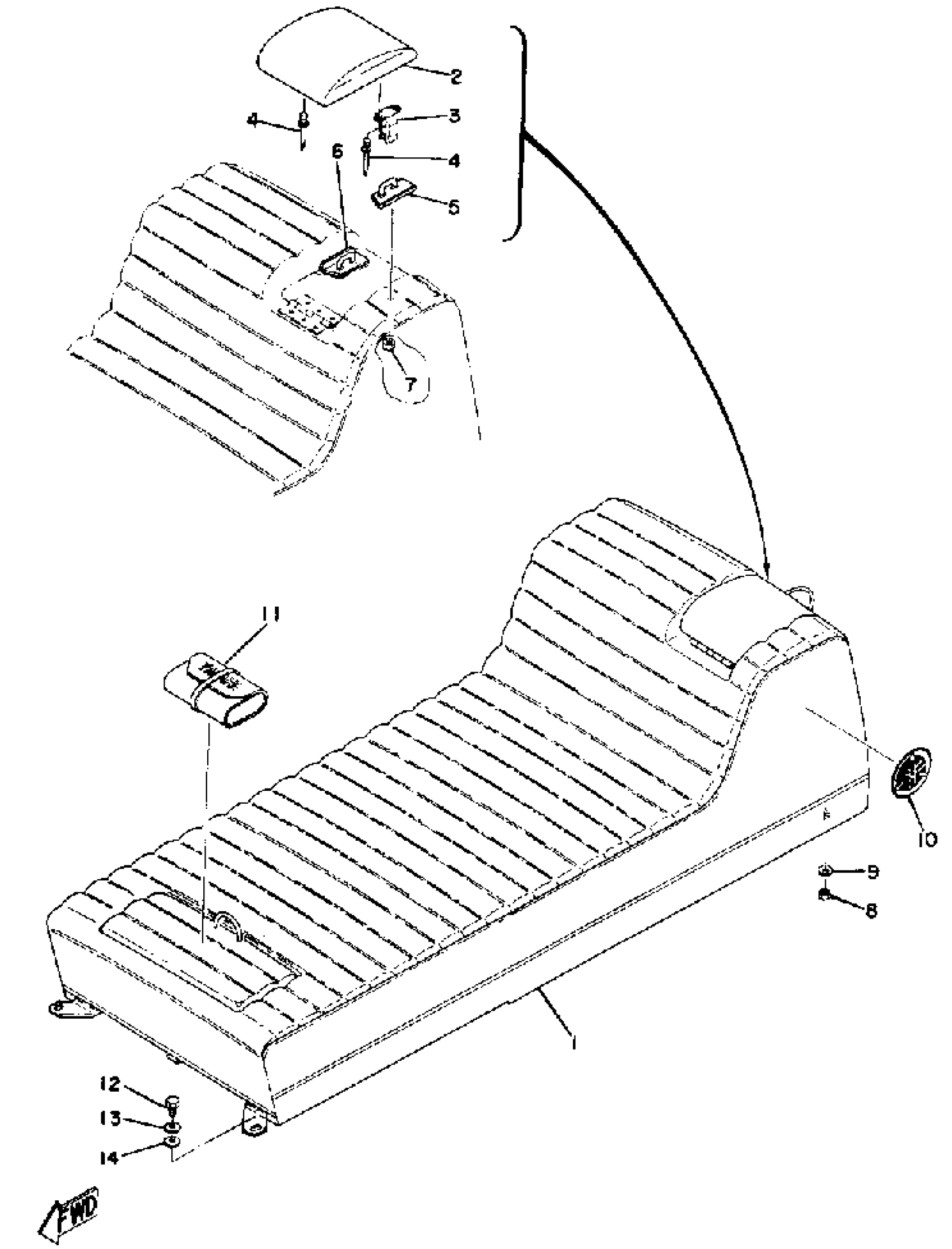

1973 Yamaha GP433B Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSEMBLY

844-24730-00-00

1
Out of stock

1

COVER, DOUBLE SEAT

(844-24731-00-00)

1
Out of stock

2

. LID, DOUBLE SEAT

838-24765-00-00

1
Out of stock

3

SPRING, SEAT BACK

(821-24794-00-00)

1
Out of stock

4

RIVET, BLIND

(90267-32017-00)

1
Out of stock

5

PIN

(838-24793-00-00)

1
Out of stock

6

PIN

(838-24784-00-00)

1
Out of stock

7

NUT(650)

95380-06700-00

1

$6.17

In stock

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

9

WASHER, CONICAL SPRING

90208-08011-00

1
Out of stock

10

EMBLEM 2

821-77352-00-00

1
Out of stock

11

TOOL KIT

(821-28100-10-00)

1
Out of stock

12

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

13

WASHER, SPRING

92907-06100-00

1
Out of stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock
← Frame Piping →

More Body & Frame diagrams
