1971 Yamaha GP396 Carburetor Diagram

← All diagrams

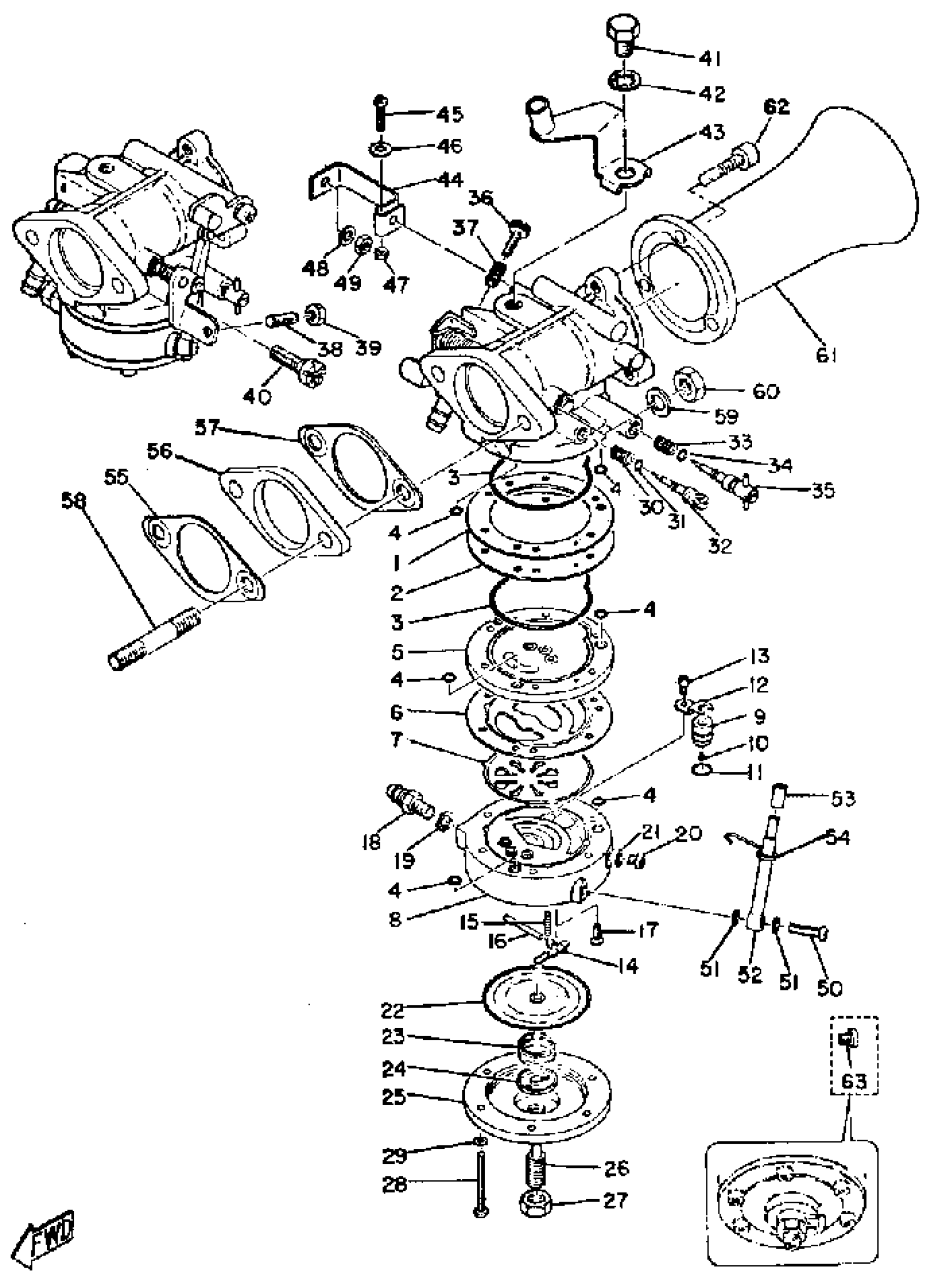

Find the part on the Carburetor diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha GP396 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. GASKET

806-14536-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(813-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(813-14502-00-00)

1
Out of stock

3

. O-RING

806-14562-00-00

1
Out of stock

4

. O-RING

810-14561-00-00

1
Out of stock

5

BODY, PUMP 1

(810-14542-00-00)

1
Out of stock

6

GASKET

(810-14553-00-00)

1
Out of stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

BODY, PUMP 2

(810-14543-00-00)

1
Out of stock

9

VALVE SEAT ASSEMBLY

(813-14590-00-00)

1
Out of stock

10

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

11

. O-RING

810-24486-00-00

1
Out of stock

12

PLATE, PIN FITTING

(810-14549-00-00)

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

15

. SPRING

810-14556-00-00

1
Out of stock

16

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

17

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

18

JOINT

(813-14568-00-00)

1
Out of stock

19

WASHER

(810-14558-00-00)

1
Out of stock

20

SCREW

(806-14567-01-00)

1
Out of stock

21

. WASHER

810-14597-00-00

1
Out of stock

22

DIAPHRAGM

810-14545-00-00

—
Out of stock

23

SPRING

(810-14555-00-00)

1
Out of stock

24

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

25

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

26

. SCREW, STOP

810-14565-00-00

1
Out of stock

27

. NUT

95380-08700-00

1

$3.07

In stock

28

SCREW, PAN HEAD(MK5)

98507-04035-00

—

$6.69

In stock

29

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

30

SPRING, AJST SCREW

(806-14531-00-00)

1
Out of stock

31

O-RING

(810-14563-00-00)

1
Out of stock

32

SCREW, ADJUST

(810-14522-00-00)

1
Out of stock

33

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

34

O-RING

(810-14564-00-00)

1
Out of stock

35

SCREW, ADJUST

(813-14521-00-00)

1
Out of stock

36

SCREW, STOP

(806-14523-00-00)

1
Out of stock

37

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

38

SCREW

(813-14591-00-00)

1
Out of stock

39

NUT

(806-14594-00-00)

1
Out of stock

40

SCREW, ADJUST

(813-14522-00-00)

1
Out of stock

41

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

42

WASHER, IN.TOOTH

(92901-08300-00)

1
Out of stock

43

BRACKET, THROTTLE

(813-14571-00-00)

1
Out of stock

44

CONNECTOR

(806-14588-00-00)

1
Out of stock

45

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

46

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

47

NUT

(806-14595-00-00)

1
Out of stock

48

WASHER

(806-14598-00-00)

1
Out of stock

49

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

50

. SCREW

8A1-14592-00-00

1
Out of stock

51

. WASHER

806-14559-00-00

1
Out of stock

52

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

53

. CAP, BLIND

810-24462-01-00

1
Out of stock

54

CLIP

(813-14159-00-00)

1
Out of stock

55

GASKET, MANIFOLD

810-13556-09-00

1
Out of stock

56

MANIFOLD, INTAKE

(807-13555-00-00)

1
Out of stock

57

GASKET, MANIFOLD

807-13556-09-00

1
Out of stock

58

BOLT, STUD

(90116-08056-00)

1
Out of stock

59

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

60

. NUT

95380-08700-00

1

$3.07

In stock

61

FUNNEL

809-14479-00-00

1
Out of stock

62

SCREW, PAN

98507-06014-00

—

$6.18

In stock

63

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
