1971 Yamaha GP396 Alternate Diagram

← All diagrams

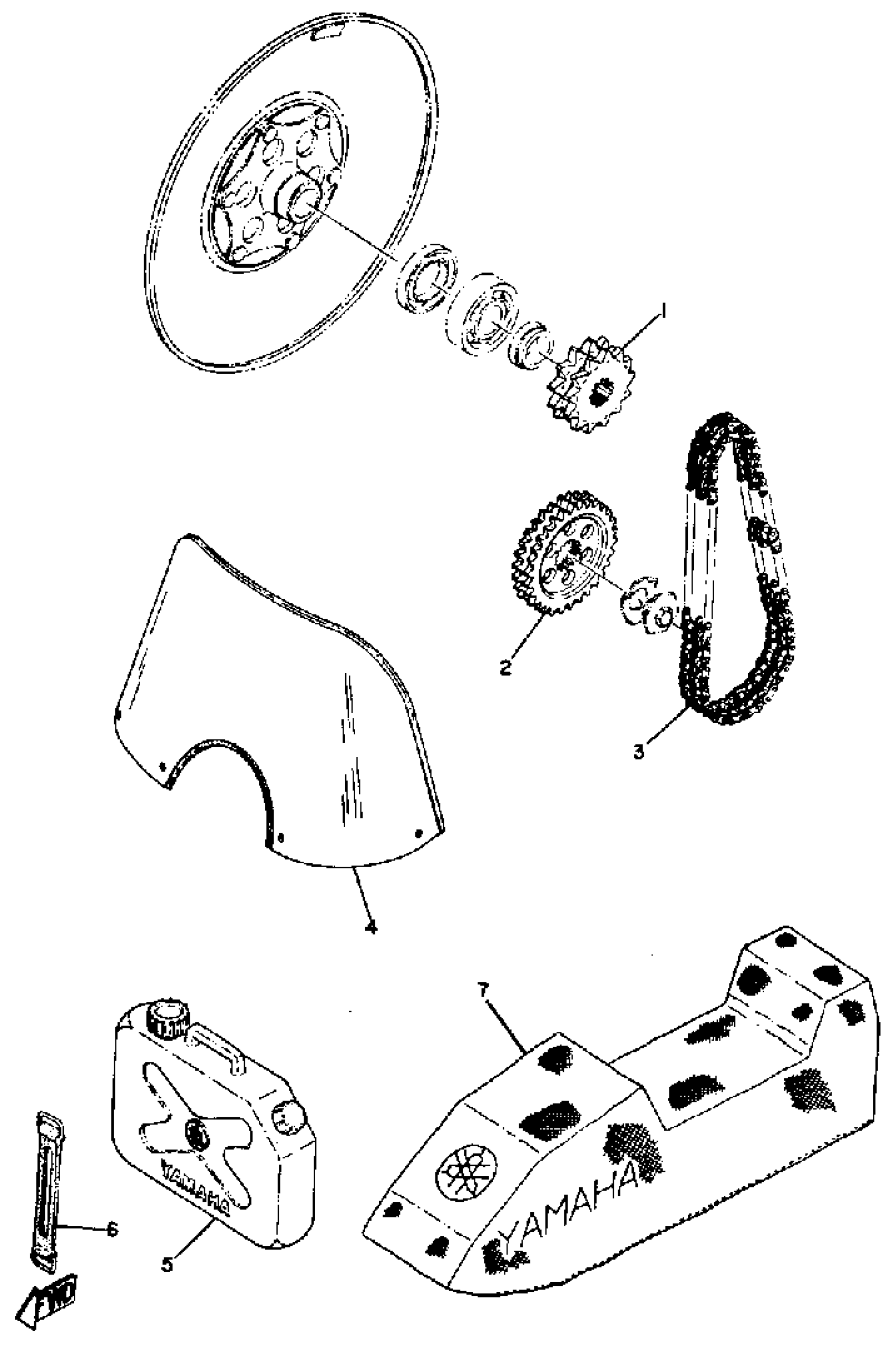

Find the part on the Alternate diagram for your 1971 Yamaha GP396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Yamaha GP396 Alternate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRKT, CHAIN DR 9T

(802-17682-01-00)

1
Out of stock

1

SPROCKET, CHAIN DRIVE (10T)

802-17682-10-00

1
Out of stock

1

SPROCKET, CHAIN DRIVE (11T)

802-17682-20-00

1
Out of stock

1

SPROCKET, CHAIN DRIVE (12T)

806-17682-20-00

1
Out of stock

1

SPROCKET, CHAIN DRIVE (14T)

806-17682-40-00

1
Out of stock

1

SPRKT, CHAIN DR 15T

(810-17682-50-00)

1
Out of stock

2

SPROCKET, CHN DRVN

802-47548-50-00

1
Out of stock

2

SPROCKET, CHN DRVN

(802-47548-60-00)

1
Out of stock

3

CHAIN

(94804-25064-00)

1
Out of stock

4

HIGH WND SCRN 15

(816-77210-00-00)

1
Out of stock

5

FUEL TANK ASSEMBLY

(806-24200-00-00)

1
Out of stock

6

BAND, TANK FITTING

(806-24282-00-00)

1
Out of stock
