1974 Yamaha GP338F Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1974 Yamaha GP338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

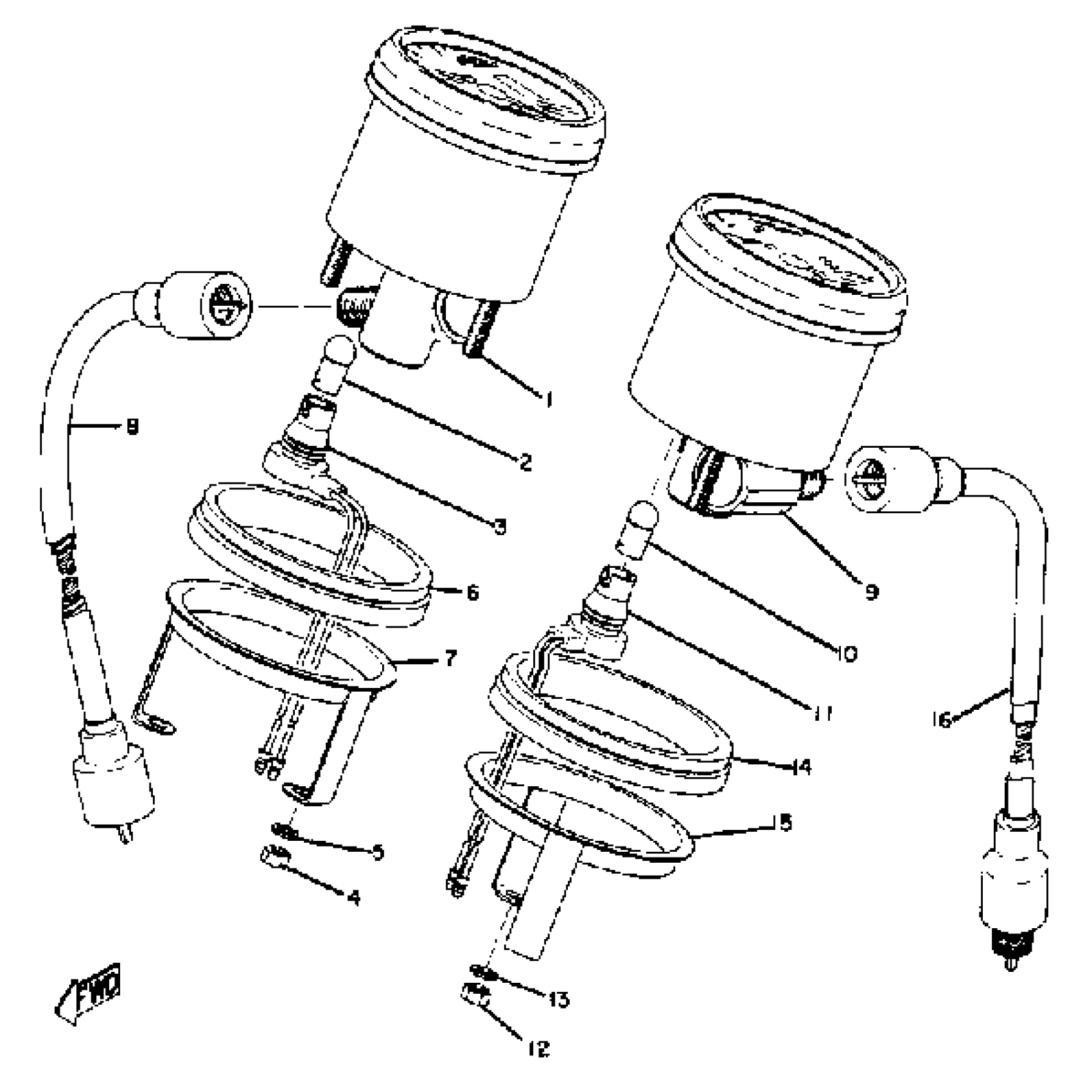

1974 Yamaha GP338F Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

861-83510-41-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(861-83536-40-00)

1
Out of stock

4

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. DAMPER

861-83523-40-00

1
Out of stock

7

. PLATE, FITTING

861-83514-40-00

1
Out of stock

8

SPEEDOMETER CABLE

839-83550-01-00

1
Out of stock

9

TACHOMETER KIT

(ACC-01200-42-74)

1
Out of stock

10

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

11

SOCKET, METER

(861-83536-40-00)

1
Out of stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

. DAMPER

861-83523-40-00

1
Out of stock

15

. PLATE, FITTING

861-83514-40-00

1
Out of stock

16

TACHOMETER CABLE (843-83560-00)

843-83560-01-00

1
Out of stock
