1974 Yamaha GP338F Crankcase - Cylinder Diagram

← All diagrams

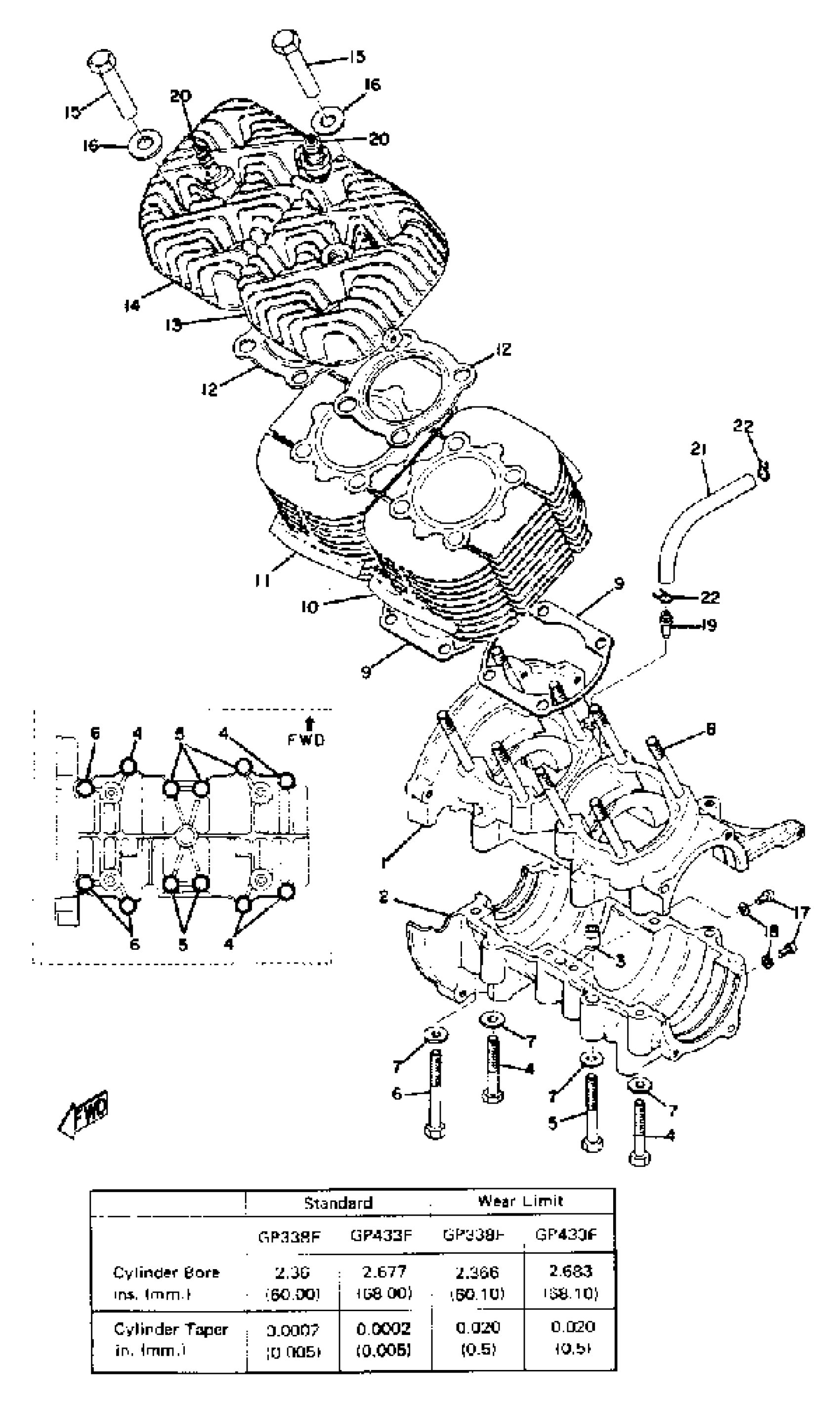

Find the part on the Crankcase - Cylinder diagram for your 1974 Yamaha GP338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP338F Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(846-15100-00-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT, HEXAGON

97013-08050-00

—

$6.82

In stock

5

BOLT (663)

97013-08060-00

1

$3.25

In stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

8

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

9

GASKET, CYLINDER

846-11351-02-00

1

$4.74

In stock

10

CYLINDER 1

(865-11311-00-00)

1
Out of stock

11

CYLINDER 2

(865-11321-00-00)

1
Out of stock

12

GASKET, CYL HEAD 1

8A6-11181-09-00

1
Out of stock

13

HEAD, CYLINDER 1

(865-11111-00-00)

1
Out of stock

14

HEAD, CYLINDER 2

865-11121-00-00

1
Out of stock

15

NUT, SPEC''L SHAPE

90179-08090-00

1
Out of stock

16

YBS66-12 WASHER,PLAIN

92990-12200-00

1

$6.17

In stock

17

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

GASKET 838153840000

90430-06016-00

—

$6.18

In stock

19

JOINT, BREATHER

J38-11116-00-00

—

$2.77

In stock

20

NGK BR8EV 4PK

NGK-BR8EV-00-00

1
Out of stock

21

HOSE (L450)

90445-10144-00

—

$4.52

In stock

22

CLIP(3BM)

90467-10135-00

—

$6.91

In stock
