1974 Yamaha GP338F Carburetor Diagram

← All diagrams

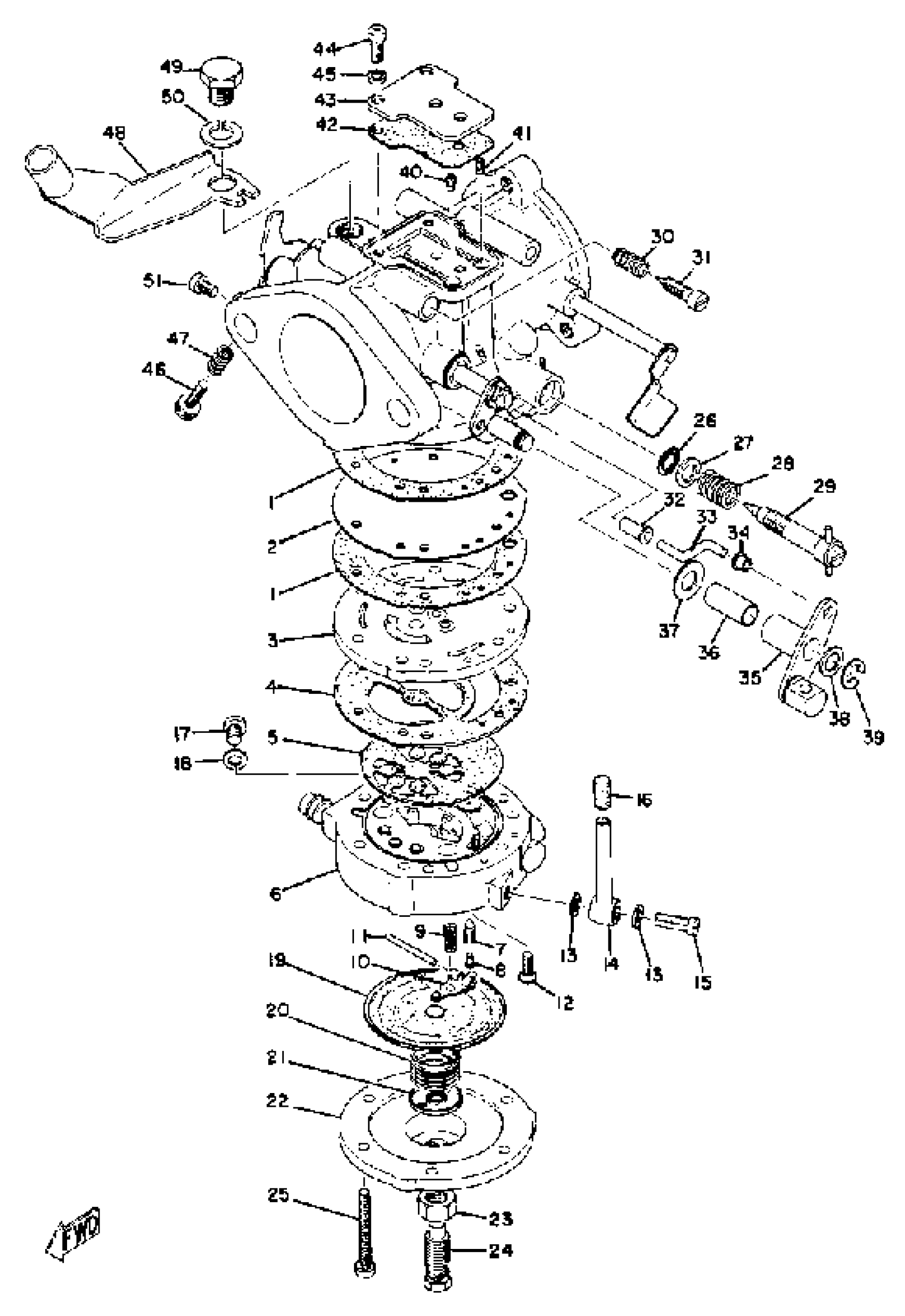

Find the part on the Carburetor diagram for your 1974 Yamaha GP338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP338F Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

(865-14501-00-00)

1
Out of stock

1

GASKET

(865-14536-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

865-14541-00-00

1
Out of stock

3

BODY, PUMP 1

(865-14542-01-00)

1
Out of stock

4

GASKET

865-14553-09-00

1

$14.75

In stock

5

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

6

BODY, PUMP 2

(865-14543-00-00)

1
Out of stock

7

VALVE

838-14546-00-00

1

$39.18

In stock

8

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

9

. SPRING

810-14556-00-00

1
Out of stock

10

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

11

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

12

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

13

. WASHER

806-14559-00-00

1
Out of stock

14

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

15

. SCREW

8A1-14592-00-00

1
Out of stock

16

. CAP, BLIND

810-24462-01-00

1
Out of stock

17

SCREW

(806-14567-01-00)

1
Out of stock

18

. WASHER

810-14597-00-00

1
Out of stock

19

DIAPHRAGM

810-14545-00-00

—
Out of stock

20

. SPRING, COMPRESSION

90501-06213-00

1
Out of stock

21

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

22

. NO LONGER AVAILABLE

810-14544-00-00

1
Out of stock

23

. NUT

95380-08700-00

1

$3.07

In stock

24

. SCREW, STOP

824-14565-00-00

1
Out of stock

25

SCREW

(824-14567-00-00)

1
Out of stock

26

. O-RING

824-14564-00-00

1
Out of stock

27

. WASHER

838-14597-00-00

1
Out of stock

28

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

29

. SCREW, ADJUST

838-14521-00-00

1
Out of stock

30

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

31

SCREW, ADJUST

(865-14522-00-00)

1
Out of stock

32

COLLAR

(865-14535-00-00)

1
Out of stock

33

ROD

(865-14577-00-00)

1
Out of stock

34

. COLLAR

865-14534-00-00

1
Out of stock

35

. LEVER

865-14573-00-00

1
Out of stock

36

COLLAR

(806-14534-00-00)

1
Out of stock

37

. WASHER, PLATE

90202-07055-00

1
Out of stock

38

WASHER, PLATE(3TJ)

90202-06056-00

—
Out of stock

39

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

40

. JET #52 (#52)

865-14515-52-00

1
Out of stock

41

. JET #68

865-14515-68-00

1
Out of stock

42

GASKET

(865-14537-00-00)

1
Out of stock

43

PLATE

(865-14527-00-00)

1
Out of stock

44

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

45

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

46

SCREW, STOP

(810-14523-00-00)

1
Out of stock

47

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

48

. BRACKET, THROTTLE

865-14571-01-00

1
Out of stock

49

BOLT(62E)

97013-08012-00

—

$2.48

In stock

50

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

51

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
