1973 Yamaha GP338 Brake Diagram

← All diagrams

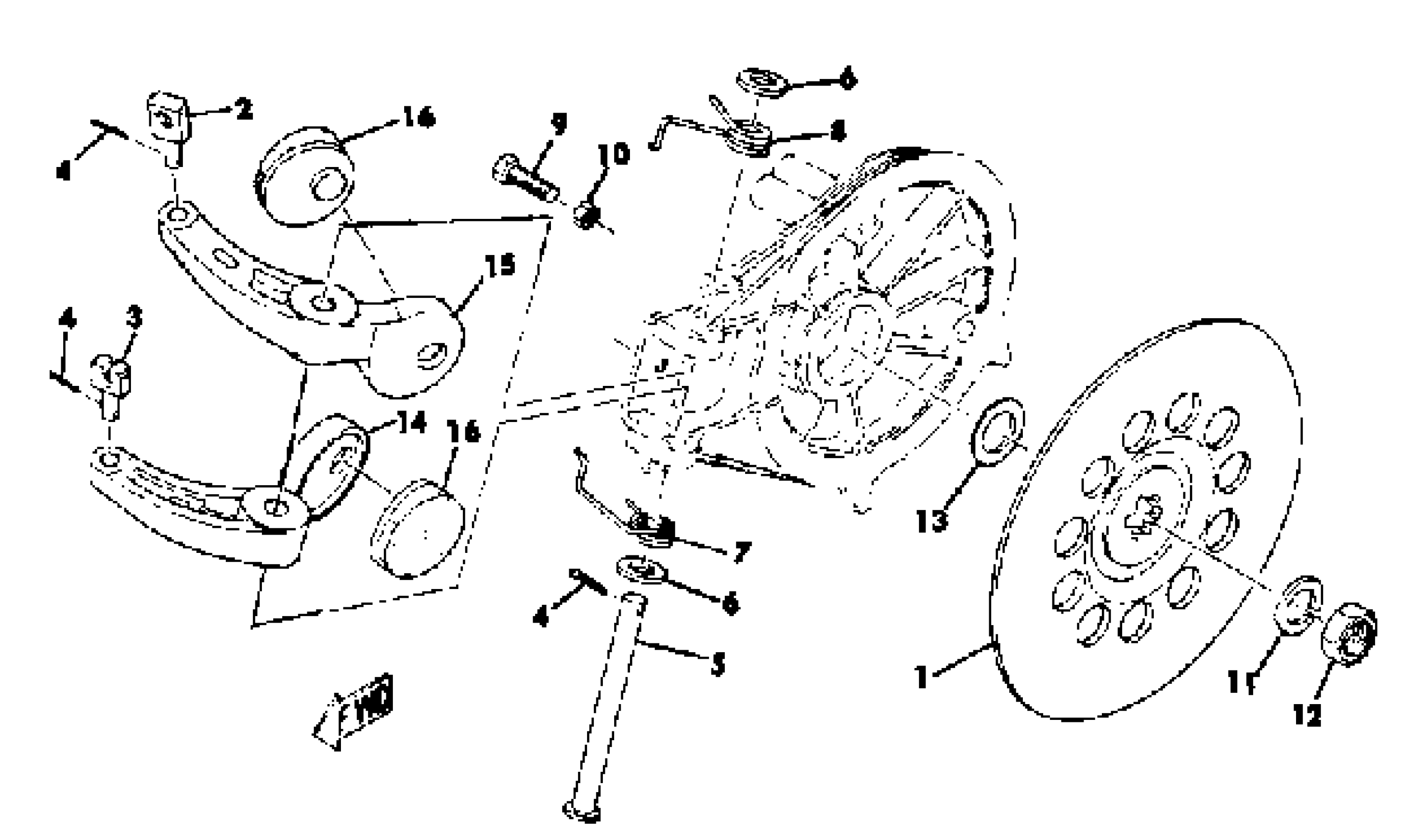

Find the part on the Brake diagram for your 1973 Yamaha GP338, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha GP338 Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE

845-25711-00-00

1
Out of stock

2

PIN (810)

90249-06012-00

—

$9.91

In stock

3

PIN

90249-06009-00

1
Out of stock

4

PIN, COTTER

91490-20025-00

1

$1.31

In stock

5

PIN, W/ HOLE (8J2)

90240-08068-00

—

$5.29

In stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

SPRING, TORSION

(90508-29046-00)

1
Out of stock

8

SPRING, TORSION

(90508-29045-00)

1
Out of stock

9

BOLT HEXAGON

97001-05018-00

1
Out of stock

10

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

11

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

12

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

13

SHIM 1

150-17417-00-02

1
Out of stock

13

SHIM 1

(150-17417-00-03)

1
Out of stock

14

BODY, CALIPER 1

838-25731-00-00

1
Out of stock

15

PAD, CALIPER (R.H.)

838-25740-00-00

1
Out of stock

16

PAD, CALIPER

(826-25732-09-00)

1
Out of stock
