1974 Yamaha GP292F OIL Pump Diagram

← All diagrams

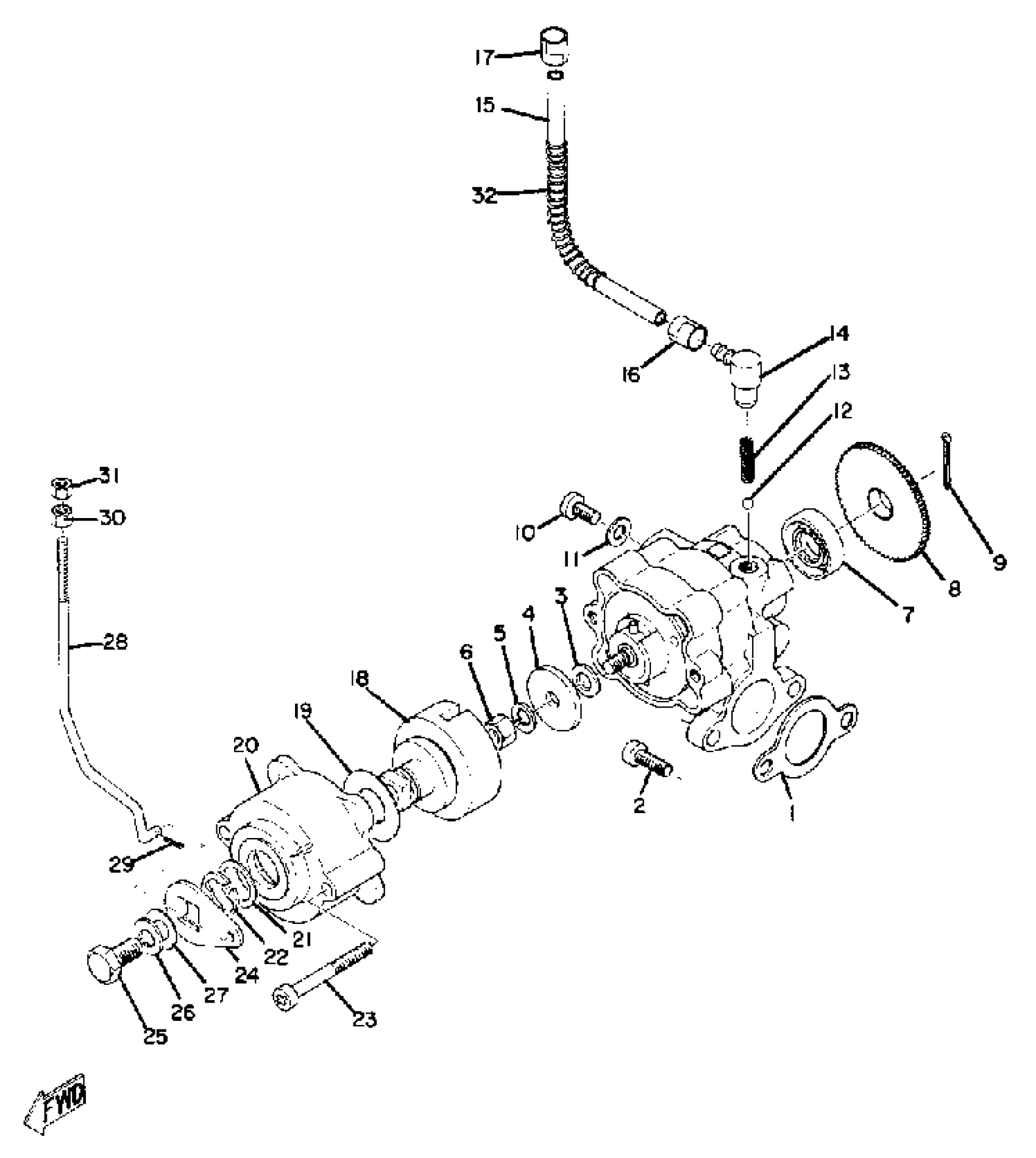

Find the part on the OIL Pump diagram for your 1974 Yamaha GP292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha GP292F OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(864-13101-00-00)

1
Out of stock

2

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

3

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

3

SHIM, PLUNGER

(137-13137-00-30)

1
Out of stock

4

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

9

. PIN, COTTER

91401-12018-00

1
Out of stock

10

BOLT

(90109-04178-00)

1
Out of stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

BALL

93505-32002-00

1

$2.22

In stock

13

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

14

NOZZLE

353-13552-01-00

—
Out of stock

15

HOSE (L700)

90445-05M07-00

1
Out of stock

16

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

17

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

18

SHAFT, PUMP CONTROL

860-13153-00-00

1
Out of stock

19

SEAL, GREASE

860-13119-00-00

1
Out of stock

20

COVER, AJST PULLEY

(812-13146-00-00)

1
Out of stock

21

SHIM

(812-13147-00-00)

1
Out of stock

22

CIRCLIP(J51)

99080-09600-00

—

$1.88

In stock

23

SCREW, PAN

98507-04030-00

1

$1.51

In stock

24

LEVER, PUMP CONTROL

(812-13156-00-00)

1
Out of stock

25

BOLT (661)

97013-06012-00

—

$4.71

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

ROD, PUMP CONTROL

864-13157-00-00

1
Out of stock

29

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

30

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

31

SPRING, COMPRESSION

(90501-04019-00)

1
Out of stock

32

SPRING, COMPRESSION

(90501-04019-00)

1
Out of stock
