1974 Yamaha GP292F Bumper Diagram

← All diagrams

Find the part on the Bumper diagram for your 1974 Yamaha GP292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

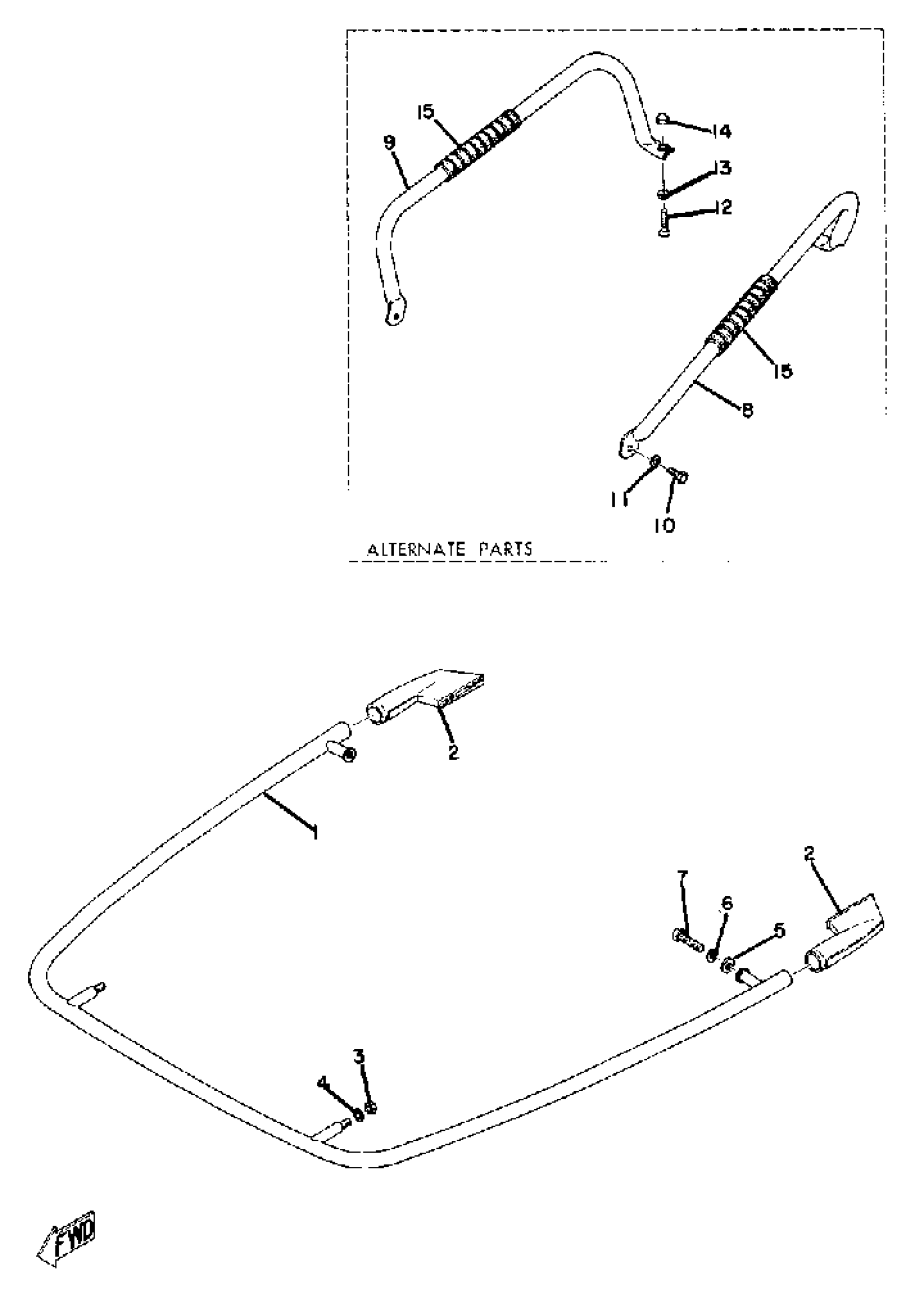

1974 Yamaha GP292F Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, ASSIST GRIP

838-77575-00-00

1
Out of stock

1

FRONT BUMPER

853-77510-00-00

1
Out of stock

2

END, BUMPER

838-77523-00-00

1
Out of stock

3

NUT(6L2)

95333-08600-00

1

$3.20

In stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLATE

(90201-08456-00)

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

8

GRIP, ASSIST 1

(853-77571-00-00)

1
Out of stock

9

GRIP, ASSIST 2

(853-77572-00-00)

1
Out of stock

10

BOLT (661)

97013-06012-00

1

$4.71

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

SCREW, FLAT HEAD

98780-06530-00

1

$4.02

In stock

13

WASHER

92990-06500-00

1
Out of stock

14

NUT (J17)

95380-06800-00

1

$6.74

In stock
