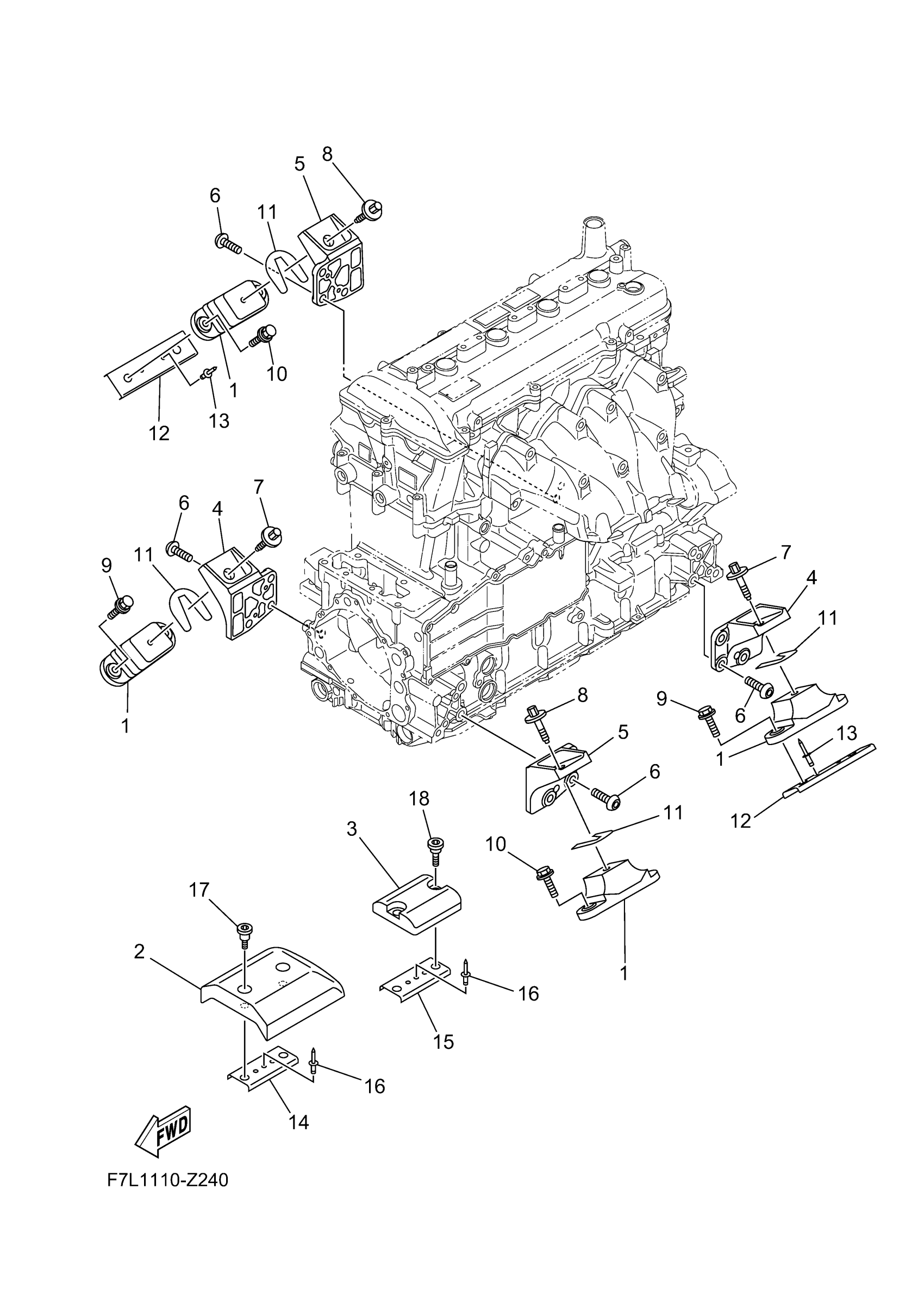

Yamaha GP1900AB (GP HO WAUDIO) F7L3 2025 ENGINE MOUNT Diagram

#

Description
Price

1

MOUNT RUBBER

67X-44517-10-00

$101.50

2

STOPPER, UPPER MOUNT

6CN-G4532-00-00

$33.32

3

STOPPER, LOWER MOUNT RUBBER

6CN-G4574-00-00

$15.14

4

BRACKET 1

6BH-41661-00-00

Unavailable

5

BRACKET 2

6BH-41662-00-00

Unavailable

6

SCREW

90149-10052-00

$6.82

7

BOLT, WITH WASHER

90119-08860-00

$3.88

8

BOLT, WITH WASHER

90119-08860-00

$3.88

9

BOLT, WITH WASHER

90119-08829-00

$3.88

10

BOLT, WITH WASHER

90119-08829-00

$3.88

11

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

11

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

11

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

11

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

11

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

12

PLATE

F2S-U732B-00-00

Unavailable

13

RIVET, BLIND

90267-489U2-00

$1.43

14

PLATE

F2M-U732B-00-00

$5.15

15

PLATE

F2M-U732B-00-00

$5.15

16

RIVET, BLIND

90267-489U2-00

$1.43

17

BOLT

90109-06874-00

$3.18

18

BOLT

90109-06875-00

$3.33
