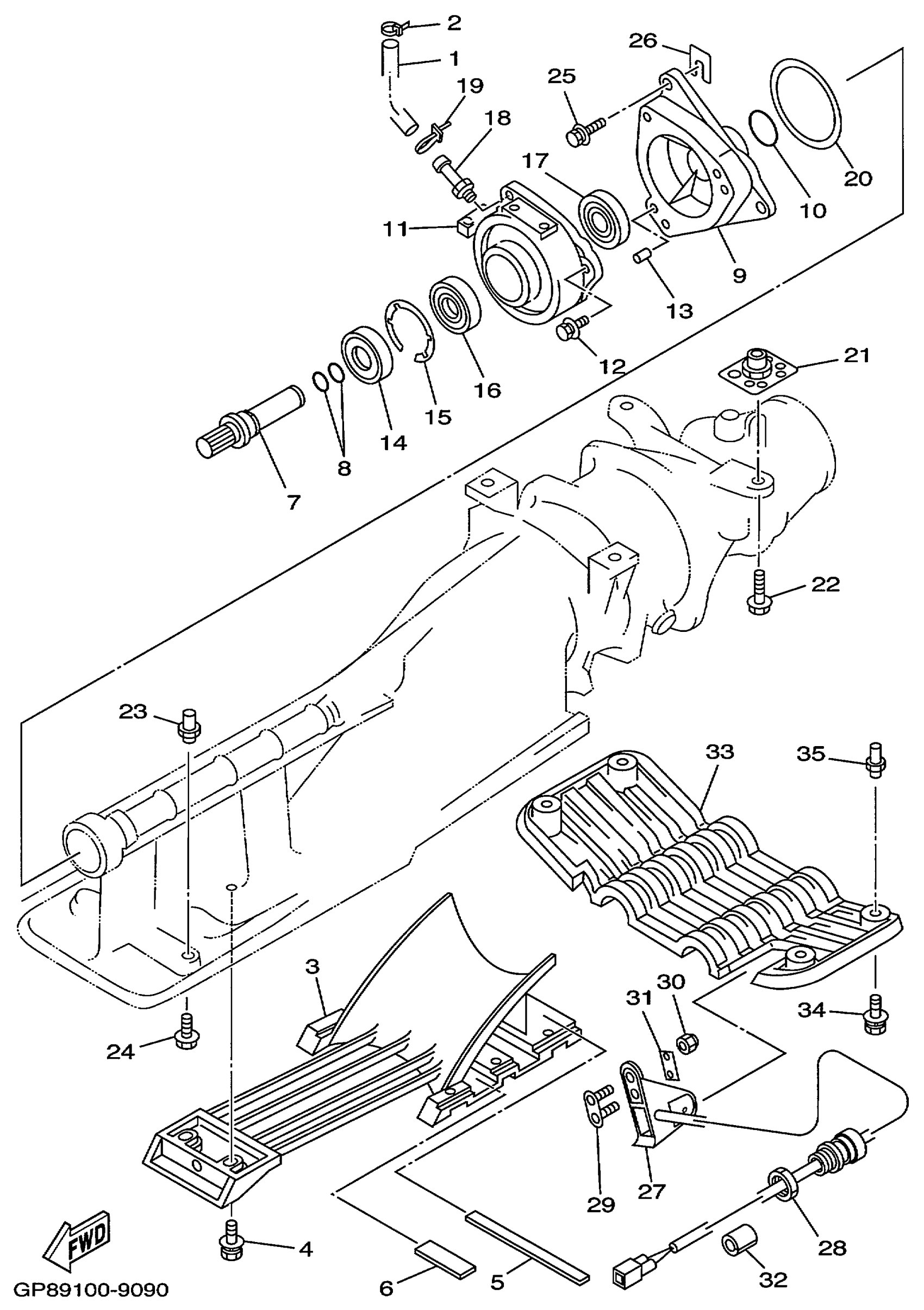

Yamaha GP1200X (WAVE RUNNER GP1200) GP89 1999 JET UNIT 2 Diagram

#

Description
Price

1

HOSE (L445)

90445-09M21-00

$20.98

2

CLAMP

90465-10098-00

$1.68

3

SCREEN, INTAKE

63M-51333-01-94

Unavailable

4

BOLT, WITH WASHER

90119-069UC-00

$3.37

5

. FELT, PACKING

63M-51367-00-00

$4.55

6

. FELT, PACKING

63M-51368-00-00

$3.64

7

SHAFT, COUPLER

63M-51323-01-00

$360.59

8

O-RING(6R7)

93210-17MA4-00

$4.65

9

HOUSING, BEARING

65A-G5331-00-00

Unavailable

10

O-RING

93210-35M72-00

$11.39

11

HOUSING, BEARING

65U-45332-02-94

$256.05

12

BOLT, WITH WASHER

90119-08841-00

$1.01

13

PIN, DOWEL (614)

93606-12019-00

$3.05

14

OIL SEAL(62T)

93101-25M55-00

$24.36

15

CIRCLIP

93430-47M04-00

$5.18

16

BEARING(62G)

93306-205U6-00

$55.29

17

OIL SEAL

93101-24001-00

Unavailable

18

NIPPLE, HOSE

61L-45378-00-00

$11.35

19

CLAMP

90465-10098-00

$1.68

20

SEAL

6K8-45127-00-00

$15.49

21

NUT

90179-10925-00

$5.00

22

BOLT, WITH WASHER

90119-109U8-00

Unavailable

23

NUT(FJ0)

90179-06947-00

Unavailable

24

BOLT, WITH WASHER

90119-06896-00

$5.03

25

BOLT, WITH WASHER

90119-08907-00

$5.45

26

SHIM (0.5)

GD0-U7249-00-05

$1.94

26

SHIM (0.5)

GD0-U7249-00-05

$1.94

27

SPEED SENSOR

GP7-U8K31-02-00

Unavailable

28

. NUT, DRAIN 1

EU0-62241-30-00

$10.49

29

BRACKET, SPEED SENSOR

GP7-U8K33-00-00

Unavailable

30

NUT, SELF-LOCKING

95720-06300-00

$1.82

31

PLATE, SPEED SENSOR

GP7-U8K35-00-00

Unavailable

32

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

33

PLATE 2

GU0-U273B-00-00

Unavailable

34

BOLT, WITH WASHER

90119-08829-00

$3.88

35

NUT

90179-08815-00

Unavailable
