1999 Yamaha Wave Runner GP1200 (GP1200X) Hull Deck Diagram

← All diagrams

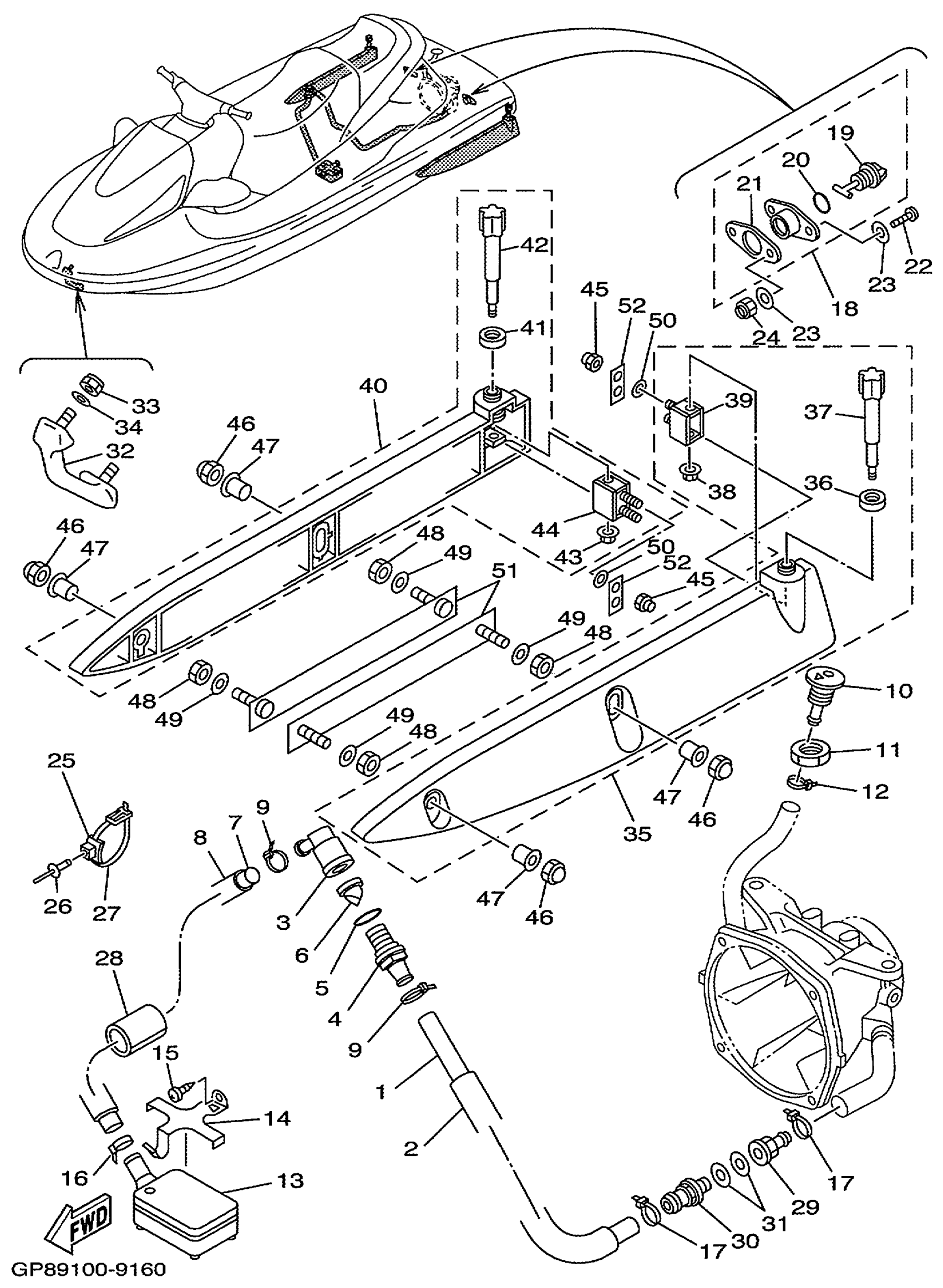

Find the part on the Hull Deck diagram for your 1999 Yamaha Wave Runner GP1200 (GP1200X), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Yamaha Wave Runner GP1200 (GP1200X) Hull Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L860)

90445-198B6-00

1
Out of stock

2

HOSE

90446-27M73-00

1
Out of stock

3

JOINT, HOSE 2

63M-51165-00-00

1
Out of stock

4

JOINT, HOSE

68N-5112T-00-00

1
Out of stock

5

O-RING

93210-22ME5-00

1
Out of stock

6

VALVE 1

63M-5316M-00-00

1
Out of stock

7

HOSE

90445-198B7-00

1
Out of stock

8

HOSE(63M)

90446-27M55-00

1
Out of stock

9

BAND

90601-200U1-00

1
Out of stock

10

SPOUT

FN8-6269B-00-00

1
Out of stock

11

NUT

EU0-61652-00-00

1
Out of stock

12

CLIP

90600-91755-00

1
Out of stock

13

STRAINER, BILGE

GD0-U761D-00-00

1
Out of stock

14

BASE, STRAINER BLIGE

EW2-67618-00-00

1
Out of stock

15

SCREW, TAPPING(61A)

97780-50612-00

1
Out of stock

16

BAND

90601-200U1-00

1
Out of stock

17

BAND

90601-200U1-00

1
Out of stock

18

DRAIN PLUG ASSY

EU0-62280-00-00

1
Out of stock

19

. PLUG, DRAIN

EU0-62282-00-00

1
Out of stock

20

. O-RING

EU0-62283-00-00

1
Out of stock

21

. PACKING DRAIN (EU0)

EU0-62285-01-00

1
Out of stock

22

SCREW, PANHEAD (A93)

98580-05525-00

—
Out of stock

23

. WASHER, PLAIN

92990-05200-00

1
Out of stock

24

NUT, FLANGE

95720-05300-00

1
Out of stock

25

CLAMP COMP (EU0)

90600-91736-00

—
Out of stock

26

RIVET, BLIND

90267-48802-00

1
Out of stock

27

BAND (EU0)

90601-20009-00

1
Out of stock

28

PACKING, HOSE 2

GJ1-U7578-22-00

—
Out of stock

29

CONNECTION, THRU-HULL 1/4

90604-80759-00

1
Out of stock

30

CONNECTION, THROUGH HALL (GD0)

90604-80775-00

—
Out of stock

31

GASKET

90430-13909-00

1
Out of stock

32

BOW EYE 1

GU5-61624-00-00

1
Out of stock

33

. NUT, SELF-LOCKING

95720-08300-00

1
Out of stock

34

WASHER, PLAIN

92990-08200-00

1
Out of stock

35

STABILIZER LH

GP7-U883N-10-00

1
Out of stock

36

. NUT, LOCK 2

GP7-U883X-01-00

1
Out of stock

37

KNOB

GP7-U8354-05-00

1
Out of stock

38

NUT, FLANGE

95720-05300-00

1
Out of stock

39

. BRACKET 2

GP7-U8572-02-00

1
Out of stock

40

STABILIZER RH

GP7-U883P-10-00

1
Out of stock

41

. NUT, LOCK 2

GP7-U883X-01-00

1
Out of stock

42

KNOB

GP7-U8354-05-00

1
Out of stock

43

NUT, FLANGE

95720-05300-00

1
Out of stock

44

. BRACKET 2

GP7-U8572-02-00

1
Out of stock

45

NUT, SELF-LOCKING

95720-06300-00

1
Out of stock

46

NUT

90179-08978-00

1
Out of stock

47

COLLAR

90387-08801-00

1
Out of stock

48

NUT

90170-089U1-00

1
Out of stock

49

WASHER, PLAIN

92990-08200-00

1
Out of stock

50

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

51

BRACKET, STABILIZER

GP7-U883T-01-00

1
Out of stock

52

PACKING,STABILIZER

GP7-U883U-01-00

1
Out of stock
