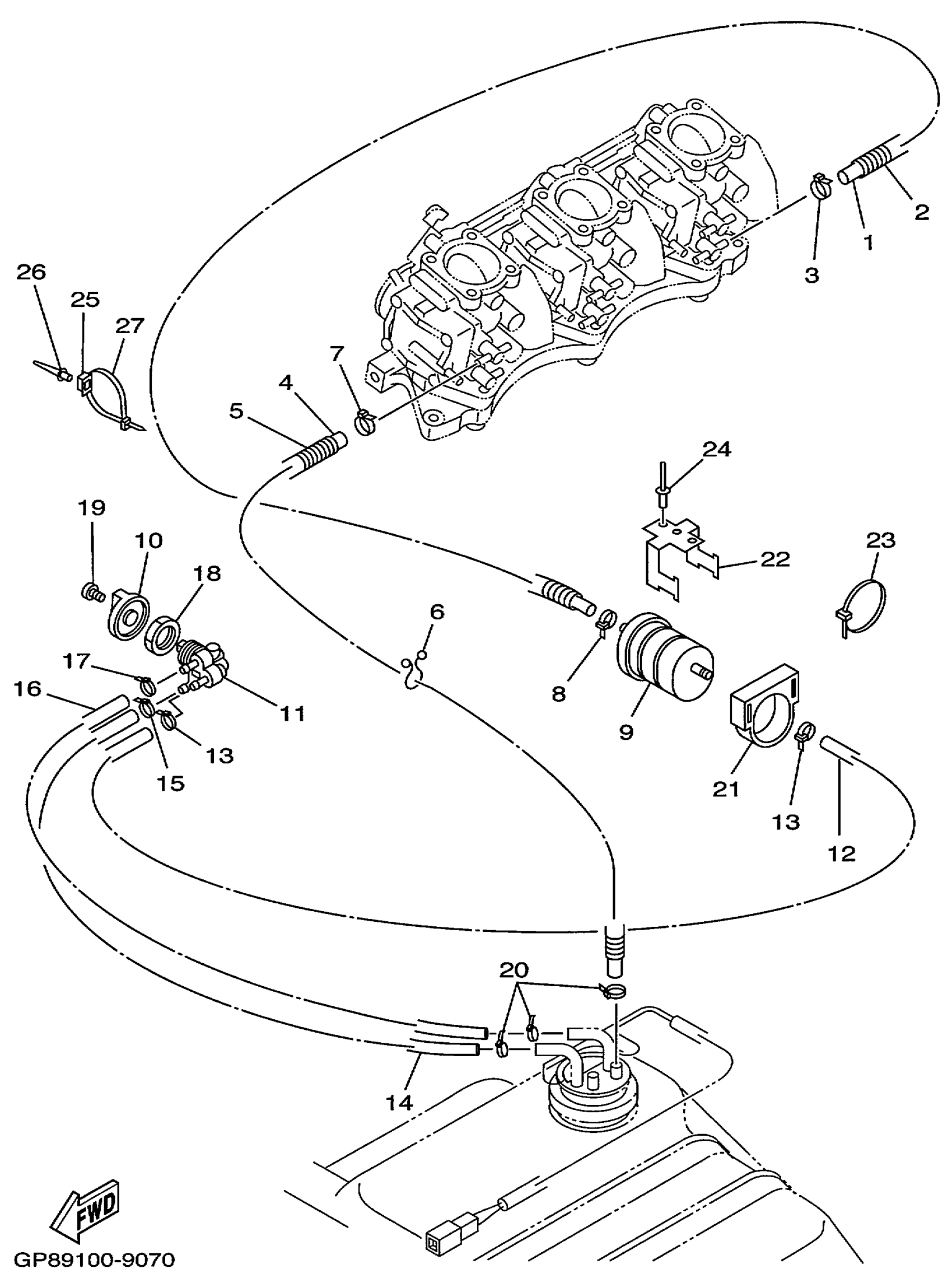

Yamaha GP1200X (WAVE RUNNER GP1200) GP89 1999 FUEL Diagram

#

Description
Price

1

HOSE (L1040)

90445-10MA9-00

$56.27

2

HOSE

90446-14M78-00

Unavailable

3

CLAMP

90465-10098-00

$1.68

4

HOSE (L1040)

90445-10MA9-00

$56.27

5

HOSE

90446-14M28-00

Unavailable

6

CLAMP

90465-18147-00

$5.39

7

CLAMP

90465-10098-00

$1.68

8

CLAMP

90465-10098-00

$1.68

9

FILTER ASSY

6K8-24560-21-00

$28.64

10

LEVER, COCK

6K8-24524-10-00

$11.84

11

FUEL COCK ASSY 1

65U-24500-02-00

Unavailable

12

HOSE (L400)

90445-10M43-00

$5.96

13

CLAMP

90465-10098-00

$1.68

14

HOSE (L1040)

90445-10MA9-00

$56.27

15

CLAMP

90465-10098-00

$1.68

16

HOSE (L400)

90445-10M43-00

$5.96

17

CLAMP

90465-10098-00

$1.68

18

NUT

90170-22M11-00

Unavailable

19

SCREW, WITH WASHER

97980-04210-00

$1.57

20

CLAMP

90465-10098-00

$1.68

21

HOLDER, FILTER

EU0-U7817-00-00

$13.63

22

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

23

BAND

90601-200U1-00

$2.77

24

RIVET (EU0)

90267-48938-00

$5.00

25

CLAMP COMP (EU0)

90600-91736-00

Unavailable

26

RIVET, BLIND

90267-48802-00

$1.98

27

BAND (EU0)

90601-20009-00

$6.36
