1998 Yamaha Wave Runner GP1200 (GP1200W) Jet Unit 2 Diagram

← All diagrams

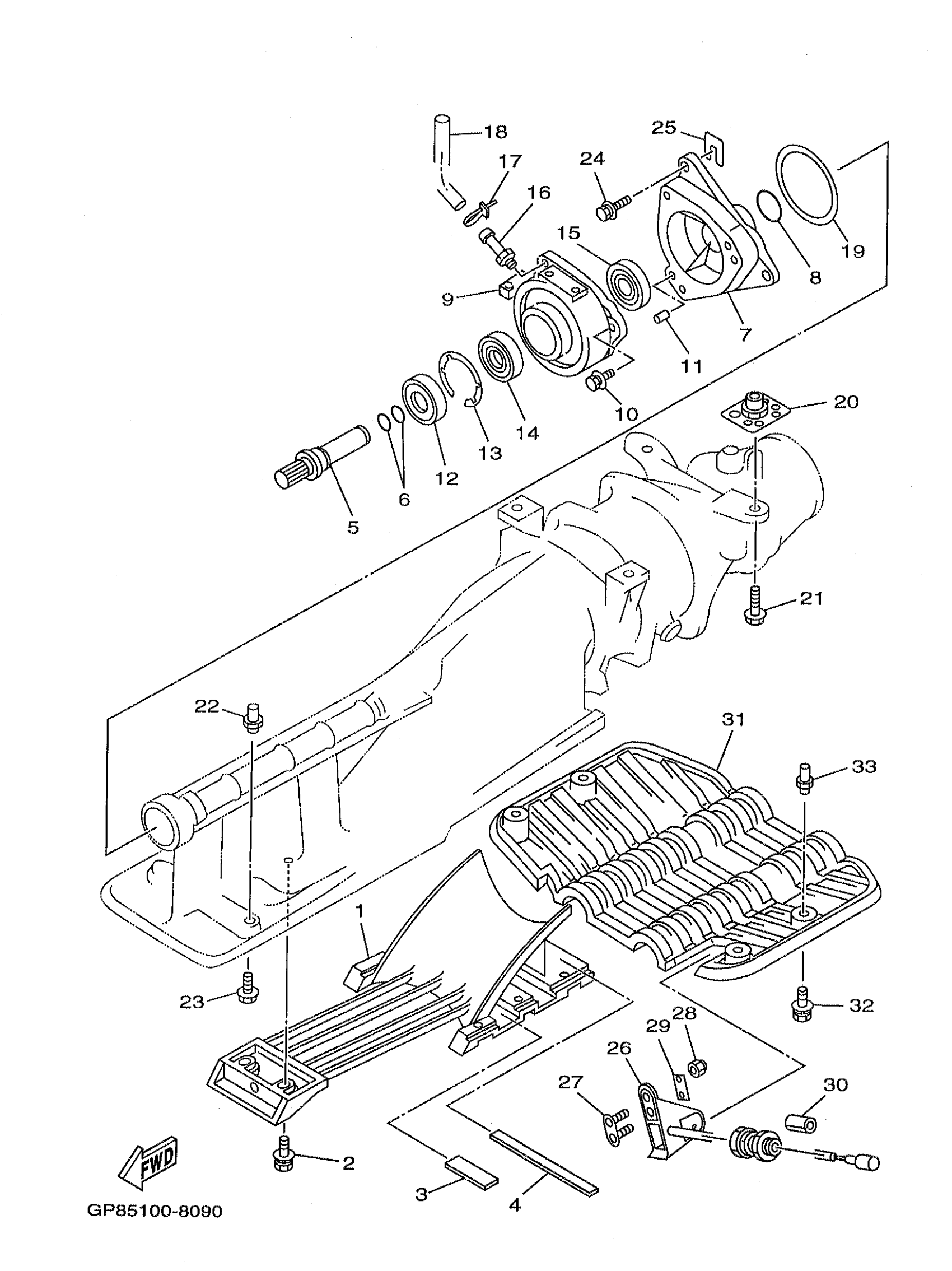

Find the part on the Jet Unit 2 diagram for your 1998 Yamaha Wave Runner GP1200 (GP1200W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Yamaha Wave Runner GP1200 (GP1200W) Jet Unit 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SCREEN, INTAKE

65R-R1333-00-00

1
Out of stock

2

BOLT, WITH WASHER

90119-069UC-00

1

$3.77

In stock

3

. FELT, PACKING

63M-51367-00-00

1

$4.62

In stock

4

. FELT, PACKING

63M-51368-00-00

1

$3.69

In stock

5

SHAFT, COUPLER

63M-51323-01-00

1

$365.49

In stock

6

O-RING(6R7)

93210-17MA4-00

1

$4.84

In stock

7

HOUSING, BEARING

65A-G5331-00-00

1
Out of stock

8

O-RING

93210-35M72-00

1

$11.57

In stock

9

HOUSING, BEARING

65U-45332-02-94

1

$259.98

In stock

10

BOLT, WITH WASHER

90119-08841-00

1

$1.15

In stock

11

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

12

OIL SEAL(62T)

93101-25M55-00

1

$26.00

In stock

13

CIRCLIP

93430-47M04-00

1

$5.53

In stock

14

BEARING(62G)

93306-205U6-00

1

$49.89

In stock

15

OIL SEAL

93101-24001-00

1

$31.99

In stock

16

NIPPLE, HOSE

61L-45378-00-00

1

$9.10

In stock

17

CLAMP

90465-10098-00

1

$2.24

In stock

18

HOSE (L445)

90445-09M21-00

—

$22.46

In stock

19

SEAL

6K8-45127-00-00

1

$15.49

In stock

20

NUT

90179-10925-00

1

$5.08

In stock

21

BOLT, WITH WASHER

90119-109U8-00

1
Out of stock

22

NUT(FJ0)

90179-06947-00

—

$3.98

In stock

23

BOLT, WITH WASHER

90119-06896-00

1

$5.62

In stock

24

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

25

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

25

SHIM (0.5)

GD0-U7249-00-05

1

$22.37

In stock

26

SPEED SENSOR

GP7-U8K31-02-00

1
Out of stock

27

BRACKET, SPEED SENSOR

GP7-U8K33-00-00

1
Out of stock

28

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

29

PLATE, SPEED SENSOR

GP7-U8K35-00-00

1
Out of stock

30

PACKING, HOSE 2

GJ1-U7578-12-00

—

$1.31

In stock

31

PLATE 2

GP7-U273B-00-00

1
Out of stock

32

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

33

NUT

90179-08815-00

1
Out of stock
