1998 Yamaha Wave Runner GP1200 (GP1200W) Engine Hatch 1 Diagram

← All diagrams

Find the part on the Engine Hatch 1 diagram for your 1998 Yamaha Wave Runner GP1200 (GP1200W), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

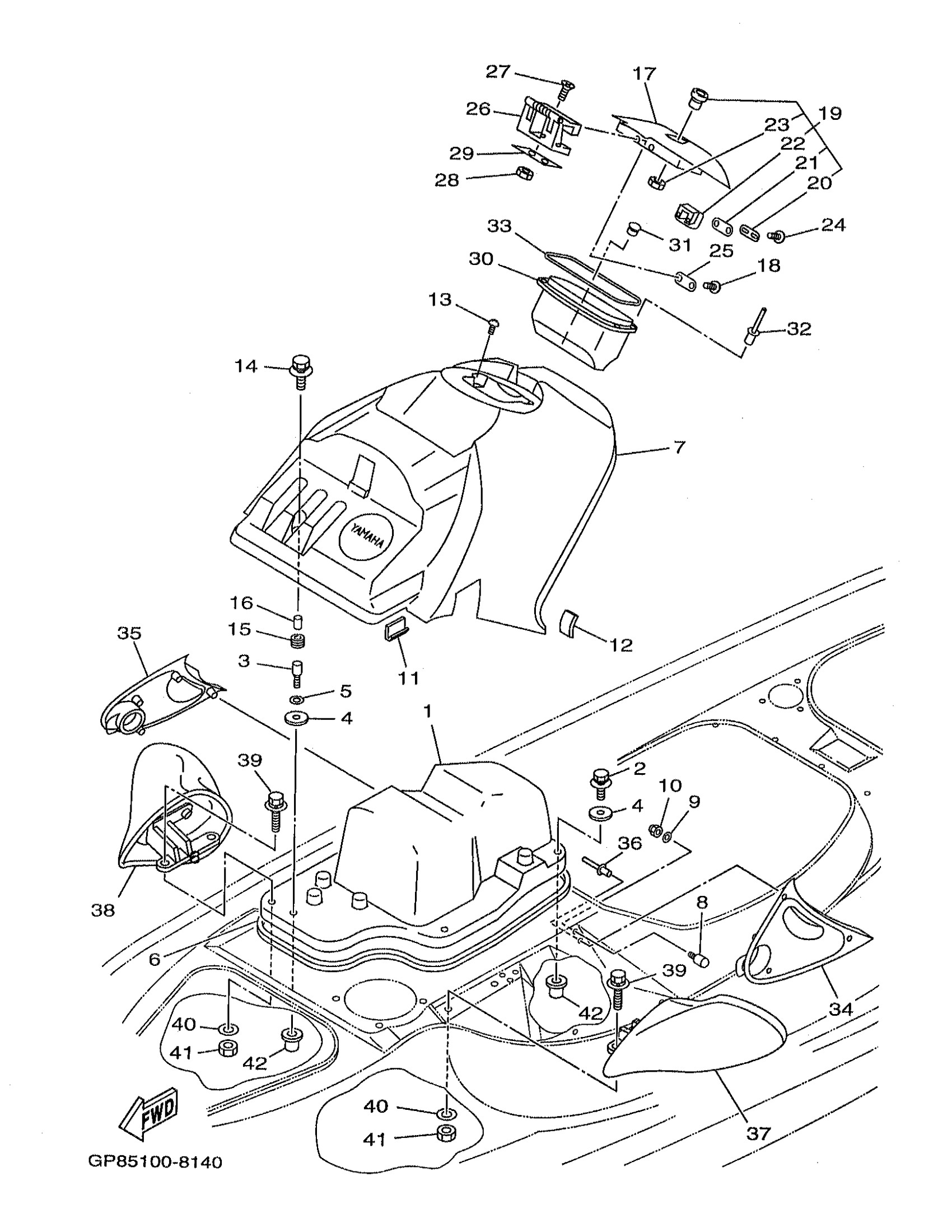

1998 Yamaha Wave Runner GP1200 (GP1200W) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GP7-U516A-00-00

1
Out of stock

2

BOLT, WITH WASHER

90119-08907-00

1

$5.34

In stock

3

BOLT

90109-08913-00

1
Out of stock

4

WASHER, PLATE

90201-099U1-00

1

$2.46

In stock

5

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

6

PACKING 7

GP7-U266F-00-00

1
Out of stock

7

COVER, ENGINE HATCH

GP8-U516N-10-P0

1
Out of stock

8

DAMPER 3

GP7-6515G-01-00

1

$38.99

In stock

9

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

10

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

11

RUBBER, WATER PROOF

GP7-U5114-00-00

1
Out of stock

12

PAD, HATCH 1

GP7-U517M-01-00

1
Out of stock

13

SCREW

90149-05984-00

1

$2.77

In stock

14

BOLT,WITH WASHER

90119-06940-00

1
Out of stock

15

GROMMET

90480-13907-00

1
Out of stock

16

COLLAR

90387-06920-00

1
Out of stock

17

LID HATCH (BLUE)

GP7-U517H-29-P0

1
Out of stock

18

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

19

LOCK ASSY

GP7-6287A-00-00

1
Out of stock

20

. PLATE, HOOK

GP7-62848-00-00

1

$6.46

In stock

21

. PLATE, HATCH LOCK

EW2-62846-00-00

1

$5.54

In stock

22

. HOOK, LOCK

GP7-6284J-00-00

1
Out of stock

23

. NUT, SPECIAL

GP7-62873-00-00

1

$5.54

In stock

24

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

25

PLATE, HOOD

GP7-U5148-00-00

1
Out of stock

26

HINGE, HATCH

GP7-6517G-01-00

1

$39.98

In stock

27

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

28

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

29

PLATE, HATCH 2

GP7-U517S-00-00

1
Out of stock

30

BOX GLOVE

GP7-U516P-00-00

1
Out of stock

31

. PLUG

90605-502U2-00

1

$2.46

In stock

32

RIVET, BLIND

90267-489UK-00

1
Out of stock

33

PACKING CASE

GP7-U519D-02-00

1
Out of stock

34

COVER, SIDE 1

GP7-U377B-00-00

1
Out of stock

35

COVER, SIDE 2

GP7-U377C-00-00

1
Out of stock

36

RIVET, BLIND

90267-48809-00

1

$2.38

In stock

37

MIRROR LH

GP8-U596B-10-00

1
Out of stock

38

MIRROR RH

GP8-U596C-10-00

1
Out of stock

39

BOLT, WITH WASHER(GA7)

90119-08932-00

—

$28.11

In stock

40

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

41

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

42

NUT

90179-08967-00

1
Out of stock
