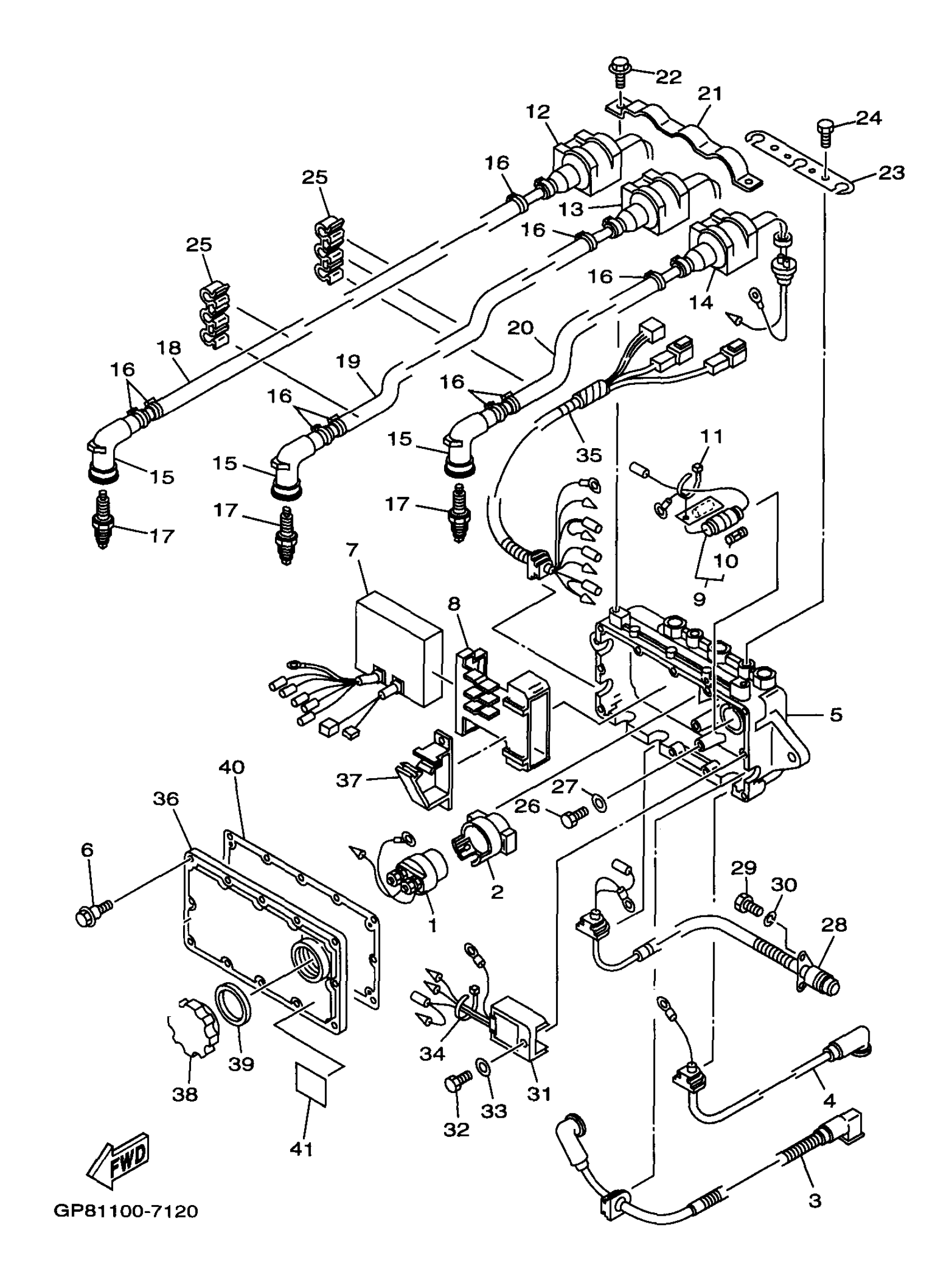

Yamaha GP1200V (WAVE RUNNER GP1200) GP81 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

2

HOLDER, RELAY

6M6-81952-01-00

Unavailable

3

WIRE, LEAD

65U-82117-10-00

Unavailable

4

WIRE, LEAD

6M6-82117-21-00

Unavailable

5

HOUSING

65U-8552A-00-94

Unavailable

6

BOLT

90109-05MA0-00

$9.64

7

C.D.I. UNIT

65U-85540-00-00

Unavailable

8

BAND

65U-85546-00-00

Unavailable

9

FUSE HOLDER ASSY

65U-82150-00-00

Unavailable

10

FUSE (10A)

1E6-82151-00-00

$5.80

11

CLAMP

90465-10098-00

$1.68

12

IGNITION COIL ASSY

65U-85570-00-00

Unavailable

13

IGNITION COIL ASSY

65U-85570-10-00

Unavailable

14

IGNITION COIL ASSY

65U-85570-20-00

$145.44

15

PLUG CAP ASSY

63M-82370-00-00

$77.80

16

CLAMP

90465-10098-00

$1.68

17

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

18

TUBE, CORD

63M-82351-00-00

$13.40

19

TUBE, CORD

65U-82351-00-00

Unavailable

20

TUBE, CORD

65U-82351-10-00

Unavailable

21

BRACKET

65U-85542-00-00

$38.99

22

BOLT, WITH WASHER

97513-08516-00

Unavailable

23

COVER

65U-85525-00-00

Unavailable

24

BOLT(GH1)

97080-06012-00

$2.56

25

CLAMP, CORD

65U-81317-10-00

$7.27

26

BOLT(GH1)

97080-06012-00

$2.56

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

THERMOSWITCH ASSEMBLY

65U-82560-00-00

Unavailable

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

30

WASHER, SPRING

92995-06100-00

$2.95

31

RECTIFIER & REGULATOR ASSY

6H2-81960-00-00

$121.41

32

BOLT(7U8)

97080-06020-00

$3.63

33

WASHER, PLAIN (646)

92990-06600-00

Unavailable

34

CLAMP

90465-10098-00

$1.68

35

EXTENSION, WIRE LEAD

65U-82553-00-00

$242.41

36

COVER, CASE

65U-8552E-00-00

Unavailable

37

CLAMP

90464-06M29-00

$6.36

38

CAP

6M6-8132W-00-00

$14.38

39

GASKET

6M6-81844-00-00

$10.99

40

GASKET, TERMINAL

65U-81921-00-00

$68.17

41

MARK 3

6R7-83623-40-00

$7.27
