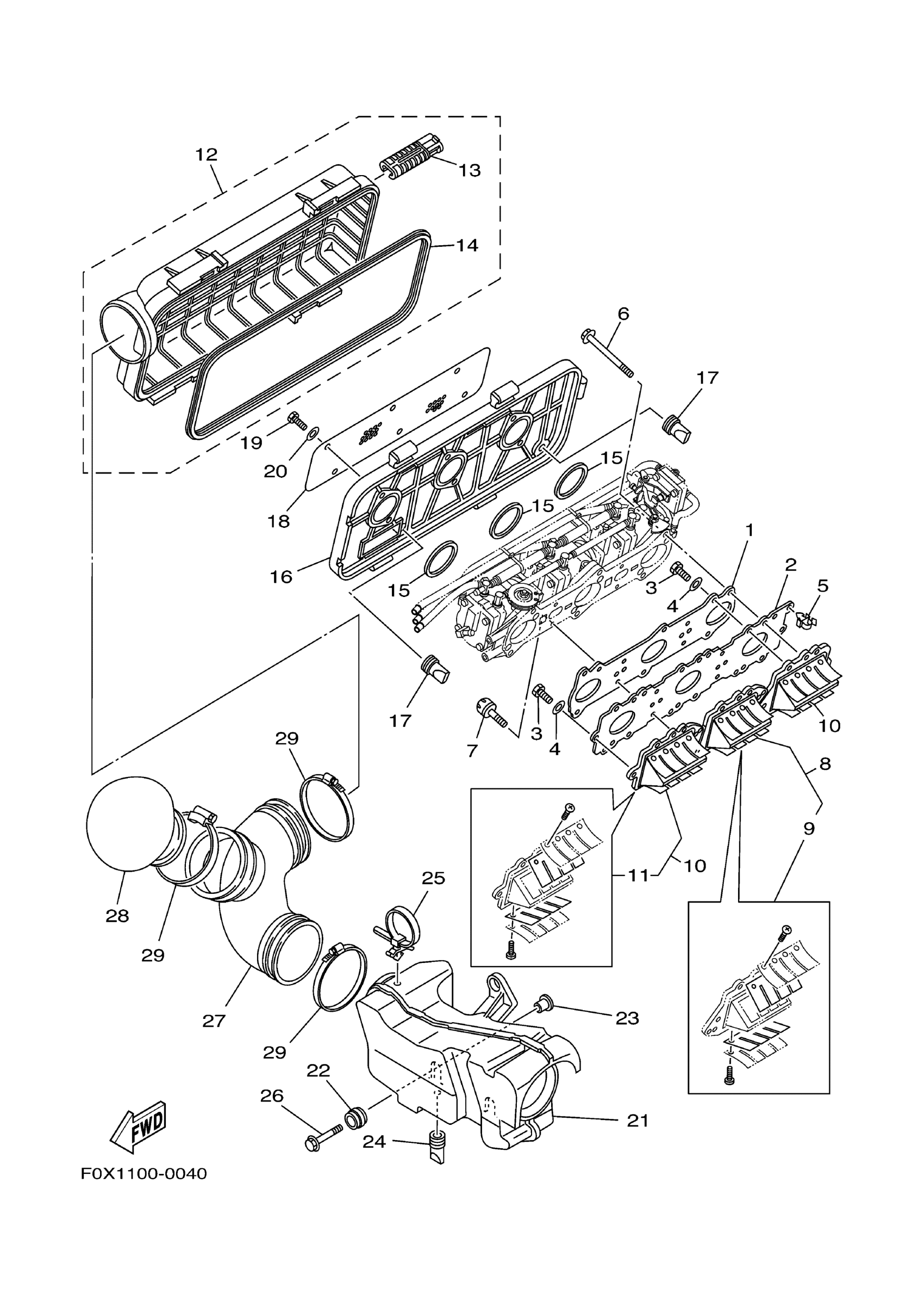

Yamaha GP1200AY (GP1200) F0X1 2000 INTAKE Diagram

#

Description
Price

1

. PLATE

66V-13556-00-00

$29.63

2

. PLATE, REED VALVE

66V-13624-00-00

Unavailable

3

BOLT(62Y)

97013-06025-00

$1.35

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

CLAMP

90464-14M55-00

$1.76

6

BOLT, WASHER BASED

90105-08M86-00

$12.94

7

BOLT

90109-06M00-00

Unavailable

8

REED VALVE ASSY

66V-13610-00-00

Unavailable

9

. REED SET

66V-W0004-00-00

$62.23

10

REED VALVE ASSY

66V-13620-00-00

$148.47

11

. REED SET

66V-W0004-00-00

$62.23

12

COVER SUB ASSY

66V-14480-01-00

Unavailable

13

. HOLDER

66V-13898-00-00

$8.51

14

. SEAL

66V-14457-00-00

Unavailable

15

. O-RING

66E-13473-00-00

$4.81

16

COVER, CARBURETOR 2

67X-14284-00-00

Unavailable

17

RUBBER, SEAL 2

67X-42717-00-00

Unavailable

18

ELEMENT, AIR CLEANER

66V-14451-00-00

$43.92

19

BOLT, HEXAGON

97013-06045-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$1.84

21

SILENCER ASSY, INTAKE

67X-14440-00-00

Unavailable

22

GROMMET

90480-22M15-00

$10.18

23

COLLAR

90387-08M37-00

$9.81

24

RUBBER, SEAL 2

67X-42717-00-00

Unavailable

25

CLAMP

90464-50001-00

Unavailable

26

BOLT, WITH WASHER

90119-08187-00

$3.17

27

PIPE

67X-14419-00-00

$133.32

28

PIPE, SILENCER

67X-1441J-00-00

Unavailable

29

CLAMP, HOSE

90460-99M23-00

Unavailable
