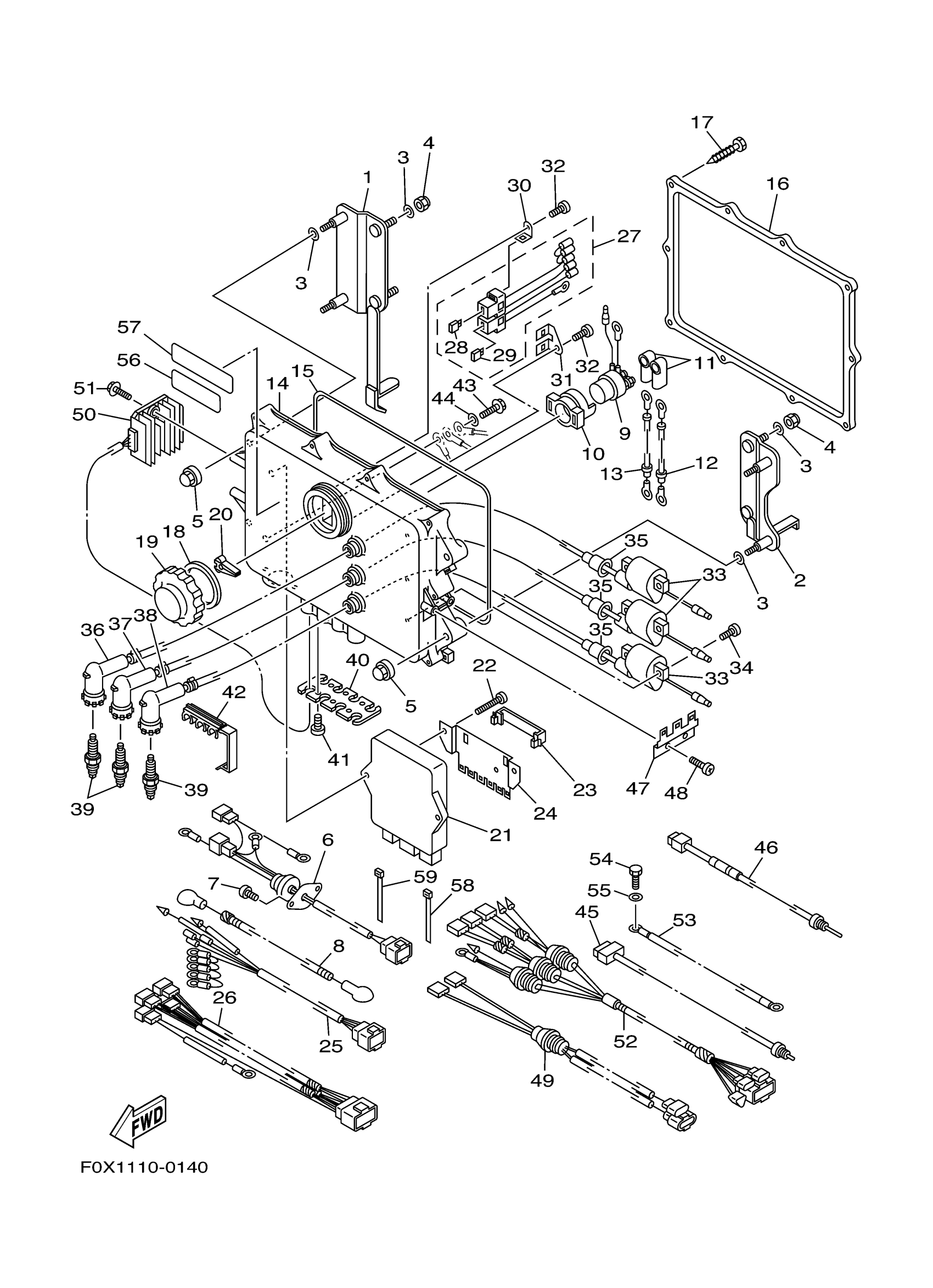

Yamaha GP1200AY (GP1200) F0X1 2000 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

F0X-6815D-00-00

Unavailable

2

BRACKET, ERECTRIC BOX 2

F0X-6815E-00-00

$121.20

3

WASHER

9299R-08200-00

$1.82

4

NUT, NYLON (6J8)

95780-08300-00

$10.55

5

NUT

90179-08978-00

$6.36

6

LEAD WIRE ASSY

66V-81315-00-00

$213.62

7

SCREW, TAPPING

97780-60425-00

Unavailable

8

WIRE, LEAD

67X-82117-00-00

Unavailable

9

STARTER RELAY ASSY

6G1-81941-10-00

$65.25

10

HOLDER, RELAY

6M6-81952-01-00

Unavailable

11

COVER, LEAD WIRE

66V-82119-00-00

$2.27

12

WIRE, LEAD

67X-82117-10-00

Unavailable

13

WIRE, LEAD

67X-82117-20-00

$130.29

14

HOUSING

66V-8552A-00-00

$216.65

15

GASKET, TERMINAL

66V-81921-00-00

$23.47

16

COVER, CASE

66V-8552E-00-00

$81.80

17

SCREW, TAPPING

97780-60430-00

Unavailable

18

. GASKET

66V-81844-00-00

Unavailable

19

. CAP

66V-8132W-00-00

$11.85

20

. PULLER, FUSE

67F-2812A-00-00

$4.11

21

C.D.I. UNIT ASSY

66V-85540-00-00

$645.44

22

SCREW, TAPPING

97780-60530-00

Unavailable

23

CLAMP, HARNESS

66V-83919-00-00

$6.36

24

BRACKET 1

66V-83955-00-00

$15.89

25

LEAD WIRE ASSY

66V-85515-00-00

$133.32

26

WIRE, LEAD

66V-83553-00-00

$151.50

27

FUSE HOLDER ASSY

66V-82150-00-00

Unavailable

28

FUSE

5JJ-82151-20-00

Unavailable

29

. FUSE (10A)

67F-82151-40-00

$6.07

30

STAY, FUSE BOX

66V-82171-00-00

$8.32

31

STAY, FUSE HOLDER

66V-82153-00-00

$8.32

32

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

33

IGNITION COIL ASSY

66V-85570-00-00

$143.92

34

SCREW, TAPPING(65J)

97780-60625-00

$2.64

35

GROMMET

66V-82355-00-00

Unavailable

36

HIGH TENSION CORD ASSY 1

66V-82340-01-00

Unavailable

37

HIGH TENSION CORD ASSY 1

66V-82340-11-00

Unavailable

38

HIGH TENSION CORD ASSY 1

67X-82340-21-00

Unavailable

39

BR8ES-11 NGK 4PK

BR8-ES110-00-00

$5.02

40

COVER

66V-85525-00-00

$7.27

41

SCREW, TAPPING

97780-60425-00

Unavailable

42

CLAMP, CORD

65U-81317-10-00

$7.27

43

BOLT(GH1)

97080-06012-00

$2.56

44

WASHER, PLAIN (646)

92990-06600-00

Unavailable

45

THERMOSENSOR ASSY

66V-WS857-00-00

Unavailable

46

SENSOR, EXT, TEMP.

66V-85881-00-00

$280.29

47

BRACKET

66V-85542-00-00

$4.55

48

SCREW, PANHEAD TAPPING (J20)

97780-60116-00

Unavailable

49

WIRE, SUB LEAD

66V-82509-00-00

$128.77

50

RECTIFIER & REGULATOR ASSY

66V-81960-00-00

Unavailable

51

SCREW, TAPPING

97780-60425-00

Unavailable

52

EXTENSION, WIRE LEAD

67X-82553-00-00

$313.62

53

WIRE, LEAD 2

66V-82127-00-00

Unavailable

54

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

55

WASHER, PLAIN (646)

92990-06600-00

Unavailable

56

MARK 3

6R7-83623-40-00

$7.27

57

PLATE, EPA

66V-2179X-01-00

Unavailable

58

CLAMP(6E8)

90465-13M39-00

Unavailable

59

CLAMP

90465-11M52-00

$3.52
