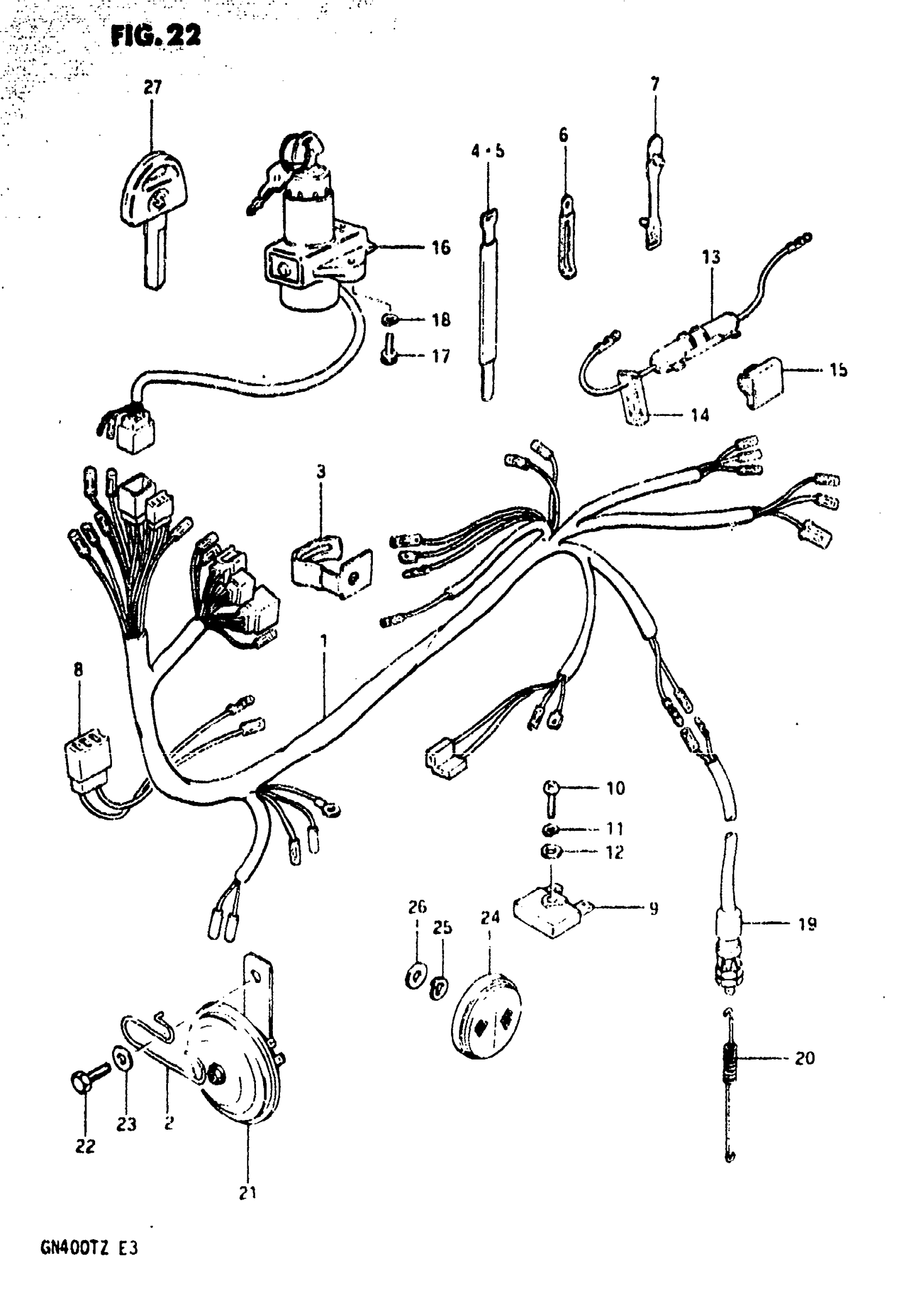

Suzuki GN400T (1982) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-37340

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 36619-37300.

36619-05300

Unavailable

3

CALMP This part replaces 36650-33200.

36650-33201

Unavailable

4

CLAMP This part replaces 09407-18301.

09407-18302

$2.27

5

CLAMP (L:140)

09407-14401

$4.10

6

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.76

6

CLAMP This part replaces 09404-06412.

09404-06039

$1.73

7

CLIP

09407-05403

$2.58

8

LEAD WIRE, DC LIGHTING

36853-37220

Unavailable

9

DIODE This part replaces 32800-19063.

32800-16A00

$21.12

10

SCREW This part replaces 02112-05208.

02112-05207

$1.97

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

12

WASHER This part replaces 08322-21058.

08322-01057

$1.86

13

FUSE CASE ASSY | Includes Item(s) 14 This part replaces 36740-15010.

36740-15011

$8.83

14

FUSE (15A)

09481-15001

$2.07

15

HOLDER

36791-46700

$6.22

16

SWITCH ASSY, IGNITION | Includes Item(s) 17 - 18

37100-37301

Unavailable

17

BOLT This part replaces 37152-47010.

07130-0616B

$2.38

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

19

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$18.06

20

SPRING

09443-06011

$3.70

21

HORN ASSY

38500-37310

Unavailable

22

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

23

WASHER This part replaces 08322-11088.

08322-01087

$1.86

24

REFLEX REFLECTOR, FRONT

35950-49080

$16.24

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

26

WASHER This part replaces 08322-21058.

08322-01057

$1.86

27

KEY, BLANK | OPT

37146-47010

$17.31
