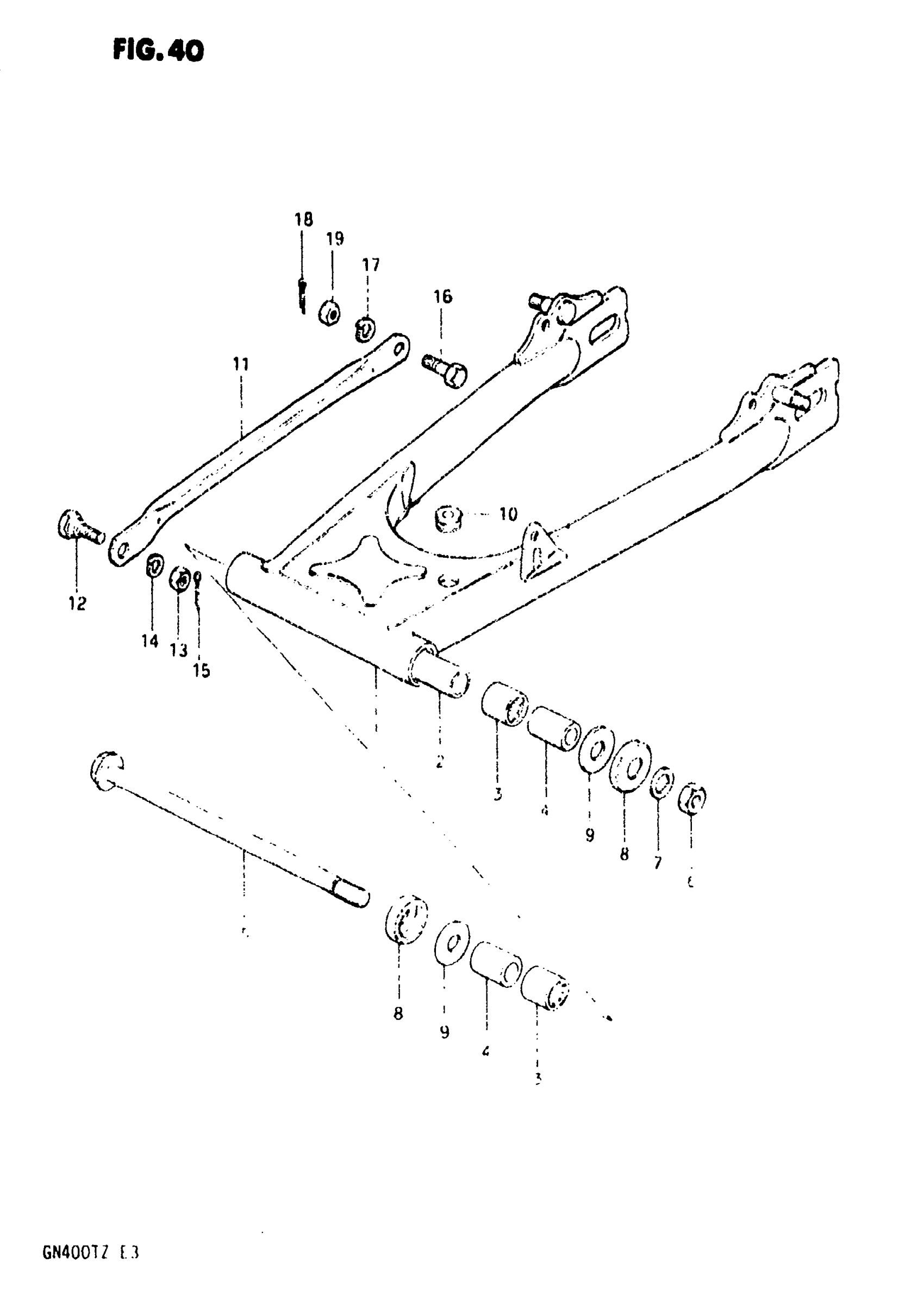

Suzuki GN400T (1982) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61100-37840-019

Unavailable

2

SPACER

09180-16022

Unavailable

3

BEARING

09263-22017

$20.38

4

SPACER, PIVOT This part replaces 61251-37300.

61251-38B00

$14.48

5

SHAFT, PIVOT

61211-37301

Unavailable

6

NUT This part replaces 08319-21168.

08319-2116A

$9.78

7

WASHER This part replaces 08322-11167.

08322-01167

$2.43

8

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

$10.97

9

WASHER

08211-16341

$3.05

10

CUSHION

09320-08020

$3.70

11

NO DESCRIPTION AVAILABLE This part replaces 64311-31001-019.

64311-31001-13L

Unavailable

12

BOLT, FRONT

09111-08012

$4.12

13

NUT, FRONT

09140-08008

$1.45

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

16

BOLT, REAR

09101-10003

Unavailable

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

19

NUT This part replaces 08310-11108.

08310-00107

$2.19
