1982 Suzuki GN400T Front Brake Hose Diagram

← All diagrams

Find the part on the Front Brake Hose diagram for your 1982 Suzuki GN400T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

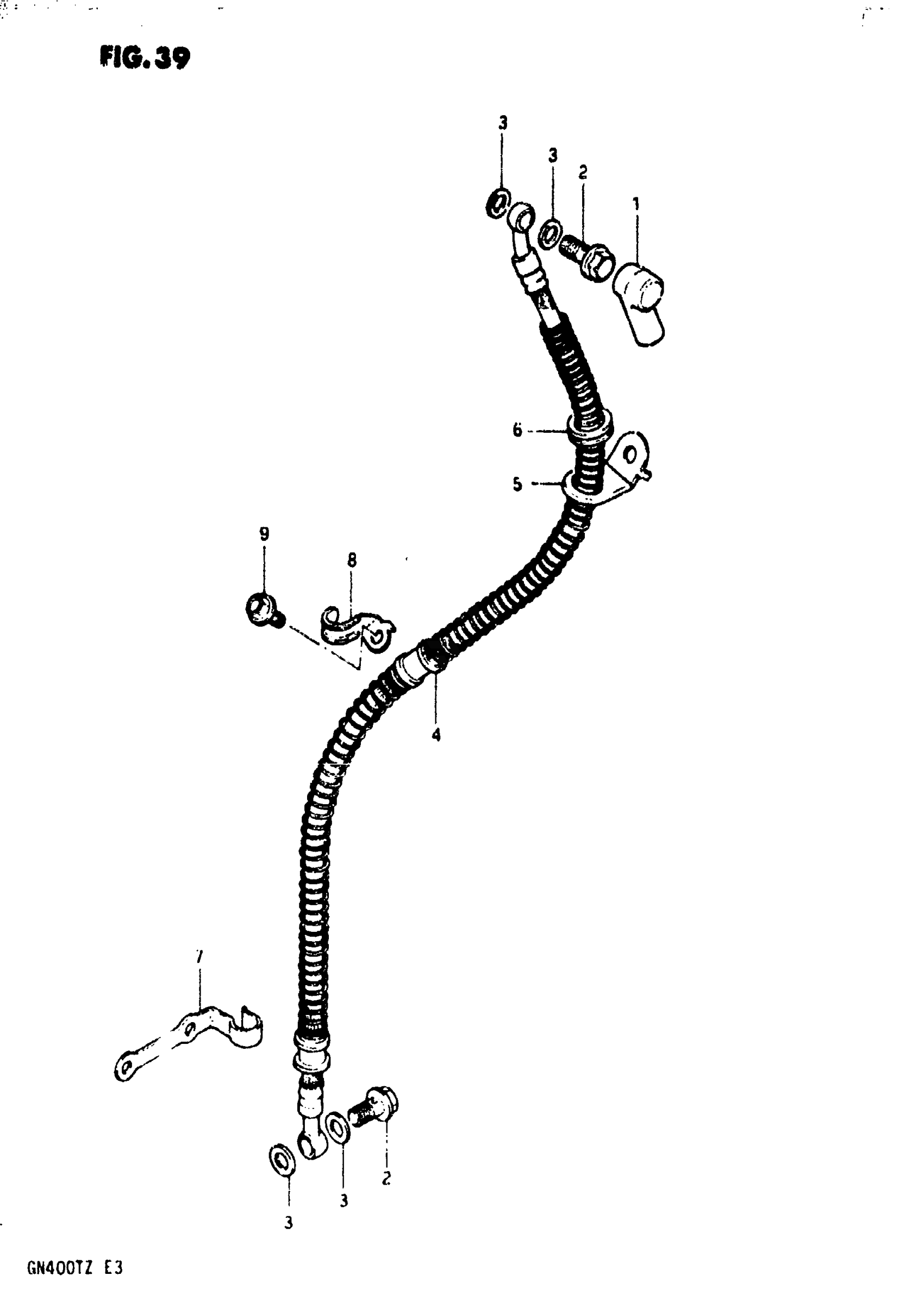

1982 Suzuki GN400T Front Brake Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOOT, MASTER CYLINDER

59711-49001

1
Out of stock

2

UNION This part replaces 09360-10007.

09360-10017

2
Out of stock

3

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

4
Out of stock

4

HOSE,FRONT BRAK This part replaces 59480-37360.

59480-37362

1
Out of stock

5

GUIDE, HOSE NO.1

59243-31000

1
Out of stock

6

GROMMET This part replaces 09308-14007.

09308-14009

1
Out of stock

7

GUIDE, HOSE NO.2

59268-49001

1
Out of stock

8

GUIDE

59246-11400

1
Out of stock

9

BOLT This part replaces 01517-06108.

01550-06107

1
Out of stock
