1988 Suzuki GN250 Cylinder Head Diagram

← All diagrams

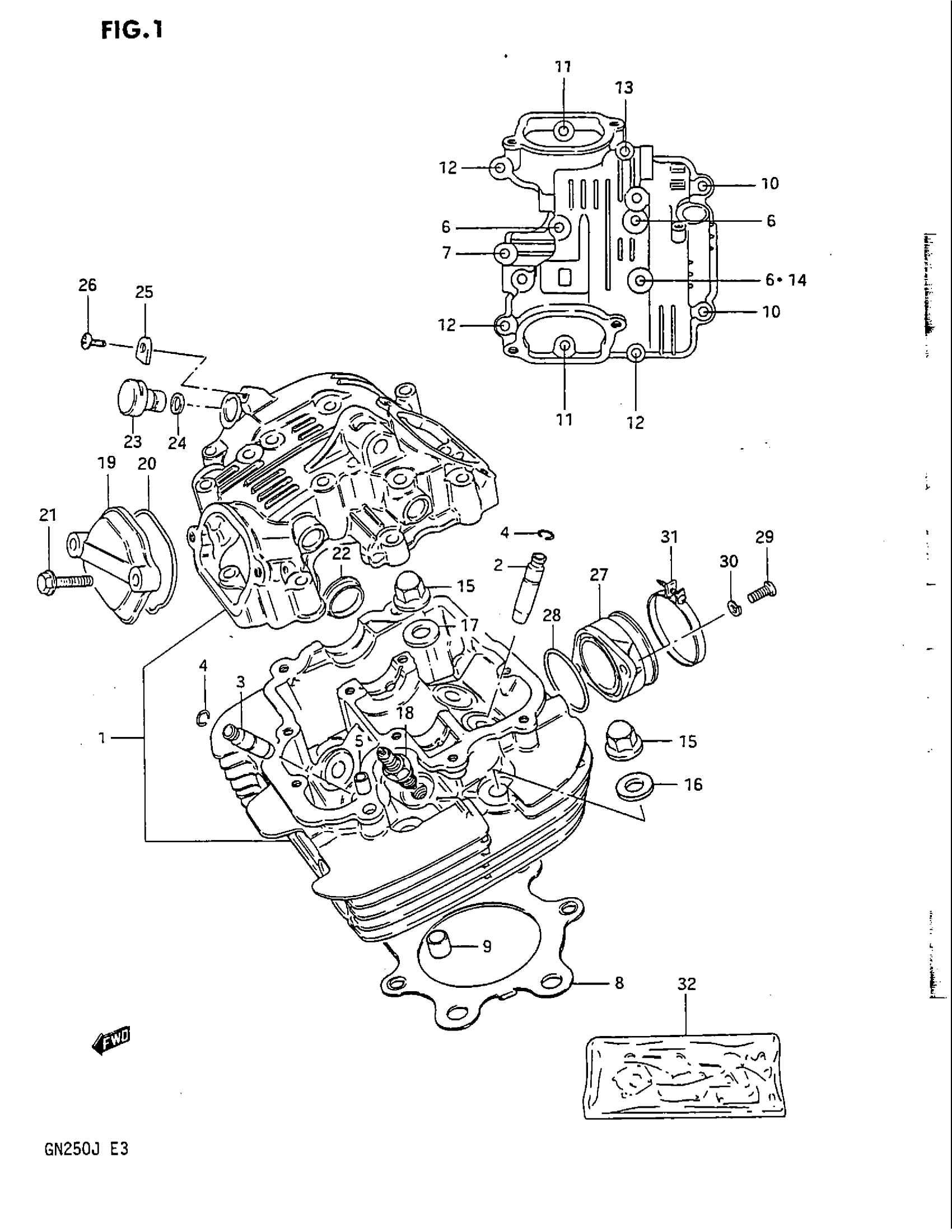

Find the part on the Cylinder Head diagram for your 1988 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki GN250 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLIN | MODEL F This part replaces 11100-38301.

11100-38204

1
Out of stock

1

HEAD ASSY,CYLIN | MODEL J; Includes Item(s) 2 - 7 This part replaces 11100-38202.

11100-38204

1
Out of stock

2

GUIDE, IN VALVE

11115-38270

2
Out of stock

3

GUIDE, VALVE (0S:0.3)

11115-05270

2
Out of stock

4

.RING (10X85)

09381-10004

4
Out of stock

5

PIN

09206-08001

2
Out of stock

6

BOLT This part replaces 01517-06608.

01550-06607

3
Out of stock

7

BOLT This part replaces 01517-06307.

01550-06307

1
Out of stock

8

GASKET, CYLINDER HEAD This part replaces 11141-38200.

11141-25D11

1
Out of stock

9

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

10

BOLT (6X115)

09103-06052

2
Out of stock

11

BOLT This part replaces 01517-06307.

01550-06307

2
Out of stock

12

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

3
Out of stock

13

BOLT This part replaces 01517-06608.

01550-06607

1
Out of stock

14

WASHER

09168-06023

1
Out of stock

15

NUT

09159-10026

4
Out of stock

16

WASHER

09160-10039

2
Out of stock

17

GASKET

09168-10017

2
Out of stock

18

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

1
Out of stock

18

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

1
Out of stock

19

CAP, INSPECTION This part replaces 11175-38201.

11175-38202

2
Out of stock

20

O RING

09280-55003

2
Out of stock

21

BOLT This part replaces 01517-06258.

01550-06257

4
Out of stock

22

PLUG, HEAD

09241-30004

1
Out of stock

23

PLUG, HOLE

26442-45000

1
Out of stock

24

SEAL BAND

26451-45000

1
Out of stock

25

PLATE

26449-33000

1
Out of stock

26

SCREW

09128-05101

1
Out of stock

27

PIPE, INTAKE

13110-38200

1

$45.62

In stock

28

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

1
Out of stock

29

SCREW

02112-06167

2
Out of stock

30

2

$2.28

In stock

31

CLAMP | MODEL F

09402-52306

1
Out of stock

31

CLAMP | MODEL J This part replaces 09402-52207.

09402-52208

1
Out of stock

32

GASKET SET | OPT This part replaces 11400-38824.

11401-38820

1
Out of stock
