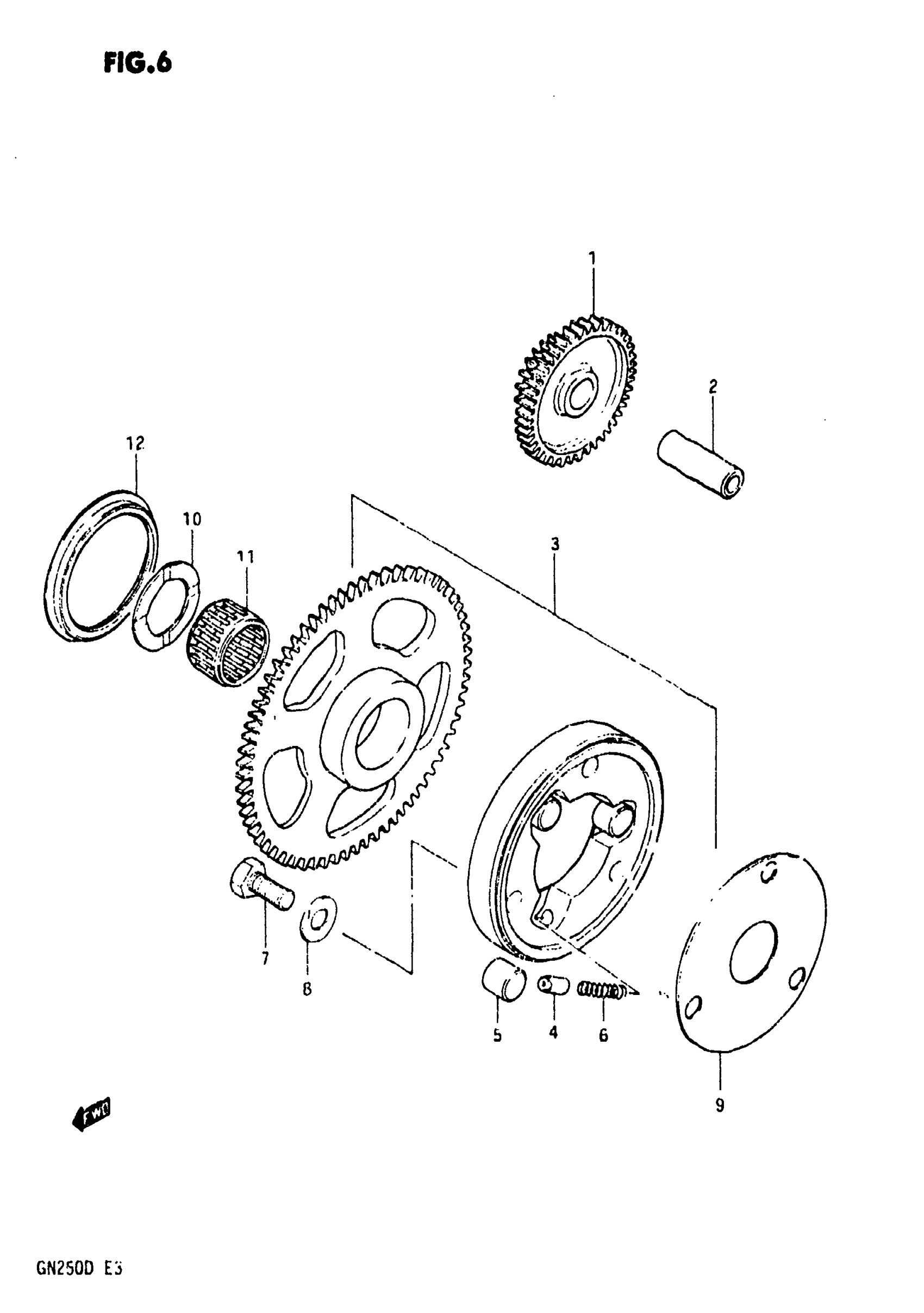

Suzuki GN250 (1983) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE This part replaces 12611-38300.

12611-38301

$93.87

2

PIN

09206-13007

$17.38

3

CLUTCH SET, STARTER | Includes Item(s) 4 - 6 This part replaces 12600-38812.

12600-38815

$290.08

4

PIECE, PUSH

12633-31000

$8.27

5

ROLLER

09261-14001

$5.00

6

SPRING

09440-04015

$2.24

7

BOLT This part replaces 09100-08200.

01500-0820A

$2.87

8

WASHER

08211-08221

$2.67

9

SHIM

12649-49300

$20.33

10

WASHER

09160-27005

$14.07

11

BEARING

09263-27004

$36.03

12

OIL SEAL This part replaces 09289-52001.

09289-52002

$34.08
