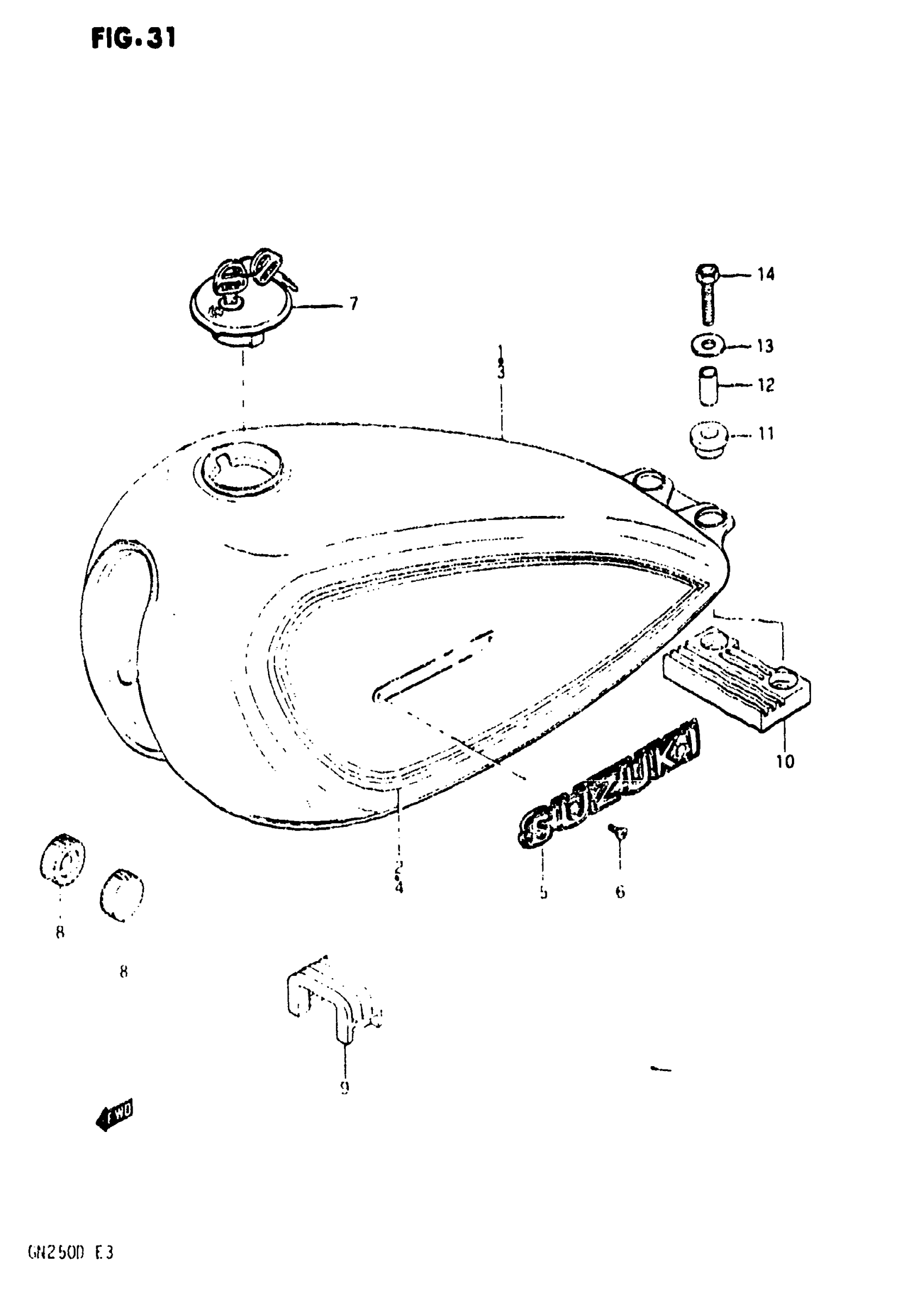

Find the part on the Fuel Tank diagram for your 1983 Suzuki GN250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GN250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 44100-38320-00J.

44100-38321-00J

1
Out of stock

2

TAPE SET, FUEL TANK

68110-38320-69K

1
Out of stock

3

TANK, FUEL (BLUE) | Includes Item(s) 4

44100-38320-08D

1
Out of stock

4

TAPE SET, FUEL TANK

68110-38320-67N

1
Out of stock

5

EMBLEM

68111-37300

2
Out of stock

6

SCREW This part replaces 02132-03065.

02122-0306B

4
Out of stock

7

CAP SET,FUEL TA This part replaces 44200-30516-KEY.

44200-30832

1
Out of stock

8

CUSHION, FRONT

09329-10016

2

$3.00

In stock

9

CUSHION, UPPER FRONT

44541-38200

1
Out of stock

10

CUSHION, UPPER REAR

44542-38300

1
Out of stock

11

CUSHION REAR, NO.2

09320-10022

2
Out of stock

12

SPACER

09180-06067

2
Out of stock

13

WASHER This part replaces 09160-06012.

09160-06054

2
Out of stock

14

BOLT This part replaces 09100-06033.

64455-07L00

2
Out of stock
