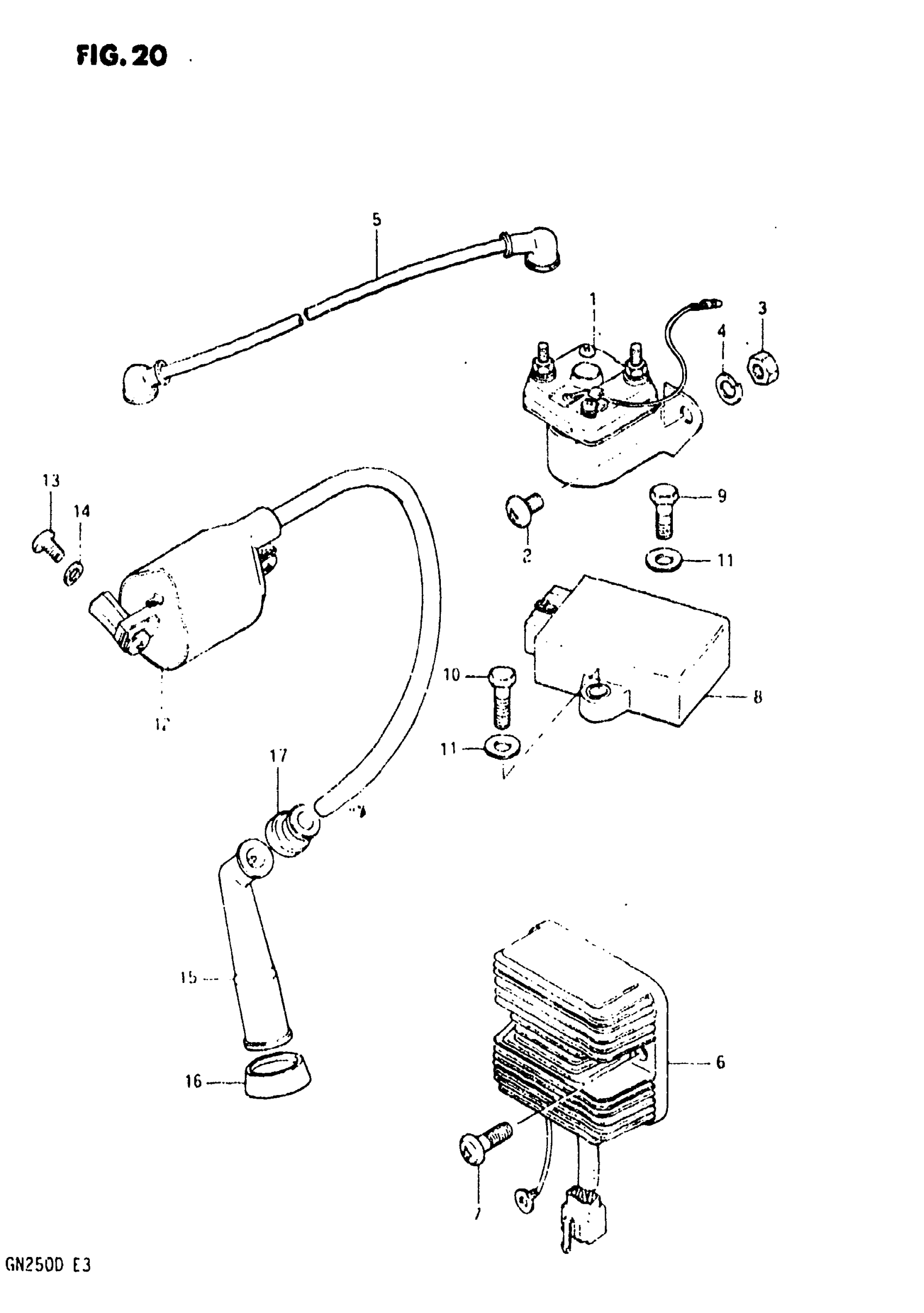

Suzuki GN250 (1983) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$69.94

2

SCREW This part replaces 02112-06108.

02112-06107

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$1.91

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

5

LEAD WIRE, STARTING MOTOR This part replaces 33850-05300.

33850-05301

Unavailable

6

RECTIFIER, REGULATOR This part replaces 32800-05300.

32800-05320

Unavailable

7

FRM CVR,SCREW(6 This part replaces 09128-06011.

09128-06092

$1.91

8

IGNITER UNIT ASSY

32900-38300

Unavailable

9

BOLT This part replaces 01107-06208.

01500-06207

$2.06

10

BOLT This part replaces 01107-06258.

01500-06257

$2.01

11

WASHER This part replaces 08322-21068.

08322-01067

$1.94

12

COIL ASSY,IGNIT This part replaces 33410-38300.

33410-38301

$137.77

13

SCREW This part replaces 02112-05108.

02112-05107

$1.46

14

WASHER This part replaces 08322-21058.

08322-01057

$1.93

15

CAP, SPARK PLUG

33510-45010

$24.59

16

SEAL, SPARK PLUG

33541-38210

$4.60

17

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15
