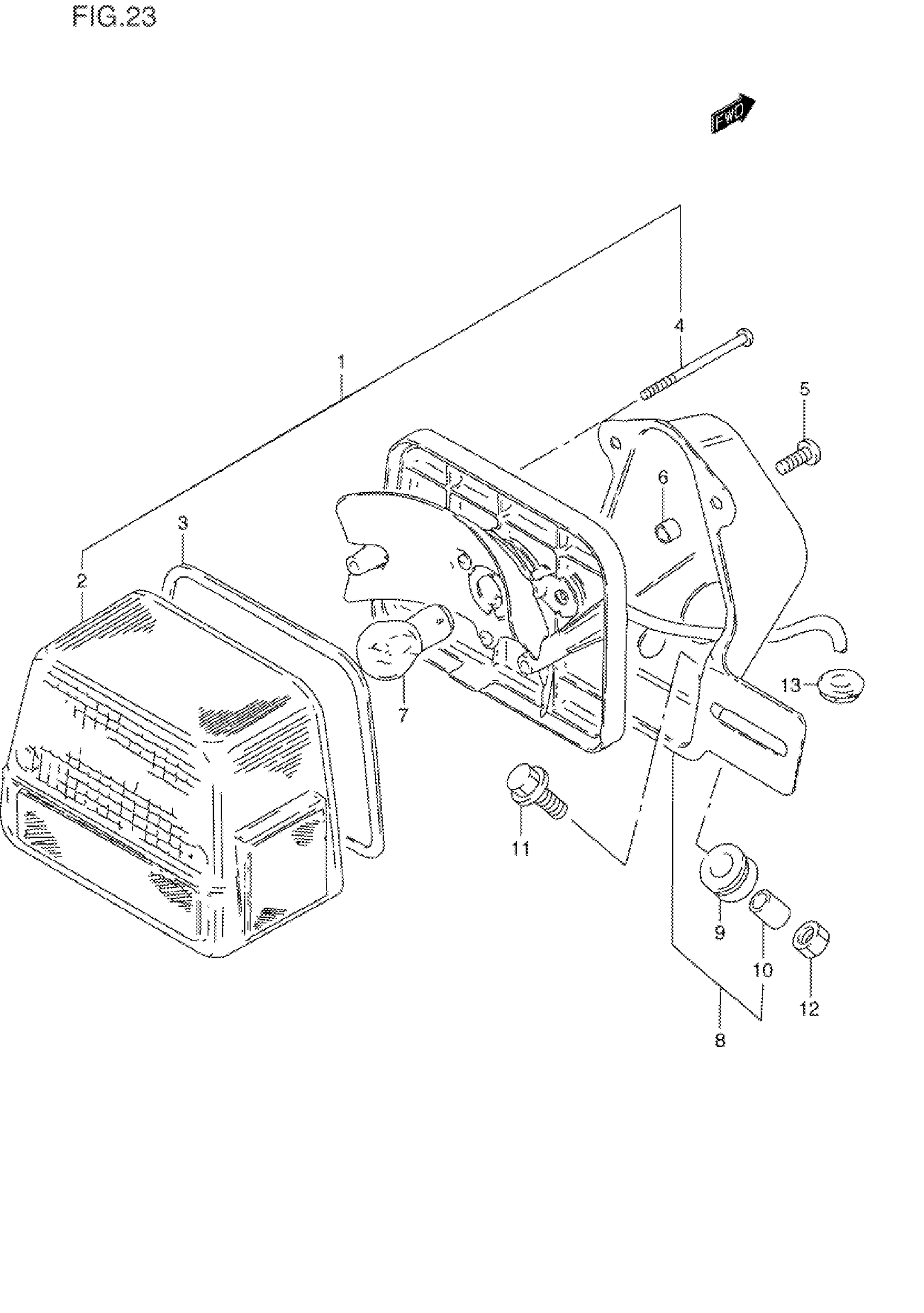

Suzuki GN125EV (1997) REAR COMBINATION Diagram

#

Description
Price

1

LAMP UNIT, REAR COMBINATION | Includes Item(s) 2 - 6

35720-38330-999

Unavailable

2

LENS

35712-49130

Unavailable

3

GASKET

35713-49130

Unavailable

4

SCREW

35723-44130

$2.50

5

SCREW

02112-05167

$2.01

6

SPACER

35766-39210

Unavailable

7

BULB (12V,23/8W)

09471-12035

$4.26

8

BRACKET ASSY | Includes Item(s) 9 - 10

35730-49130

Unavailable

9

CUSHION

35765-22210

$3.79

10

SPACER

35766-37120

Unavailable

11

BOLT

09116-06093

$2.65

12

NUT This part replaces 08310-00063.

08310-0006A

$1.89

13

GROMMET, LEAD WIRE

09308-09004

Unavailable
