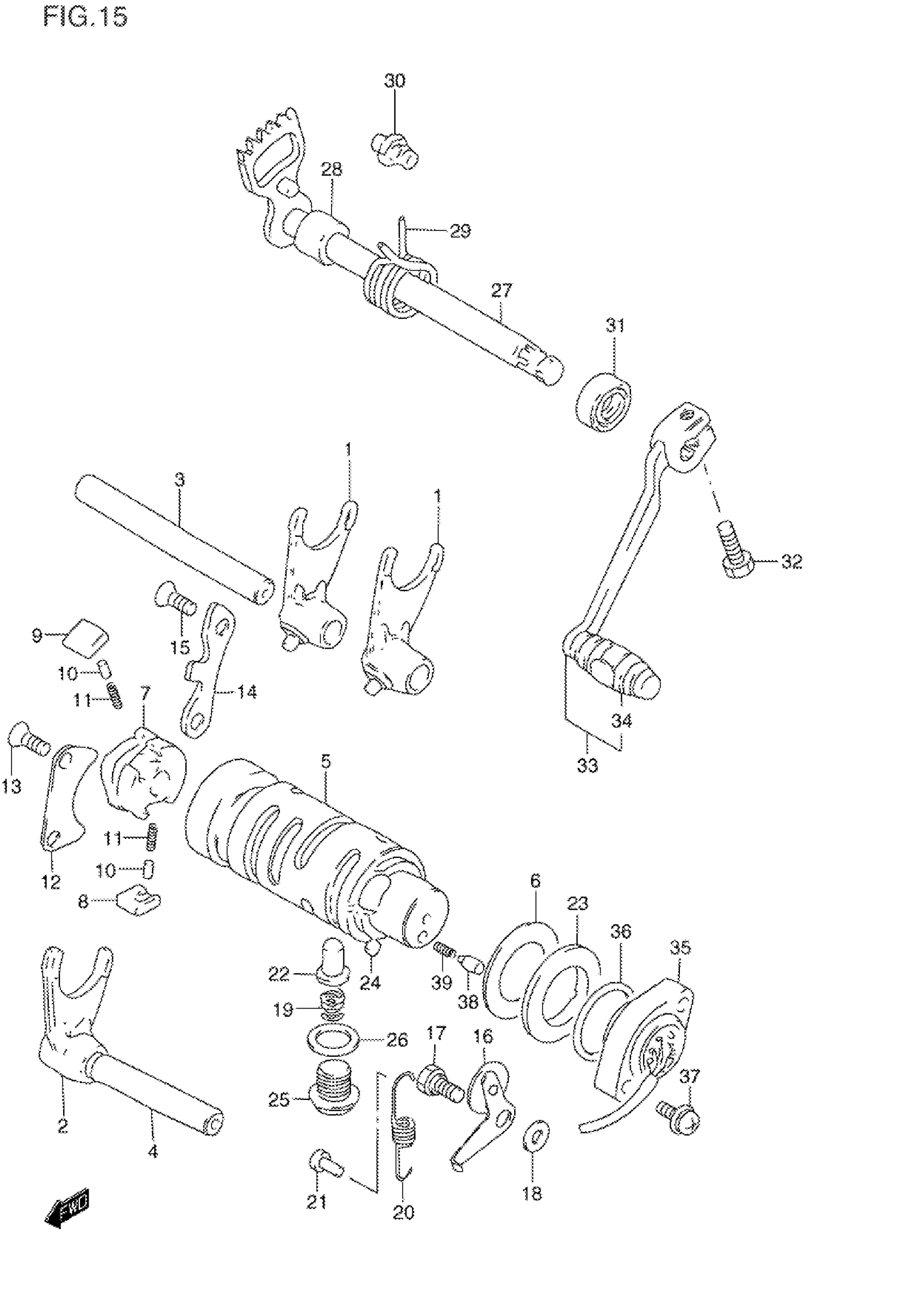

Suzuki GN125EV (1997) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.2

25221-08300

Unavailable

2

FORK, GEAR SHIFT NO.3

25231-05201

Unavailable

3

SHAFT, FORK (1)

25411-05201

Unavailable

4

SHAFT, NO.1 This part replaces 25421-35403.

25421-35410

$26.50

5

NO DESCRIPTION AVAILABLE This part replaces 25310-05300.

25310-05330

Unavailable

6

WASHER, SUB T/M DRIVE This part replaces 08211-25401.

09181-25251

$1.26

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31302.

25322-31310

$30.40

8

PAWL, GEAR SHIFT NO.1

25323-34201

$6.91

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.11

10

PIN

09261-05003

$1.69

11

SPRING

09440-04003

$1.52

12

LIFTER, GR SHIFT POLE

25331-30001

Unavailable

13

SCREW This part replaces 02122-06123.

02122-0612A

$1.46

14

GUIDE, GEAR SHIFT CAM

25341-05200

Unavailable

15

SCREW This part replaces 02122-06123.

02122-0612A

$1.46

16

STOPPER, GEAR SHIFT CAM

25350-44A00

Unavailable

17

BOLT

09111-06054

$4.02

18

WASHER

08211-06141

$1.66

19

SPRING

09440-11016

Unavailable

20

SPRING

09443-08044

Unavailable

21

HOOK

09223-04001

$1.83

22

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$13.50

23

PLATE, GEAR SHIFT CAM STOPPER

25381-45400

$23.08

24

PIN

04221-04069

$2.30

25

PLUG, CAM STOPPER

09247-14026

$3.49

26

WASHER (13.8X18.8X0.4)

09168-14002

$2.83

27

SHAFT, GEAR SHIFTING

25510-05201

$101.80

28

SPACER (12X20X15.3)

09180-12068

$2.63

29

SPRING

09444-26013

$2.94

30

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.28

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.87

32

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.82

33

LEVER ASSY | Includes Item(s) 34

25600-05320

Unavailable

34

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.58

35

BODY, SWITCH

37720-44700

$103.28

36

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.38

37

SCREW This part replaces 02112-75203.

02112-7520A

$3.17

38

CONTACT

09209-05011

$2.02

39

SPRING

09440-04010

$1.52
