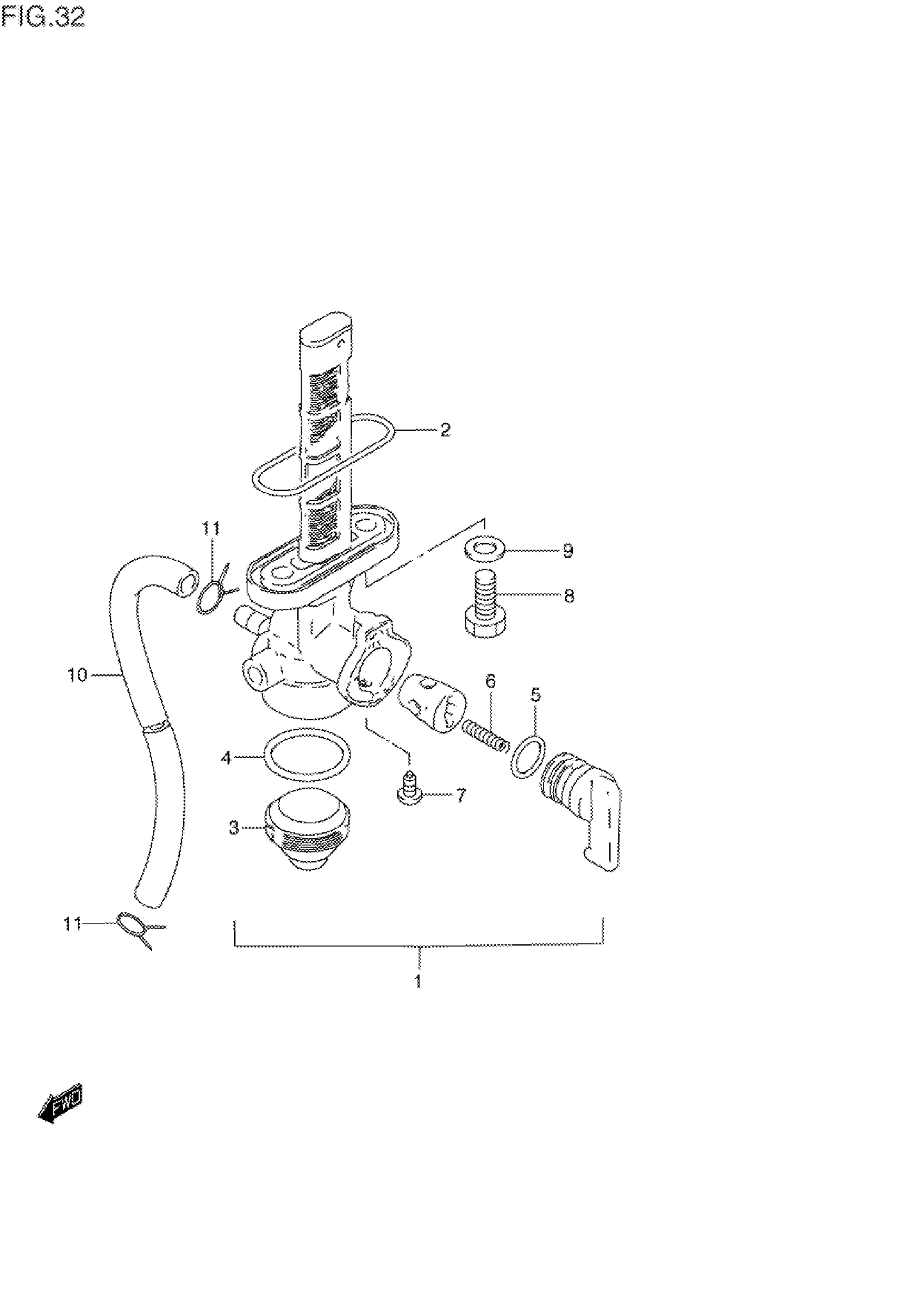

Suzuki GN125EV (1997) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 7 This part replaces 44300-22075.

44300-22077

$52.80

2

FUEL COCK O RIN This part replaces 44348-28070.

44348-28071

$4.84

3

CUP

44347-28071

$10.15

4

O-RING This part replaces 44346-28070.

44346-28071

$2.35

5

GASKET, LEVER

44353-12C01

$7.11

6

SPRING

44357-32470

$2.22

7

SCREW

44343-41370

$2.50

8

SCREW

09128-06057

$1.70

9

GASKET

09168-06026

$2.88

10

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$9.48

11

CLIP

09401-08401

$1.52
