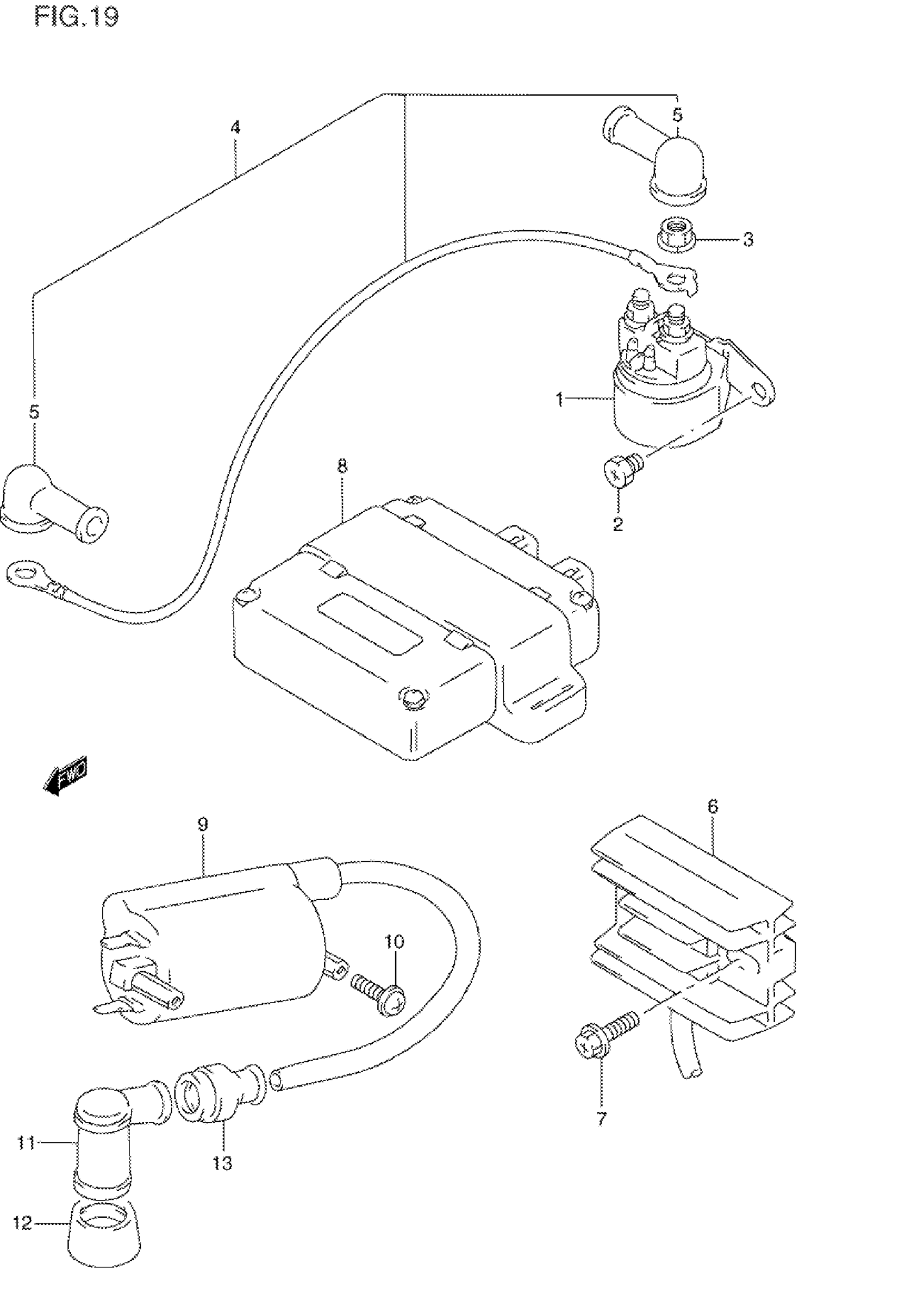

Suzuki GN125EV (1997) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$92.64

2

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.43

3

NUT This part replaces 08361-35068.

08361-3506A

$1.88

4

LEAD WIRE, STARTING MOTOR | Includes Item(s) 5

33850-05301

Unavailable

5

CAP, TERMINAL

31861-31500

Unavailable

6

RECTIFIER, REGULATOR

32800-29B00

$309.67

7

SCREW

02112-06207

$1.83

8

IGNITER UNIT

32900-05300

Unavailable

9

COIL, IGNITION

33410-05350

$152.47

10

SCREW This part replaces 02142-05103.

02142-0510B

$1.82

11

CAP, SPARK PLUG This part replaces 33510-22010.

33510-97313

$14.10

12

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.50

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15
