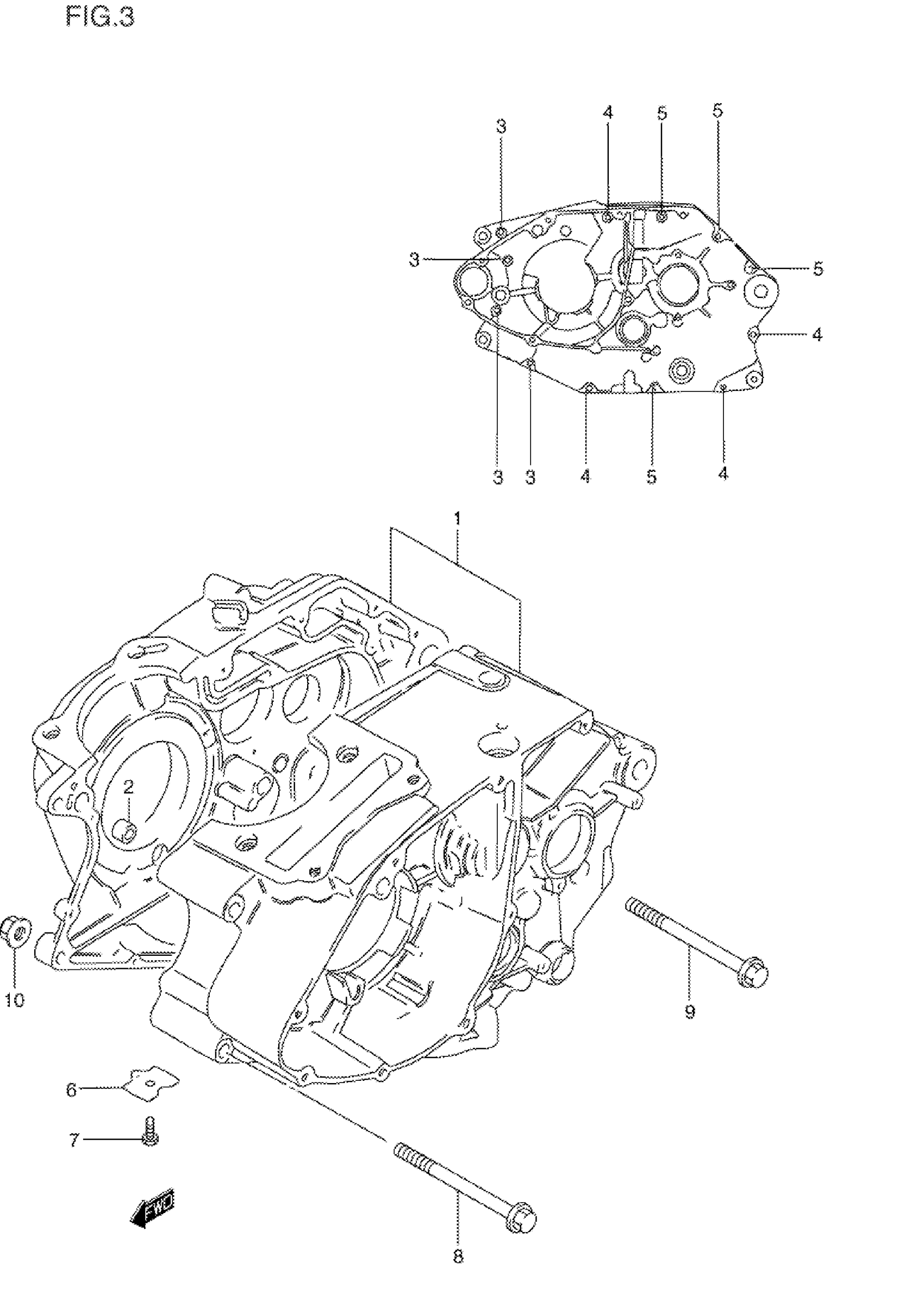

Suzuki GN125EV (1997) CRANKCASE Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 11300-05303.

11300-05304

Unavailable

2

PIN

04211-13189

$2.25

3

BOLT (6X55)

01547-06557

$2.42

4

BOLT (6X60)

01547-06607

$3.47

5

BOLT,CARB This part replaces 01547-06757.

09103-06522

$3.20

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.80

7

BOLT This part replaces 01500-06103.

01500-0610B

$1.89

8

BOLT (8X80)

09103-08016

$32.38

9

BOLT (8X88)

09103-08010

$34.43

10

NUT

08319-31087

$2.38
