Partiron

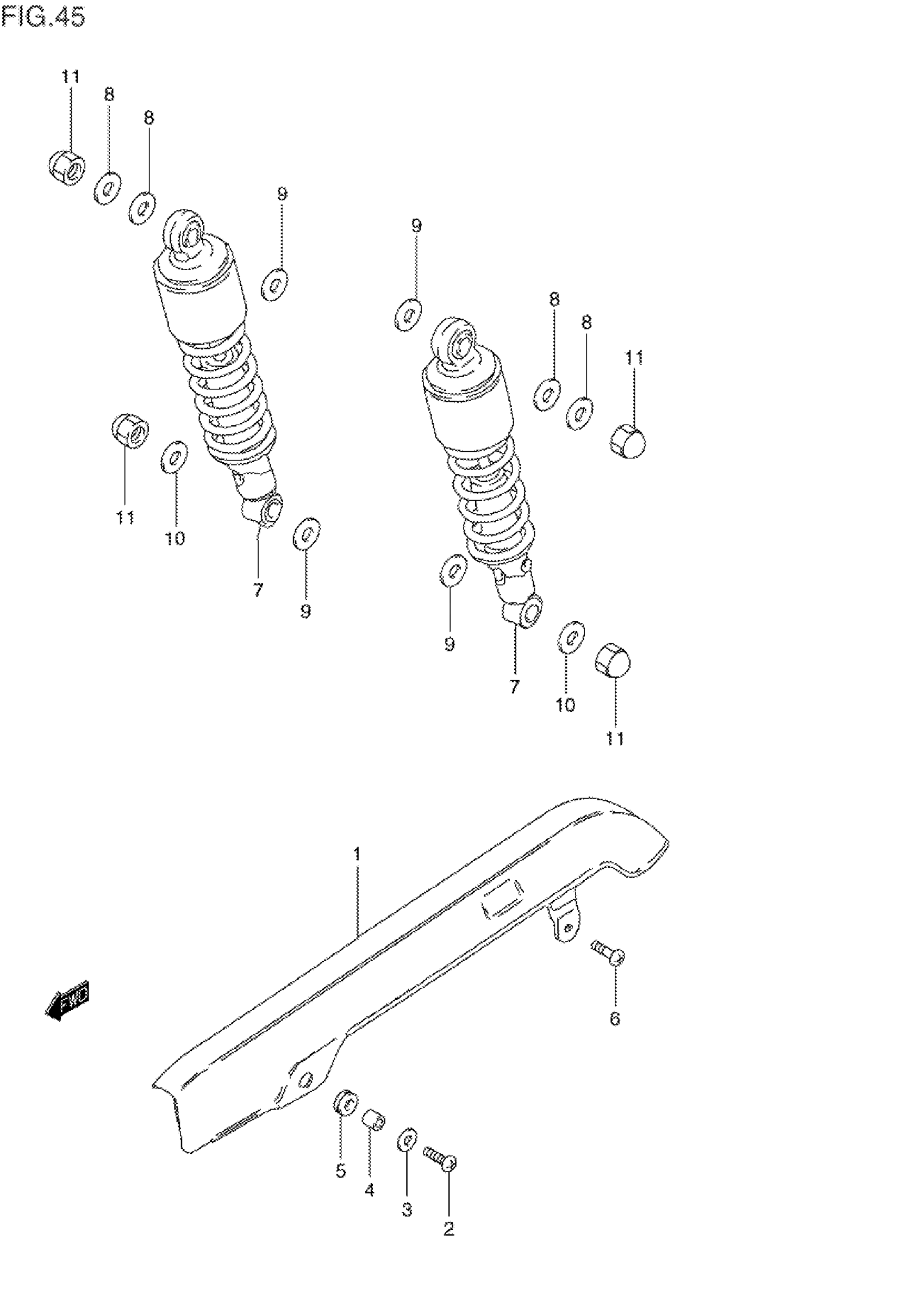

Suzuki GN125EV (1997) CHAIN CASE Diagram

#

Description
Price

1

CASE, CHAIN

61310-05301

Unavailable

2

SCREW This part replaces 02112-36163.

02112-3616A

$2.03

3

WASHER

09160-06077

$1.97

4

SPACER

09180-06259

$2.55

5

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.74

6

SCREW This part replaces 02112-36163.

02112-3616A

$2.03

7

ABSORBER ASSY, REAR SHOCK

62100-05330

Unavailable

8

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10127.

09160-10093

$2.19

9

WASHER (12.5X26X1.6) This part replaces 09160-12090.

09160-12089

$2.06

10

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10127.

09160-10093

$2.19

11

NUT

08313-10107

$2.62
