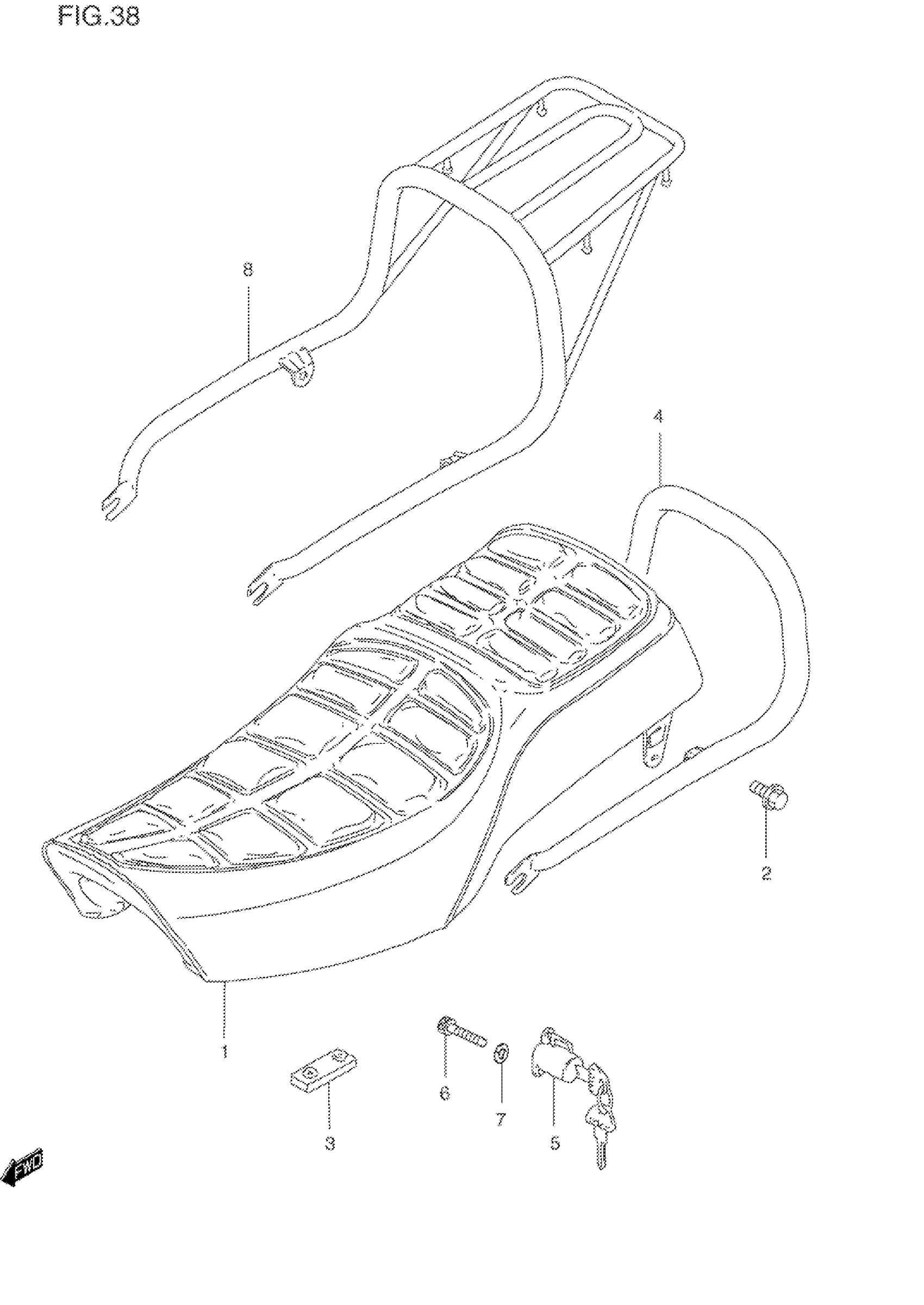

Suzuki GN125ET (1996) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | MODEL M/N/P/R This part replaces 45100-05320-48H.

45100-05321-48H

Unavailable

1

SEAT ASSY (BLACK) | MODEL S/T

45100-05321-48H

Unavailable

2

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

$2.38

2

BOLT (8X16) | MODEL R/S/T This part replaces 01550-08163.

01550-0816A

$2.38

3

CUSHION

09321-08009

$2.90

4

HANDLE, PILLION RIDER

46210-05300

Unavailable

5

LOCK SET, HELMET | MODEL M This part replaces 95700-37400-KEY.

95700-37810

Unavailable

5

LOCK SET, HELMET | MODEL N/P/R/S/T

95700-37810

Unavailable

6

BOLT, NO.3 | MODEL M/N/P This part replaces 09106-06024.

07130-0610B

$1.23

6

BOLT | MODEL R/S This part replaces 09139-06069.

09139-06075

Unavailable

6

BOLT | MODEL T

09139-06075

Unavailable

7

LOCK WASHER | MODEL M/N/P This part replaces 08321-21067.

08321-01067

$1.89

8

CARRIER, SPORTS | OPT

46310-05300

Unavailable
