1996 Suzuki GN125ET Fuel Tank Diagram

← All diagrams

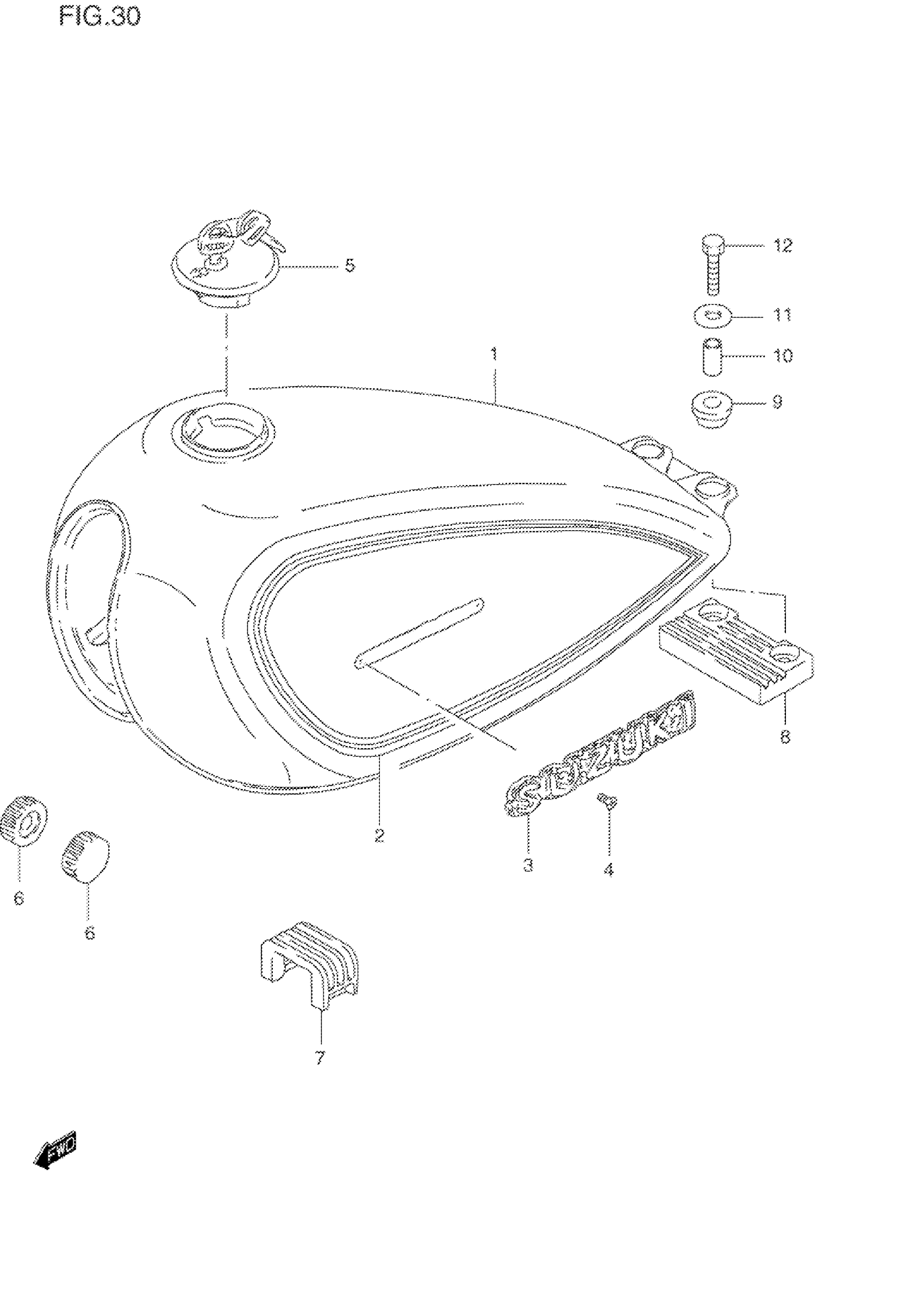

Find the part on the Fuel Tank diagram for your 1996 Suzuki GN125ET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GN125ET Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-38320-12F.

44110-38302-YD8

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 44100-38320-13Z.

44100-38321-13Z

1
Out of stock

1

TANK ASSY, FUEL | MODEL M This part replaces 44100-38320-24D.

44100-38321-24D

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 44100-38320-19A.

44100-38390-19A

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL R/S/T This part replaces 44100-38321-19A.

44100-38390-19A

1
Out of stock

1

TANK ASSY, FUEL (RED) | MODEL N/PCALIFORNIA ONLY This part replaces 44100-38360-19A.

44100-38361-19A

1
Out of stock

1

TANK ASSY, FUEL (RED) | MODEL R/S/TCALIFORNIA ONLY; Includes Item(s) 2 - 2

44100-38361-19A

1
Out of stock

2

TAPE SET, FUEL TANK | FOR 12F

68110-38320-67N

1
Out of stock

2

TAPE SET, FUEL TANK | FOR 019,24D

68110-38320-69K

1
Out of stock

2

TAPE SET, FUEL TANK | FOR 19A

68110-38320-G29

1
Out of stock

3

EMBLEM

68111-37300

2
Out of stock

4

SCREW | MODEL M/N/P This part replaces 02132-03065.

02122-0306B

4
Out of stock

4

SCREW | MODEL R/S/T This part replaces 02122-03063.

02122-0306B

4
Out of stock

5

1

$105.35

In stock

5

CAP, FUEL | CALIFORNIA ONLY

44200-14830

1
Out of stock

6

CUSHION, FRONT

09329-10016

2
Out of stock

7

CUSHION, UPPER FRONT

44541-05300

1
Out of stock

8

CUSHION, UPPER REAR

44542-38300

1
Out of stock

9

CUSHION REAR, NO.2

09320-10022

2

$2.92

In stock

10

SPACER

09180-06067

2

$2.82

In stock

11

WASHER | MODEL R/S/T

09160-06054

2

$1.73

In stock

12

2

$1.75

In stock
